Canyon Strive CF 7.0 2019

MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm
Canyon Strive CF 7.0 2019

About the Canyon Strive CF 7.0 2019

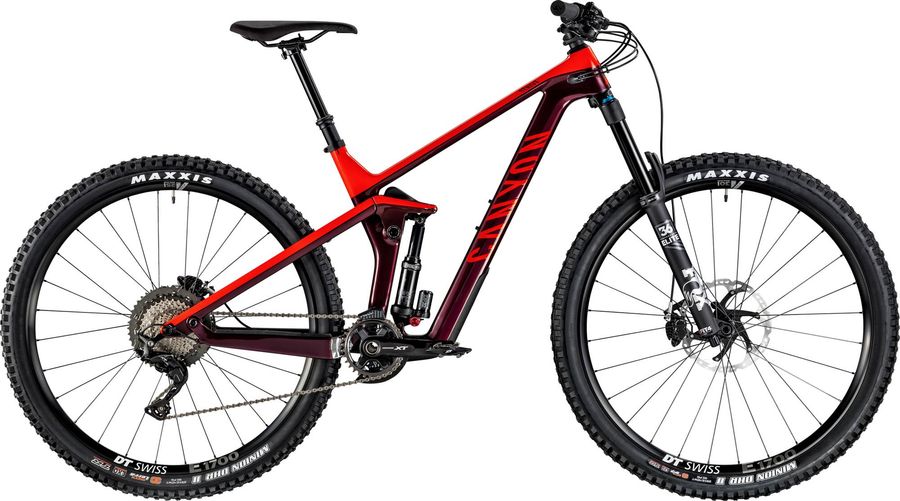

The Canyon Strive CF 7.0 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Canyon Strive CF 7.0 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon G5
Pedals
None included
Components
Steam
Canyon G5
Saddle
SDG Radar
Seatpost
FOX Transfer Performance Elite
Handlebar
Canyon G5 Riserbar, Material: Aluminium, Rise: 20 mm
Discs
Shimano RT86, Disc Mount: 6-Hole
Brakes
Shimano Deore XT BR-M8020 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBLS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8020
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
D01S Resin
D03S Resin
Pad standard
H01A Resin
H03A Resin
Pad standard
H03C Metal
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
RT-MT800
SM-RT99
RT-EM810
RT-EM910
Drivetrain
Crankset
Shimano Deore XT M8000 32T 32
Shifter
Shimano Deore XT M8000 11s, Clamp: I-Spec II
Bottom bracket
Shimano BSA BB-MT800
Chain
Shimano CN-HG701 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG701-11
Pin link plate
SIL-TEC
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Frameset
Frame
Canyon Strive CF, Material: Carbon, Travel: 150 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Front suspension
Fox 36 Performance Elite
Rear suspension
Fox Float DPX2 Performance
Wheels
Rims
DT Swiss E 1700 SH11, Rim Material: Aluminium, Inner Width: 25 mm, Freewheel: Ratchet, Weight: 991 g
Tires
MAXXIS Minion DHR II 2.4'', Casing: Exo, Compound: 3C Maxx Terra

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
455,0
500,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
601,0
627,0
660,0
695,0
d
Head tube length
95,0
100,0
110,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
53,0
53,0
53,0
53,0
g
Trail
109,0
109,0
109,0
109,0
h
Wheelbase
1169,0
1196,0
1230,0
1268,0
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
36,0
36,0
36,0
36,0
k
Stack height
626,0
631,0
640,0
658,0
l
Reach
415,0
440,0
470,0
500,0
m
Standover height
778,0
782,0
788,0
795,0
x
Bottom bracket height
338,0
338,0
338,0
338,0
y
Front center
736,0
763,0
797,0
835,0
