Canyon Strive CF 7 2021

MTB Enduro
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
15,61 kg
Front travel
170mm
Rear travel
150mm

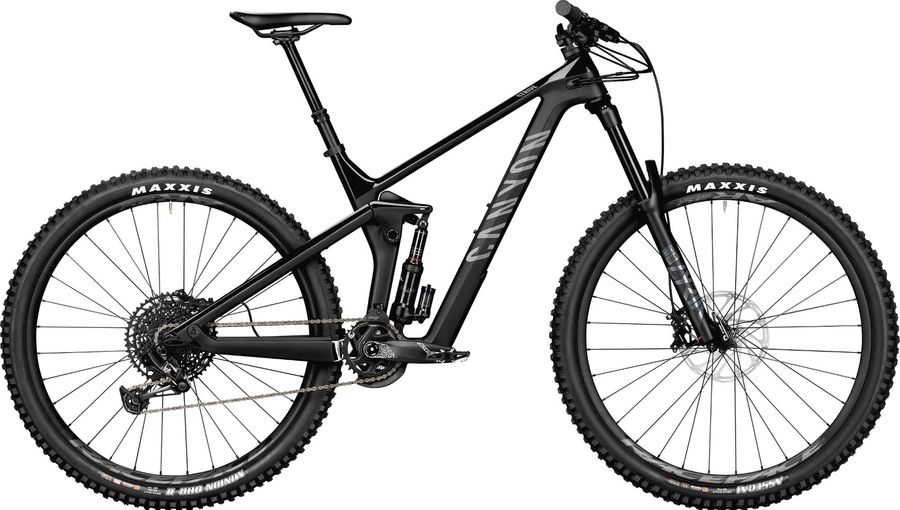

Canyon Strive CF 7 2021

About the Canyon Strive CF 7 2021

The Canyon Strive CF 7 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 15,61 kg.

Features

The Canyon Strive CF 7 2021 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon G5 Lock-On, Canyon's G5 Lock-On grips are comfortable and secure.
Pedals
None included
Components
Steam
Canyon G5 Stem 40mm, The Canyon G5 stem (40mm extension) is both incredibly strong and beautifully designed.
Saddle
Ergon SM10 Enduro Comp, Developed on the Enduro World Series, the SM10 gives you max freedom of movement in technical terrain.
Seatpost
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
Handlebar
Canyon G5 Riserbar, Our aluminum G5 Riser bar offers the perfect combination of width (780mm) and rise.
Discs
SRAM Centerline Rounded Edges, SRAM's 200mm Centerline front rotor ensures you always have stopping power to spare. | SRAM Centerline Rounded Edges, 180mm SRAM Centerline rear rotor offers excellent braking control.
Brakes
SRAM G2 R Hydraulic 393 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-G2-R-A1
Name
G2 R
Orientation
Front, Rear
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
393
Drivetrain
Crankset
Truvativ Descendant 6K AL DUB 32T, Stiff, durable, and secure—SRAM’s patented tooth profile keeps your chain in place while short (165mm) crank arms reduce pedal strikes.
Shifter
SRAM NX Eagle Trigger 12s, SRAM's NX Eagle shifter helps deliver the simplicity and precision a wide-range, single-ring drivetrain.
Bottom bracket
SRAM BSA DUB, Hassle-free SRAM DUB threaded bottom bracket.
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Chain
SRAM SX Eagle
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Canyon Strive CF, Light, strong, and brilliant—the full-carbon Strive instantly morphs from a downhill shredder into a climbing machine with a push of its Shapeshifter paddle. No proprietary shocks required. Simply brilliant.
Front suspension
RockShox Lyrik Select DebonAir 1996 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-SEL-C2
Name
Lyrik Select
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, Maxle Stealth
Weight
1996
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe Select 440 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-SEL-B2
Name
Super Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
440
Wheels
Rims
RaceFace AR30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, RaceFace AR30 aluminum rim, 30mm inner rim width | RaceFace AR30 | Shimano MT400 SH11
Tires
MAXXIS Minion DHR II 2.4'', MAXXIS DHRII 2.4" rear tire provides outstanding grip and braking control. | Maxxis Assegai 29x2,5", The Assegai brings outstanding grip and cornering control in both wet and dry conditions.

Geometry

Size SM Clack SM Click MD Clack MD Click LG Clack LG Click XL Clack XL Click
a
Seat tube length
400,0
400,0
440,0
440,0
455,0
455,0
500,0
500,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
601,0
601,0
627,0
627,0
660,0
660,0
695,0
695,0
d
Head tube length
95,0
95,0
100,0
100,0
110,0
110,0
130,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
66,0º
66,0º
66,0º
66,0º
f
Rake
53,0
53,0
53,0
53,0
53,0
53,0
53,0
53,0
g
Trail
109,0
109,0
109,0
109,0
109,0
109,0
109,0
109,0
h
Wheelbase
1169,0
1169,0
1196,0
1196,0
1230,0
1230,0
1268,0
1268,0
i
Chainstay length
435,0
435,0
435,0
435,0
435,0
435,0
435,0
435,0
j
Bottom bracket drop
36,0
36,0
36,0
36,0
36,0
36,0
36,0
36,0
k
Stack height
626,0
626,0
631,0
631,0
640,0
640,0
658,0
658,0
l
Reach
415,0
415,0
440,0
440,0
470,0
470,0
500,0
500,0
m
Standover height
785,0
785,0
786,0
786,0
789,0
789,0
800,0
800,0
x
Bottom bracket height
338,0
358,0
338,0
358,0
338,0
358,0
338,0
358,0
y
Front center
736,0
736,0
763,0
763,0
797,0
797,0
835,0
835,0
