Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
14 kg
Rear travel
163mm

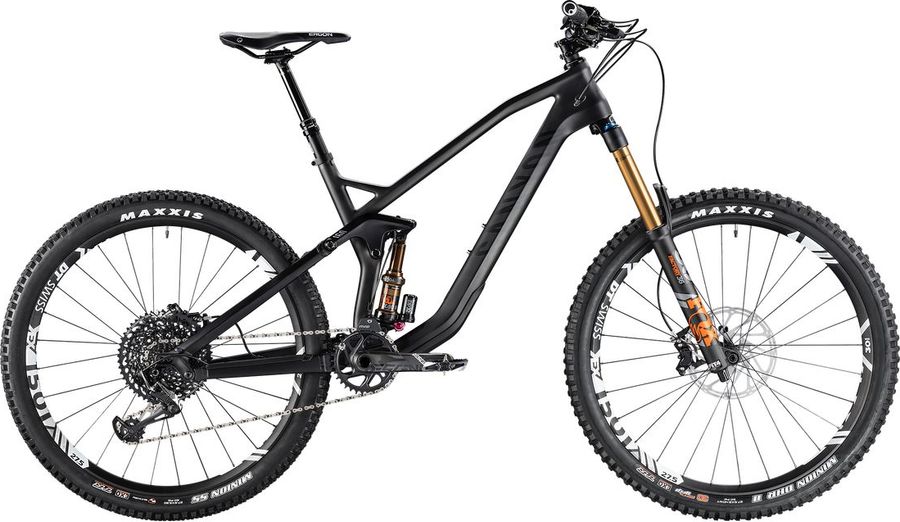

About the Canyon Strive CF 8.0 2018
The Canyon Strive CF 8.0 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain. Its features include internal routing, dropper seatpost, and hydraulic disc brakes. The bike weighs approximately 14 kg.
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Ergon GE10 Slim
|
|---|---|
|
Pedals
|
none included
|
|
Steam
|
Renthal Apex, Angle: + / - 6°, 1 1/8” clamp, Stack: 40 mm, Handlebar clamp: 35 mm
|
|---|---|
|
Saddle
|
Ergon SME30, Flat rear to allow easy change of position between sitting and downhill, EVA foam with air cells for extra comfort in all positions, CroMo rails, Weight: 245 g
|
|
Headset
|
Canyon | Acros
|
|
Seatpost
|
RockShox Reverb Stealth B1, Dropper post with infinite height adjustment, Internally routed hose for clean look, 150 mm of adjustment, Framesize XS and S: 125 mm of adjustment, Diameter: 30.9 mm
|
|
Handlebar
|
Renthal Fat Bar lite Alloy, Corrosion resistant hard-anodized finish, Laser etched positioning grid for easy set-up, Width marks allow accurate adjustment, Width: 760mm, Diameter: 35mm
|
|
Brakes
|
SRAM Code RSC
Hydraulic
|
|
|
|
|
Crankset
|
Truvativ DESCENDANT EAGLE Carbon, 12s, Carbon cranks, X-SYNC™ tooth profile for maximum chain control, Direct mount chainring, 24 mm axle
|
|---|---|
|
Shifter
|
SRAM X01 Eagle Trigger, 12s, SRAM 1X™ X-ACTUATION™ for precise and reliable 12-gear performance, Zero loss for quicker shifting procedure, Compatible with MatchMaker X, Aluminium body and adjustable lever, 12-speed
|
|
Chain guide
|
MRP V3 S3
|
|
Bottom bracket
|
SRAM GXP
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
Canyon Strive CF, Geometry, suspension travel and response adjustment with Shapeshifter, 2400 g carbon frame (incl. Shapeshifter), Tapered Head Tube, Internal routing for gear cables, brakes and dropper post., Down Tube Protector, 180mm Direct Post Mount Brakes, 160/135 mm Travel, Video Manual: Canyon Shapeshifter System
|
|---|---|
|
Rear suspension
|
Fox Float DPX2 Factory EVOL
|
|
Front suspension
|
Fox 36 Float Factory
|
|
Rims
|
DT Swiss EX 1501 Spline, 30 | 25 mm
|
|---|---|
|
Tires
|
Maxxis Minion DHR II 2.4 | Maxxis Minion Semi Slick 2.3, FW: TR | EXO | 3C MaxxGrip, Tubeless Ready, , RW: Dual | TR | EXO | Silkworm | 60 TPI, Tubeless Ready
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
388,0
|
430,0
|
430,0
|
460,0
|
500,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
581,0
|
605,0
|
634,0
|
653,0
|
663,0
|
|
d
Head tube length
|
95,0
|
115,0
|
125,0
|
135,0
|
155,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
334,0
|
334,0
|
334,0
|
328,0
|
335,0
|
|
g
Trail
|
-207,0
|
-207,0
|
-207,0
|
-201,0
|
-208,0
|
|
h
Wheelbase
|
1137,0
|
1163,0
|
1193,0
|
1212,0
|
1245,0
|
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
428,0
|
428,0
|
|
j
Bottom bracket drop
|
-
|
-
|
-
|
-
|
-
|
|
k
Stack height
|
597,0
|
611,0
|
620,0
|
632,0
|
648,0
|
|
l
Reach
|
407,0
|
427,0
|
453,0
|
473,0
|
492,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
340,0
|
340,0
|
340,0
|
340,0
|
340,0
|
|
y
Front center
|
944,0
|
968,0
|
996,0
|
1014,0
|
1045,0
|
