Canyon Strive CF 9.0 2020

MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
14,18 kg
Front travel
160mm
Rear travel
150mm

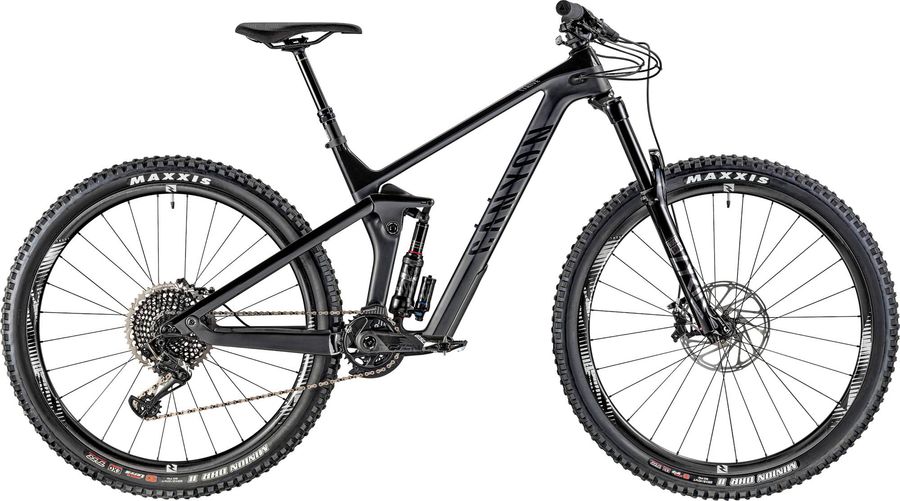

Canyon Strive CF 9.0 2020

About the Canyon Strive CF 9.0 2020

The Canyon Strive CF 9.0 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,18 kg.

Features

The Canyon Strive CF 9.0 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon G5
Pedals
None included
Components
Steam
Canyon G5
Saddle
SDG Radar
Seatpost
RockShox Reverb Stealth 1X
Handlebar
Canyon G5 Riserbar, Material: Carbon, Rise: 20 mm (S/M), Rise: 30 mm (L/XL)
Discs
SRAM Centerline Rounded Edges, Disc Mount: Centerlock
Brakes
SRAM G2 RSC Hydraulic 248 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black
Model
DB-G2-RSC-A1
Name
G2 RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount 800mm Hose, no clamp/mounting hardware
Weight
248
Drivetrain
Crankset
Truvativ Descendant Carbon DUB 32T 32
Shifter
SRAM X01 Eagle Trigger 12s
Bottom bracket
SRAM BSA DUB
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Canyon Strive CF, Neon colours may fade in direct sunlight!, Material: Carbon, Travel: 150 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Front suspension
RockShox Lyrik Ultimate DebonAir 2003 g
Color
BoXXer Red, Gloss Black
Damper type
Charger 2.1 RC2, Charger 2.1 RCT3
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-ULT-C2
Name
Lyrik Ultimate
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, RC2 damper, Maxle Stealth
Weight
2003
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe Ultimate 453 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55, 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5, 205x57.5(TR), 205x60, 205x60(TR), 205x62.5(TR), 205x65, 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
268, 320, 380
Model
RS-SDLX-ULT-B2
Name
Super Deluxe Ultimate
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
453
Wheels
Rims
Reynolds TR 309 XD, Rim Material: Carbon, Inner Width: 30 mm, Weight: 1053 g
Tires
MAXXIS Minion DHR II 2.4'', Casing: Exo, Compound: 3C Maxx Terra

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
455,0
500,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
601,0
627,0
660,0
695,0
d
Head tube length
95,0
100,0
110,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
53,0
53,0
53,0
53,0
g
Trail
109,0
109,0
109,0
109,0
h
Wheelbase
1169,0
1196,0
1230,0
1268,0
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
36,0
36,0
36,0
36,0
k
Stack height
626,0
631,0
640,0
658,0
l
Reach
415,0
440,0
470,0
500,0
m
Standover height
785,0
786,0
789,0
800,0
x
Bottom bracket height
338,0
338,0
338,0
338,0
y
Front center
736,0
763,0
797,0
835,0
