Canyon Strive CFR 2020

MTB Enduro
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,36 kg
Front travel
170mm
Rear travel
150mm

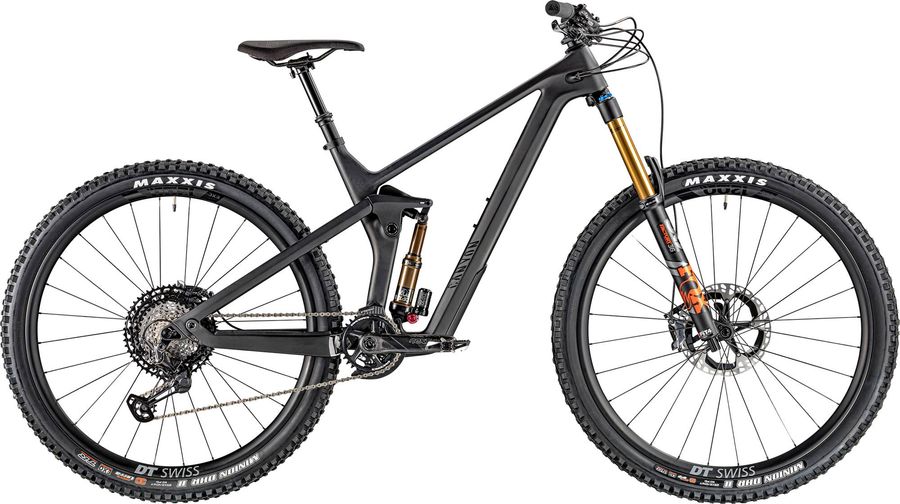

Canyon Strive CFR 2020

About the Canyon Strive CFR 2020

The Canyon Strive CFR 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,36 kg.

Features

The Canyon Strive CFR 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon G5
Pedals
None included
Components
Steam
Canyon G5
Saddle
SDG Radar
Seatpost
FOX Transfer Performance Elite
Handlebar
Canyon G5 Riserbar, Material: Carbon, Rise: 20 mm (S/M), Rise: 30 mm (L/XL)
Discs
Shimano RT-MT900, Disc Mount: Centerlock
Brakes
Shimano XTR BR-M9120 385 (BL-M9120) g Hydraulic disc brake 4 piston
Average weight (g)
385 (BL-M9120)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad standard
N03A Resin pad (w/ radiator fin)
Pad standard
N04C Metal pad (w/ radiator fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Race Face Next SL G5 Carbon 32T 32
Shifter
SRAM MMX XO1, Clamp: MMX
Bottom bracket
Race Face BSA Cinch
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Canyon Strive CFR, Material: Carbon, Travel: 150 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Rear suspension
Fox Float DPX2 Factory
Front suspension
Fox 36 Factory
Wheels
Rims
DT Swiss EXC 1200 SH12, Rim Material: Carbon, Inner Width: 30 mm, Freewheel: Ratchet
Tires
MAXXIS Minion DHR II 2.4'', Casing: Exo, Compound: 3C Maxx Terra

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
455,0
500,0
b
Seat tube angle
72,91º
72,92º
72,94º
72,96º
c
Top tube length
602,0
629,0
662,0
697,0
d
Head tube length
95,0
100,0
110,0
130,0
e
Head tube angle
65,4º
65,4º
65,4º
65,4º
f
Rake
45,0
45,0
45,0
45,0
g
Trail
122,0
122,0
122,0
122,0
h
Wheelbase
1166,0
1193,0
1227,0
1266,0
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
32,0
32,0
32,0
32,0
k
Stack height
630,0
635,0
644,0
663,0
l
Reach
409,0
434,0
464,0
494,0
m
Standover height
791,0
792,0
795,0
806,0
x
Bottom bracket height
342,0
342,0
342,0
342,0
y
Front center
733,0
760,0
794,0
833,0
