Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
14,25 kg
Front travel
170mm
Rear travel
150mm

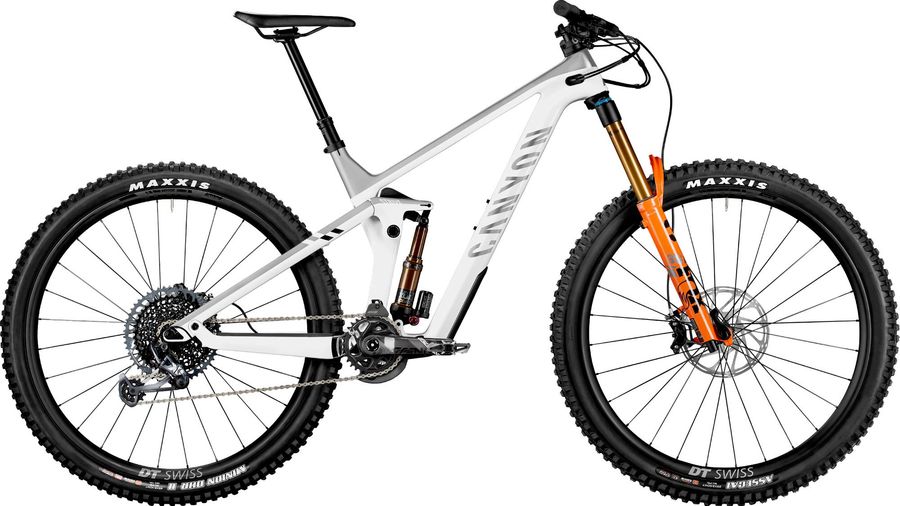

About the Canyon Strive CFR 2021
The Canyon Strive CFR 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 14,25 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Canyon G5 Lock-On, Canyon's G5 Lock-On grips are comfortable and secure.
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Canyon G5 Stem 40mm, The Canyon G5 stem (40mm extension) is both incredibly strong and beautifully designed.
|
|---|---|
|
Saddle
|
Ergon SM10 Enduro Comp
|
|
Seatpost
|
OneUp Components V2, OneUp Components' V2 dropper post provides a massive 180mm of saddle-height adjustability., S: 150 mm, M - XL: 180 mm
|
|
Handlebar
|
Canyon G5 Riserbar, Our carbon-fiber G5 Riser bar offers the perfect combination of width (780mm) and rise (30mm).
|
|
Discs
|
SRAM Centerline, 180mm, 160mm SRAM Centerline rear rotor offers excellent braking control. | SRAM Centerline, 200mm, SRAM's 200mm Centerline front rotor ensures you always have stopping power to spare.
|
|
Brakes
|
SRAM Code RSC
Hydraulic
|
|
|
|
|
Crankset
|
Truvativ Descendant Carbon DUB 32T
|
|---|---|
|
Shifter
|
SRAM X01 Eagle Trigger 12s | SRAM MMX XO1, Clamp: MMX
|
|
Bottom bracket
|
SRAM BSA DUB, Hassle-free SRAM DUB threaded bottom bracket.
|
|
Chain
|
SRAM X01 Eagle
239 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 GX Eagle
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
Canyon Strive CFR
|
|---|---|
|
Rear suspension
|
Fox Float DPX2 Factory
|
|
Front suspension
|
Fox 36 Factory
|
|
Rims
|
DT Swiss EXC1200, The pinnacle enduro racing wheelset, tough-yet-light carbon rims pair with ceramic bearings and DT's proven 180 hubset. | DT Swiss EXC1200
|
|---|---|
|
Tires
|
MAXXIS Minion DHR II 2.4'', MAXXIS DHRII 2.4" rear tire provides outstanding grip and braking control. | Maxxis Assegai 29x2,5", The Assegai brings outstanding grip and cornering control in both wet and dry conditions.
|
Geometry
| Size | SM Clack | SM Click | MD Clack | MD Click | LG Clack | LG Click | XL Clack | XL Click |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
400,0
|
440,0
|
440,0
|
455,0
|
455,0
|
500,0
|
500,0
|
|
b
Seat tube angle
|
72,9º
|
72,9º
|
72,9º
|
72,9º
|
72,9º
|
72,9º
|
72,9º
|
72,9º
|
|
c
Top tube length
|
601,0
|
601,0
|
627,0
|
627,0
|
660,0
|
660,0
|
695,0
|
695,0
|
|
d
Head tube length
|
95,0
|
95,0
|
100,0
|
100,0
|
110,0
|
110,0
|
130,0
|
130,0
|
|
e
Head tube angle
|
65,4º
|
65,4º
|
65,4º
|
65,4º
|
65,4º
|
65,4º
|
65,4º
|
65,4º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
43,0
|
43,0
|
43,0
|
43,0
|
|
g
Trail
|
123,0
|
123,0
|
123,0
|
123,0
|
124,0
|
124,0
|
124,0
|
124,0
|
|
h
Wheelbase
|
1173,0
|
1173,0
|
1,2e3
|
1,2e3
|
1234,0
|
1234,0
|
1272,0
|
1272,0
|
|
i
Chainstay length
|
435,0
|
435,0
|
435,0
|
435,0
|
435,0
|
435,0
|
435,0
|
435,0
|
|
j
Bottom bracket drop
|
17,0
|
17,0
|
17,0
|
17,0
|
17,0
|
17,0
|
17,0
|
17,0
|
|
k
Stack height
|
630,0
|
630,0
|
635,0
|
635,0
|
645,0
|
645,0
|
663,0
|
663,0
|
|
l
Reach
|
409,0
|
409,0
|
434,0
|
434,0
|
464,0
|
464,0
|
494,0
|
494,0
|
|
m
Standover height
|
712,0
|
712,0
|
793,0
|
793,0
|
796,0
|
796,0
|
808,0
|
808,0
|
|
x
Bottom bracket height
|
338,0
|
358,0
|
338,0
|
358,0
|
338,0
|
358,0
|
338,0
|
358,0
|
|
y
Front center
|
739,0
|
739,0
|
766,0
|
766,0
|
800,0
|
800,0
|
838,0
|
838,0
|
