Canyon Strive CFR 9.0 LTD 2019

MTB Enduro
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

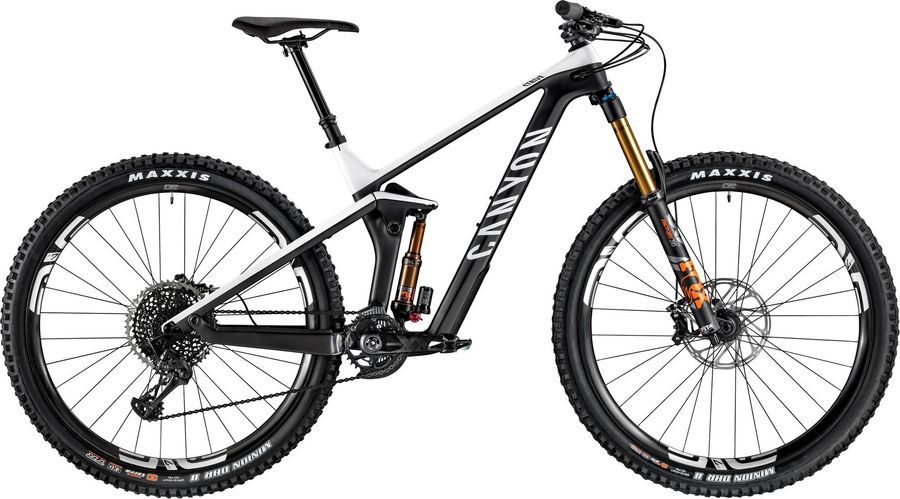

Canyon Strive CFR 9.0 LTD 2019

About the Canyon Strive CFR 9.0 LTD 2019

The Canyon Strive CFR 9.0 LTD 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Canyon Strive CFR 9.0 LTD 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon G5
Pedals
None included
Components
Steam
Canyon G5
Saddle
SDG Radar
Seatpost
FOX Transfer Performance Elite
Handlebar
Canyon G5 Carbon Riserbar, Material: Carbon, Rise: 20 mm
Discs
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM XX1 Eagle DUB 32T, Material: Carbon 32
Shifter
SRAM XX1 Eagle Trigger 12s
Bottom bracket
SRAM BSA DUB
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Frame
Canyon Strive CFR, Material: Carbon, Travel: 150 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Rear suspension
Fox Float DPX2 Factory
Front suspension
Fox 36 Factory
Wheels
Rims
ENVE M730 XD, Rim Material: Carbon, Inner Width: 30 mm
Tires
MAXXIS Minion DHR II 2.4'', Casing: Exo, Compound: 3C Maxx Terra

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
455,0
500,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
602,0
629,0
662,0
697,0
d
Head tube length
95,0
100,0
110,0
130,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
120,0
120,0
120,0
120,0
h
Wheelbase
1166,0
1193,0
1227,0
1266,0
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
32,0
32,0
32,0
32,0
k
Stack height
630,0
635,0
644,0
663,0
l
Reach
409,0
434,0
464,0
494,0
m
Standover height
778,0
782,0
788,0
795,0
x
Bottom bracket height
342,0
342,0
342,0
342,0
y
Front center
733,0
760,0
794,0
833,0
