Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
16,14 kg
Front travel
180mm
Rear travel
175mm

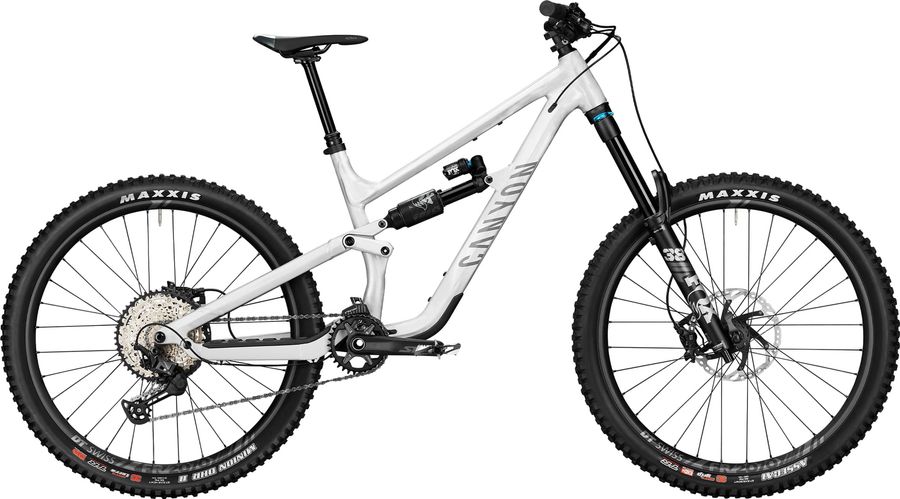

About the Canyon Torque 27.5 AL 6 2022
The Canyon Torque 27.5 AL 6 2022 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 16,14 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Canyon G5 Grips, Get huge grip, with or without gloves. The clamp guarantees a tight lock on the bar., Canyon G5 lock-on grips for huge grip and control.
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Canyon G5 Stem, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails. Material: aluminium. Length: 40 mm. Clamping diameter: 31.8 mm.
|
|---|---|
|
Saddle
|
Fizik Gravita Alpaca X5
|
|
Seatpost
|
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
|
|
Handlebar
|
Canyon G5 Riser Bar, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability. Width: 780 mm. Rise: 30 mm. Clamping diameter: 31.8 mm., Clamping Diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
|
|
Discs
|
Rotor Hayes, 203 mm
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Crankset
|
Shimano SLX FC-M7120-1, Number of chainrings: 1
|
|---|---|
|
Shifter
|
Shimano SLX, 12-speed, 12 speed, tunable RAPIDFIRE PLUS shifting to make sure you never miss a beat.
|
|
Bottom bracket
|
Token BSA
|
|
Chain
|
Shimano CN-M6100
252 g
|
|
|
|
|
Cassette
|
Shimano SLX CS-M7100-12
HYPERGLIDE+
|
|
10-51T 10-51T: 534g |
|
|
Rear derailleur
|
Shimano SLX RD-M7100
313 g
SGS
12s
|
|
|
|
|
Frame
|
Canyon Torque AL, Axle dimension: 12x148 mm, Material: Aluminium (AL)
|
|---|---|
|
Front suspension
|
Fox 38 Float Performance
|
|
Rear suspension
|
Fox Float X2 Performance
|
|
Rims
|
DT Swiss FR 2070 370LN, Rotor Mount: IS 6-bolt | DT Swiss FR2070 370LN, Rotor Mount: IS 6-bolt
|
|---|---|
|
Tires
|
MAXXIS MINION DHR 2 3C MaxxTerra | MAXXIS ASSEGAI 3C MaxxGrip, Wheelsize: 27,5"
|
Geometry
| Size | SM | MD | LG |
|---|---|---|---|
|
a
Seat tube length
|
395,0
|
430,0
|
435,0
|
|
b
Seat tube angle
|
78,0º
|
78,0º
|
78,0º
|
|
c
Top tube length
|
645,0
|
667,0
|
690,0
|
|
d
Head tube length
|
120,0
|
130,0
|
140,0
|
|
e
Head tube angle
|
63,5º
|
63,5º
|
63,5º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
128,0
|
128,0
|
128,0
|
|
h
Wheelbase
|
1204,0
|
1234,0
|
1263,0
|
|
i
Chainstay length
|
419,0
|
419,0
|
419,0
|
|
j
Bottom bracket drop
|
14,0
|
14,0
|
14,0
|
|
k
Stack height
|
613,0
|
622,0
|
631,0
|
|
l
Reach
|
430,0
|
455,0
|
480,0
|
|
m
Standover height
|
753,0
|
758,0
|
762,0
|
|
x
Bottom bracket height
|
341,0
|
341,0
|
341,0
|
|
y
Front center
|
785,0
|
815,0
|
844,0
|
