Canyon Torque 29 CF 7 2022

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
15,5 kg
Front travel
170mm
Rear travel
170mm

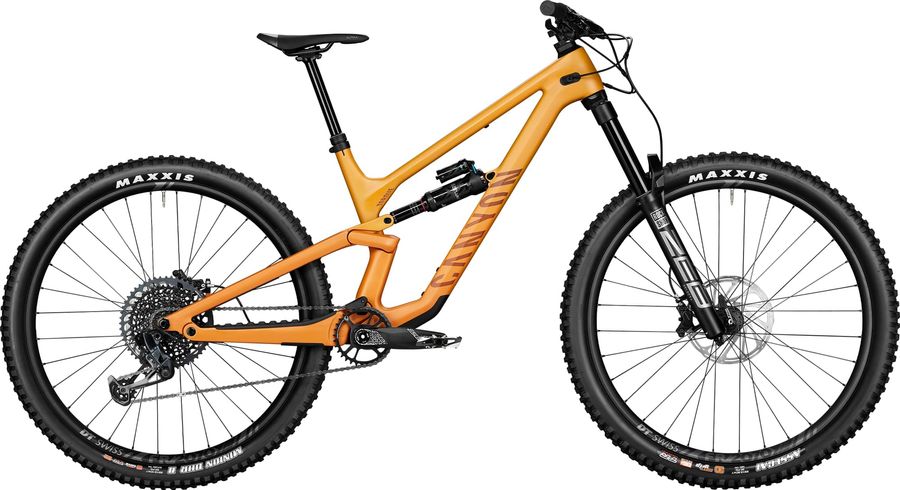

Canyon Torque 29 CF 7 2022

About the Canyon Torque 29 CF 7 2022

The Canyon Torque 29 CF 7 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 15,5 kg.

Features

The Canyon Torque 29 CF 7 2022 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon G5 Grips, Canyon G5 lock-on grips for huge grip and control.
Pedals
None included
Components
Steam
Canyon G5 Stem
Saddle
Fizik Gravita Alpaca X5
Seatpost
G5 Adjustable Dropper Post
Handlebar
Canyon G5 Riser Bar
Discs
SRAM Centerline, 200mm, SRAM's 200mm Centerline front rotor ensures you always have stopping power to spare.
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Descendant 6K
Shifter
SRAM GX Eagle, 12-speed, SRAM's GX Eagle 12-speed shifters fire off quick and accurate gear shifts.
Bottom bracket
SRAM DUB, Threaded, Hassle-free SRAM DUB threaded bottom bracket.
Chain
SRAM SX Eagle
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM GX Eagle
Frameset
Frame
Canyon Torque CF
Front suspension
RockShox ZEB Select+ DebonAir, Dual Position Air 2265 g
Color
Diffusion Black, Gloss Black
Damper type
Charger 2.1 RC
fork offset
38mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
200mm
Model
FS-ZEB-SELP-A1
Name
ZEB Select+
Spring
DebonAir, Dual Position Air
Travel (mm)
150mm, 160mm, 170mm, 180mm, 190mm
Upper tube type
38mm aluminum
Weight based on
29" Maxle Stealth 190mm Travel 1.5" Taper Steerer
Weight
2265
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe Select+ 445 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-SELP-B2
Name
Super Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
445
Wheels
Rims
DT Swiss FR 2070 370LN
Tires
MAXXIS MINION DHR 2 3C MaxxTerra

Geometry

Size MD LG XL
a
Seat tube length
430,0
435,0
475,0
b
Seat tube angle
77,5º
77,5º
77,5º
c
Top tube length
600,0
627,0
654,0
d
Head tube length
105,0
115,0
125,0
e
Head tube angle
63,5º
63,5º
63,5º
f
Rake
45,0
45,0
45,0
g
Trail
136,0
136,0
136,0
h
Wheelbase
1249,0
1278,0
1308,0
i
Chainstay length
436,0
436,0
436,0
j
Bottom bracket drop
30,0
30,0
30,0
k
Stack height
625,0
634,0
643,0
l
Reach
461,0
486,0
511,0
m
Standover height
767,0
769,0
774,0
x
Bottom bracket height
344,0
344,0
344,0
y
Front center
815,0
844,0
874,0
