BikeWise

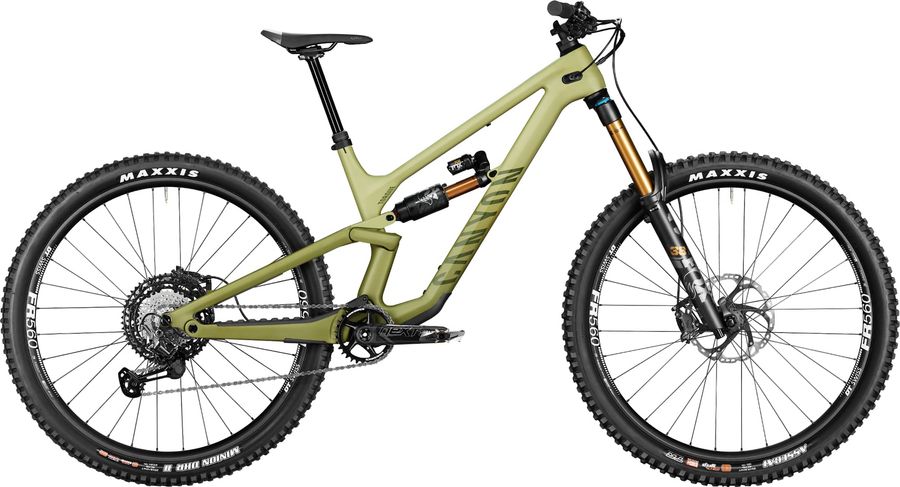

Canyon Torque 29 CF 9 2022

MTB Enduro
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
15,18 kg
Front travel
170mm
Rear travel
170mm
Canyon Torque 29 CF 9 2022

About the Canyon Torque 29 CF 9 2022

The Canyon Torque 29 CF 9 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 15,18 kg.

Features

The Canyon Torque 29 CF 9 2022 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon G5 Grips, Get huge grip, with or without gloves. The clamp guarantees a tight lock on the bar., Canyon G5 lock-on grips for huge grip and control.
Pedals
None included
Components
Steam
Canyon G5 Stem, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails. Material: aluminium. Length: 40 mm. Clamping diameter: 31.8 mm.
Saddle
Fizik Gravita Alpaca X5
Seatpost
G5 Adjustable Dropper Post, Clamp diameter: 30,9 mm
Handlebar
Canyon G5 Carbon Riser Bar, Highly robust carbon handlebar. G5 stands for gravity and category 5., Rise: 30 mm., Clamping diameter: 31.8 mm.
Discs
Shimano RT86, 203mm, A big (203mm) Shimano RT86 brake rotor delivers equally big stopping power.
Brakes
Shimano XTR BR-M9120 385 (BL-M9120) g Hydraulic disc brake 4 piston
Average weight (g)
385 (BL-M9120)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad standard
N03A Resin pad (w/ radiator fin)
Pad standard
N04C Metal pad (w/ radiator fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Race Face Next R, Number of chainrings: 1
Shifter
Shimano XTR, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 60-degrees rotation adjustment, 127 g
Bottom bracket
Race Face BSA Cinch, Hassle-free RaceFace Cinch threaded bottom bracket.
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Canyon Torque CF, Axle dimension: 12x148 mm, Material: Carbon (CF)
Rear suspension
Fox Float X2 Factory
Front suspension
Fox 38 Factory
Wheels
Rims
DT Swiss FR 560 240 EXP, Rotor Mount: IS 6-bolt
Tires
MAXXIS MINION DHR 2 3C MaxxTerra, Wheelsize: 29"

Geometry

Size MD LG XL
a
Seat tube length
430,0
435,0
475,0
b
Seat tube angle
77,5º
77,5º
77,5º
c
Top tube length
600,0
627,0
654,0
d
Head tube length
105,0
115,0
125,0
e
Head tube angle
63,5º
63,5º
63,5º
f
Rake
45,0
45,0
45,0
g
Trail
136,0
136,0
136,0
h
Wheelbase
1249,0
1278,0
1308,0
i
Chainstay length
436,0
436,0
436,0
j
Bottom bracket drop
30,0
30,0
30,0
k
Stack height
625,0
634,0
643,0
l
Reach
461,0
486,0
511,0
m
Standover height
767,0
769,0
774,0
x
Bottom bracket height
344,0
344,0
344,0
y
Front center
815,0
844,0
874,0
