Canyon Torque 5 2021

MTB Enduro
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
16,14 kg
Front travel
180mm
Rear travel
175mm

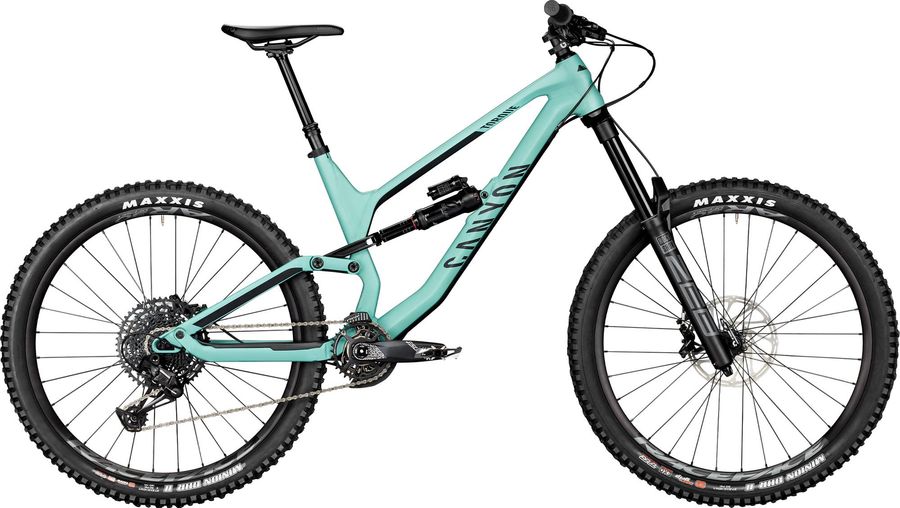

Canyon Torque 5 2021

About the Canyon Torque 5 2021

The Canyon Torque 5 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 16,14 kg.

Features

The Canyon Torque 5 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Canyon G5 Grips, Canyon's G5 Lock-On grips are comfortable and secure.
Pedals
None included
Components
Steam
Canyon G5 Stem 40mm, The Canyon G5 stem (40mm extension) is both incredibly strong and beautifully designed.
Saddle
Ergon SM10 Enduro Comp, Developed on the Enduro World Series, the SM10 gives you max freedom of movement in technical terrain.
Seatpost
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
Handlebar
Canyon G5 Riserbar, Our aluminum G5 Riser bar offers the perfect combination of width (780mm) and rise.
Discs
SRAM Centerline Rounded Edges, SRAM's 200mm Centerline front rotor ensures you always have stopping power to spare. | SRAM Centerline Rounded Edges, 180mm SRAM Centerline rear rotor offers excellent braking control.
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
Truvativ Descendant 6K DUB 32T
Shifter
SRAM NX Eagle Trigger 12s
Bottom bracket
SRAM BSA DUB, Hassle-free SRAM DUB threaded bottom bracket.
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Canyon Torque
Rear suspension
RockShox Super Deluxe Select 440 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-SEL-B2
Name
Super Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
440
Front suspension
RockShox ZEB DebonAir, Dual Position Air 2231 g
Color
Diffusion Black, Gloss Black
Damper type
Charger R
fork offset
38mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
200mm
Model
FS-ZEB-R-A1
Name
ZEB
Spring
DebonAir, Dual Position Air
Travel (mm)
150mm, 160mm, 170mm, 180mm, 190mm
Upper tube type
38mm aluminum
Weight based on
29" Maxle Stealth 190mm Travel 1.5" Taper Steerer
Weight
2231
Wheel size
27.5", 29"
Wheels
Rims
RaceFace AR30 | RaceFace AR30 | Shimano MT400 SH11
Tires
MAXXIS Minion DHR II 2.4'', Casing: Exo, Compound: 3C Maxx Grip, Technology: Tubeless ready | MAXXIS Minion DHR II 2.4''

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
455,0
500,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
597,0
620,0
642,0
665,0
d
Head tube length
115,0
128,0
135,0
145,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
41,0
38,0
38,0
38,0
g
Trail
121,0
124,0
124,0
124,0
h
Wheelbase
1171,0
1195,0
1219,0
1243,0
i
Chainstay length
425,0
428,0
428,0
428,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
k
Stack height
618,0
627,0
636,0
645,0
l
Reach
420,0
440,0
460,0
480,0
m
Standover height
759,0
761,0
762,0
776,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
y
Front center
746,0
767,0
791,0
815,0
