Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
16,04 kg
Front travel
180mm
Rear travel
175mm

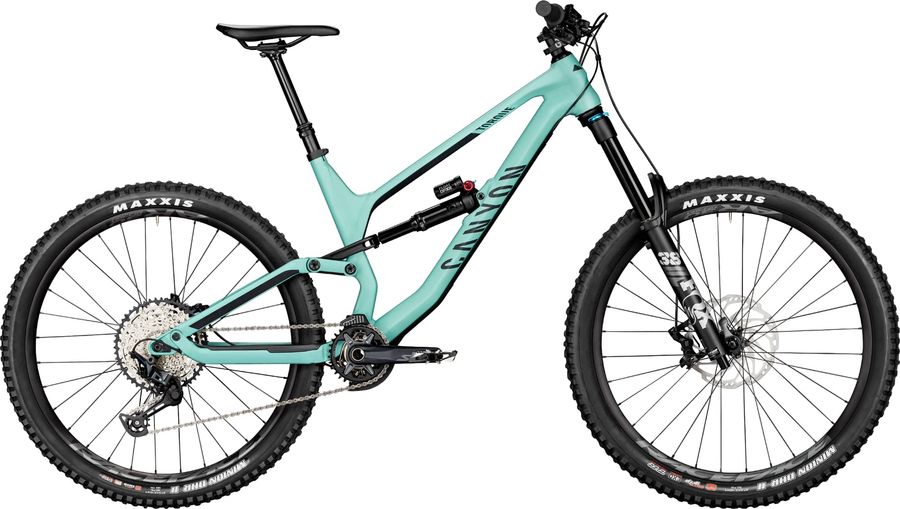

About the Canyon Torque 6 2022
The Canyon Torque 6 2022 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 16,04 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Canyon G5 Lock-On, Canyon's G5 Lock-On grips are comfortable and secure.
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Canyon G5 Stem 40mm, The Canyon G5 stem (40mm extension) is both incredibly strong and beautifully designed.
|
|---|---|
|
Saddle
|
Fizik Gravita Alpaca X5
|
|
Seatpost
|
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
|
|
Handlebar
|
Canyon G5 Riserbar, Our aluminum G5 Riser bar offers the perfect combination of width (780mm) and rise.
|
|
Discs
|
Shimano RT70, Disc Mount: Centerlock | Shimano SLX rotor, 203mm, High-power 4-piston Deore brake, quick pad retraction, compatible with ICE TECH brake pads
|
|
Brakes
|
Shimano SLX BR-M7120
444 (BL-M7100) g
Hydraulic disc brake
4 piston
|
|
|
|
|
Crankset
|
Shimano SLX M7100 32T
|
|---|---|
|
Shifter
|
Shimano SLX, 12-speed, Precise 1x12 shifting system.
|
|
Bottom bracket
|
Shimano MT800, Threaded, Hassle-free Shimano Hollowtech II threaded bottom bracket
|
|
Cassette
|
Shimano SLX CS-M7100-12
HYPERGLIDE+
|
|
10-51T 10-51T: 534g |
|
|
Rear derailleur
|
Shimano SLX RD-M7100
313 g
SGS
12s
|
|
|
|
|
Chain
|
Shimano CN-M7100
252 g
|
|
|
|
|
Frame
|
Canyon Torque
|
|---|---|
|
Rear suspension
|
Fox DPX2 Performance
|
|
Front suspension
|
Fox 32 Performance
|
|
Rims
|
RaceFace AR30 | RaceFace AR30 | Shimano MT510 SH12
|
|---|---|
|
Tires
|
MAXXIS Minion DHR II 2.4'', Casing: Exo, Compound: 3C Maxx Grip, Technology: Tubeless ready | MAXXIS Minion DHR II 2.4''
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
440,0
|
455,0
|
500,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
597,0
|
620,0
|
642,0
|
665,0
|
|
d
Head tube length
|
115,0
|
128,0
|
135,0
|
145,0
|
|
e
Head tube angle
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
|
f
Rake
|
41,0
|
38,0
|
38,0
|
38,0
|
|
g
Trail
|
121,0
|
124,0
|
124,0
|
124,0
|
|
h
Wheelbase
|
1171,0
|
1195,0
|
1219,0
|
1243,0
|
|
i
Chainstay length
|
425,0
|
428,0
|
428,0
|
428,0
|
|
j
Bottom bracket drop
|
15,0
|
15,0
|
15,0
|
15,0
|
|
k
Stack height
|
618,0
|
627,0
|
636,0
|
645,0
|
|
l
Reach
|
420,0
|
440,0
|
460,0
|
480,0
|
|
m
Standover height
|
759,0
|
761,0
|
762,0
|
776,0
|
|
x
Bottom bracket height
|
340,0
|
340,0
|
340,0
|
340,0
|
|
y
Front center
|
746,0
|
767,0
|
791,0
|
815,0
|
