Canyon Torque CF 7.0 2018

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,5 kg
Front travel
180mm
Rear travel
175mm

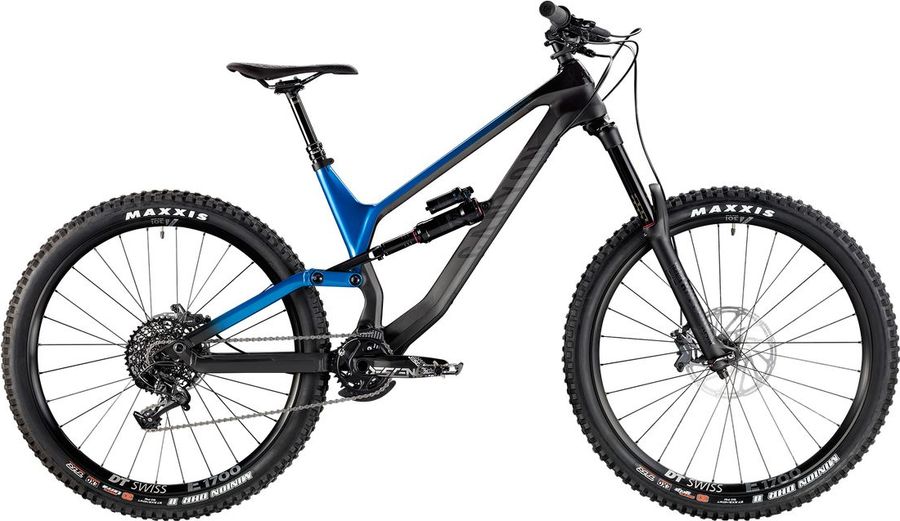

Canyon Torque CF 7.0 2018

About the Canyon Torque CF 7.0 2018

The Canyon Torque CF 7.0 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain. Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 14,5 kg.

Features

The Canyon Torque CF 7.0 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon G5
Pedals
none included
Components
Steam
Canyon G5
Saddle
SDG Circuit MTN, Flat construction with lightweigh EVA foam, Base cut out reduces pressure, CroMo saddle rails, Micro fibre upper, Weight: 220 g
Headset
Acros THE CLAMP, Three cams generate the requisite travel for adjusting the headset play, The conventional steel retaining claw is thereby rendered obsolete
Seatpost
RockShox Reverb Stealth B1, Dropper post with infinite height adjustment, Internally routed hose for clean look, 170 mm of adjustment, Framesize XS, S, and M: 150 mm of adjustment, Framesize L and XL: 170 mm of adjustment, Diameter: 30.9 mm
Handlebar
Canyon G5, handlebar width: 780 mm, Rise: 20mm [S/M] & 30mm [L/XL], 5° Upsweep, 8° Backsweep, Material: 7005 AL, Category 5 approved
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM DESCENDANT 7k
Shifter
SRAM GX Eagle Trigger, 12s
Chain guide
e.thirteen TRS+
Bottom bracket
SRAM GXP
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Canyon Torque CF
Front suspension
RockShox Lyrik RCT3 Dual Position Air, Solo Air 2005 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
42mm (27.5"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-LYRK-RCT3-A1
Name
Lyrik RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27/29 Solo Air, RCT3, 180mm travel
Weight
2005
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+
Rear suspension
RockShox Super Deluxe RCT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, M
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-RCT-B1
Name
Super Deluxe RCT
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
DT Swiss E 1700 Spline
Tires
Maxxis Minion DHR II 3C Maxx Grip DW, 3C MaxxGrip | TR | EXO | 60 TPI, Redesigned, wider shoulder knobs for better cornering, Paddle-like center knobs for improved braking, Width: 2.4 inches

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
455,0
500,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
597,0
620,0
642,0
665,0
d
Head tube length
115,0
125,0
135,0
145,0
e
Head tube angle
65,3º
65,3º
65,3º
65,3º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
117,0
117,0
117,0
117,0
h
Wheelbase
1170,9
1195,1
1219,3
1243,4
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
k
Stack height
618,0
627,0
636,0
645,0
l
Reach
420,0
440,0
460,0
480,0
m
Standover height
751,0
756,0
760,0
765,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
y
Front center
743,0
768,0
792,0
816,0
