Canyon Torque CF 8.0 2020

MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,4 kg
Front travel
180mm
Rear travel
175mm

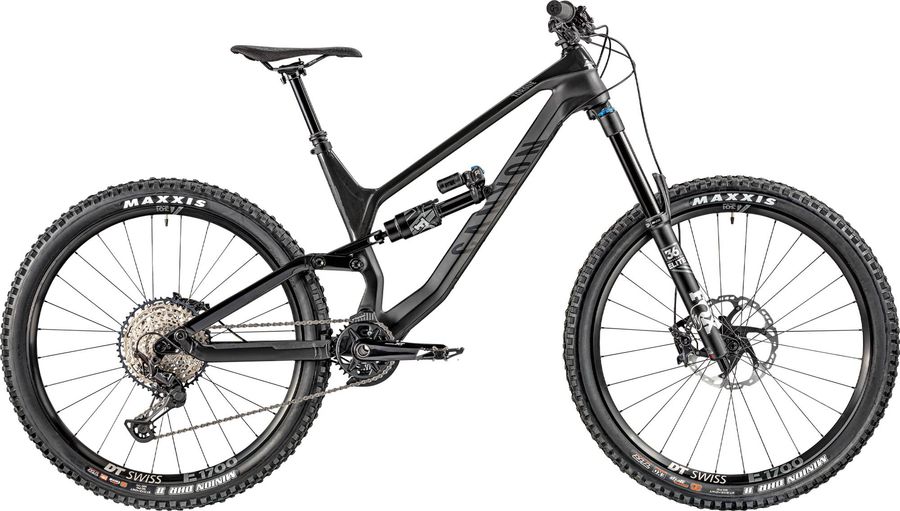

Canyon Torque CF 8.0 2020

About the Canyon Torque CF 8.0 2020

The Canyon Torque CF 8.0 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,4 kg.

Features

The Canyon Torque CF 8.0 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon G5 Flange
Pedals
None included
Components
Steam
Canyon G5
Saddle
SDG Circuit MTN
Seatpost
SP FOX TRANSFER PFE RM 1X 30,9X456 150
Handlebar
Canyon G5 Riserbar, Material: Aluminium, Rise: 20 mm
Discs
Shimano RT86, Disc Mount: 6-Hole
Brakes
Shimano Deore XT BR-M8120 410 (BL-M8100) g Hydraulic disc brake 4 piston
Average weight (g)
410 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D03S Resin (w/o fin)
Pad option
D02S Metal (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad standard
N04C Metal (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Shimano Deore XT M8100 32T, US: 170mm crank arm length 32
Shifter
Shimano Deore XT M8100 12s, Clamp: I-Spec EV
Bottom bracket
Shimano BSA BB-MT800
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Frameset
Frame
Canyon Torque CF, Material: Carbon, Travel: 175 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Front suspension
Fox 36 Performance Elite
Rear suspension
Fox Float X2 Performance
Wheels
Rims
DT Swiss E 1700 SH12, Rim Material: Aluminium, Inner Width: 30 mm, Freewheel: Ratchet
Tires
MAXXIS Minion DHR II 2.4''

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
455,0
500,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
597,0
620,0
642,0
665,0
d
Head tube length
115,0
125,0
135,0
145,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
38,0
38,0
38,0
38,0
g
Trail
124,0
124,0
124,0
124,0
h
Wheelbase
1171,0
1195,0
1219,0
1243,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
k
Stack height
618,0
627,0
636,0
645,0
l
Reach
420,0
440,0
460,0
480,0
m
Standover height
751,0
756,0
760,0
756,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
y
Front center
743,0
767,0
791,0
815,0
