Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,08 kg
Front travel
180mm
Rear travel
175mm

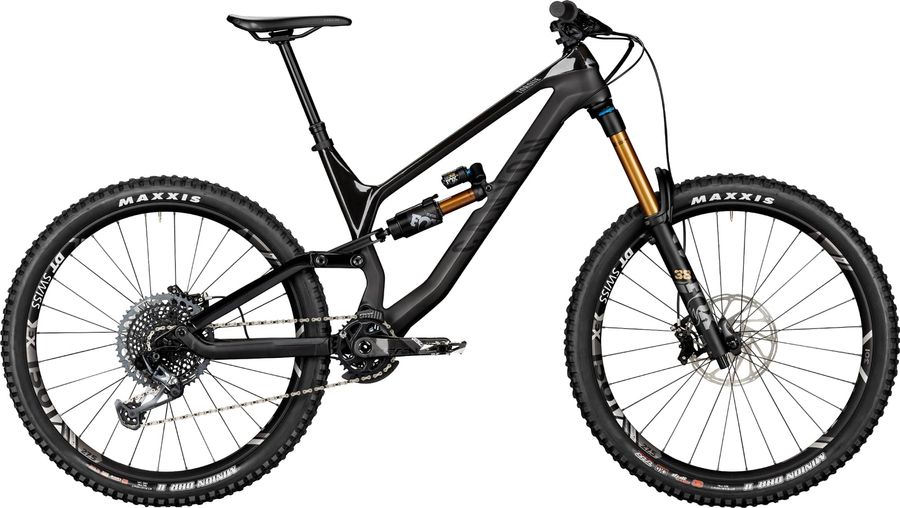

About the Canyon Torque CF 9 2022
The Canyon Torque CF 9 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 15,08 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Canyon G5 Grips
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Canyon G5 Stem 40mm
|
|---|---|
|
Saddle
|
Fizik Gravita Alpaca X5
|
|
Seatpost
|
OneUp Components V2, Durable dropper post. Up to 180 mm of saddle height adjustment with the push of a button. Additional tuning option: reduce the travel by 10 or 20 mm depending on your preference.
|
|
Handlebar
|
Canyon G5 Riserbar, Our carbon-fiber G5 Riser bar offers the perfect combination of width (780mm) and rise (30mm).
|
|
Discs
|
SRAM Centerline, 180mm, Diameter: 180 mm. | SRAM Centerline, 200mm, SRAM's 200mm Centerline front rotor ensures you always have stopping power to spare.
|
|
Brakes
|
SRAM Code RSC
Hydraulic
|
|
|
|
|
Crankset
|
Truvativ Descendant Carbon DUB 32T
|
|---|---|
|
Shifter
|
SRAM X01 Eagle, 12-speed, Aimed at aggressive trail riders, Eagle X01 pairs premium materials and design for years of accurate shifts under pressure.
|
|
Bottom bracket
|
SRAM BSA DUB
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1299 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
Canyon Torque CF, Material: Carbon, Travel: 175 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
|
|---|---|
|
Rear suspension
|
Fox Float X2 Factory
|
|
Front suspension
|
Fox 38 Float Factory Kashima
|
|
Rims
|
DT Swiss EX 1501, Rim Material: Aluminium, Inner Width: 30 mm, Weight: 831 g | DT Swiss EX 1501 XD, Rim Material: Aluminium, Inner Width: 30 mm, Freewheel: Ratchet, Weight: 948 g
|
|---|---|
|
Tires
|
MAXXIS Minion DHR II 2.4'', Casing: Exo, Compound: 3C Maxx Grip, Technology: Tubeless ready | MAXXIS Minion DHR II 2.4''
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
440,0
|
455,0
|
500,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
597,0
|
620,0
|
642,0
|
665,0
|
|
d
Head tube length
|
115,0
|
125,0
|
135,0
|
145,0
|
|
e
Head tube angle
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
|
f
Rake
|
38,0
|
38,0
|
38,0
|
38,0
|
|
g
Trail
|
124,0
|
124,0
|
124,0
|
124,0
|
|
h
Wheelbase
|
1171,0
|
1195,0
|
1219,0
|
1243,0
|
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
428,0
|
|
j
Bottom bracket drop
|
15,0
|
15,0
|
15,0
|
15,0
|
|
k
Stack height
|
618,0
|
627,0
|
636,0
|
645,0
|
|
l
Reach
|
420,0
|
440,0
|
460,0
|
480,0
|
|
m
Standover height
|
759,0
|
761,0
|
762,0
|
776,0
|
|
x
Bottom bracket height
|
340,0
|
340,0
|
340,0
|
340,0
|
|
y
Front center
|
743,0
|
767,0
|
791,0
|
815,0
|
