BikeWise

Canyon Torque:ON 8 2022

E-Bike
MTB Enduro
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
23,74 kg
Front travel
180mm
Rear travel
175mm

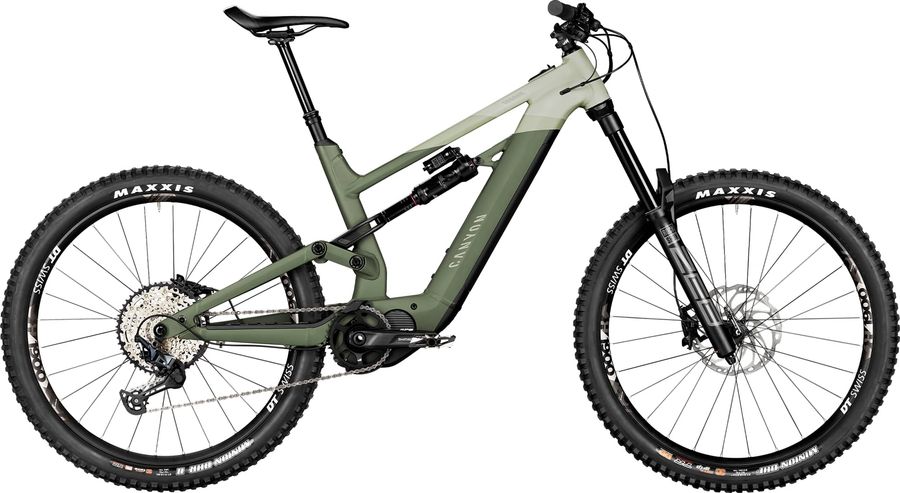

Canyon Torque:ON 8 2022

About the Canyon Torque:ON 8 2022

The Canyon Torque:ON 8 2022 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 23,74 kg.

Features

The Canyon Torque:ON 8 2022 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Canyon Lock-On Grips
Remote
Shimano Steps SC-E7000 Display
Components
Steam
Canyon:ON Stem, 35mm clamp diameter, 40mm length
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Battery
Shimano Steps BT-E8035 - Integrierter Akku für Unterrohr - 504 Wh
Seatpost
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 780mm width, 35mm clamp diameter, 20mm rise
Discs
Shimano EM600 STEPS rear rotor, 203mm, Specifically designed to work with E-MTB speed sensors. ICE TECH design reduces heat build-up and brake fade, center-lock mounting for quick installation/removal | Shimano SLX rotor, 203mm, High-power 4-piston Deore brake, quick pad retraction, compatible with ICE TECH brake pads
Brakes
Shimano SLX BR-M7000
Drivetrain
Crankset
Shimano STEPS e-MTB crank arms, Designed for the rigors of E-MTB riding, 24mm spindle, 160mm crank arms
Motor
Shimano Steps EP8 Motor
Shifter
Shimano SLX, 12-speed, Precise 1x12 shifting system.
Bottom bracket
STEPS, press-fit
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Canyon Torque:ON, Aluminium frame, 175mm of rear suspension, award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-style brake mount (203)
Rear suspension
RockShox Super Deluxe Select 440 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-SEL-B2
Name
Super Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
440
Front suspension
RockShox ZEB DebonAir, Dual Position Air 2231 g
Color
Diffusion Black, Gloss Black
Damper type
Charger R
fork offset
38mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
200mm
Model
FS-ZEB-R-A1
Name
ZEB
Spring
DebonAir, Dual Position Air
Travel (mm)
150mm, 160mm, 170mm, 180mm, 190mm
Upper tube type
38mm aluminum
Weight based on
29" Maxle Stealth 190mm Travel 1.5" Taper Steerer
Weight
2231
Wheel size
27.5", 29"
Wheels
Rims
DT Swiss H-1900 Spline, 27.5", Rear wheel made for the demands of E-MTBs. DT Swiss Hybrid/370 3-pawl hub with steel freehub, Boost 148 spacing, reinforced DT Hybrid 1 spokes, aluminum tubeless-ready DT Swiss 27.5" rim, 35mm inner width | DT Swiss H-1900 Spline, 27.5", Front wheel made for the demands of E-MTBs. DT Swiss Hybrid/370 front hub with Boost 110 spacing, aluminum tubeless-ready DT Swiss 27,5" rim, 30mm inner width
Tires
Maxxis Minion DHF, 27.5x2.5", 3C MaxxTerra compound | Maxxis Minion DHR II, 2.6", EXO+ casing, Tubeless Ready design, 3C MaxxTerra tread compound

Geometry

Size SM MD LG XL
a
Seat tube length
440,0
440,0
460,0
500,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
618,0
645,0
673,0
700,0
d
Head tube length
115,0
125,0
135,0
145,0
e
Head tube angle
63,5º
63,5º
63,5º
63,5º
f
Rake
44,0
45,0
44,0
44,0
g
Trail
128,0
127,0
128,0
128,0
h
Wheelbase
1220,0
1250,0
1279,0
1308,0
i
Chainstay length
436,0
436,0
436,0
436,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
k
Stack height
622,0
631,0
640,0
649,0
l
Reach
441,0
466,0
491,0
516,0
m
Standover height
783,0
786,0
792,0
796,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
y
Front center
784,0
814,0
843,0
872,0
