Commençal ABSOLUT 2020
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Weight
11 kg
Front travel
100mm

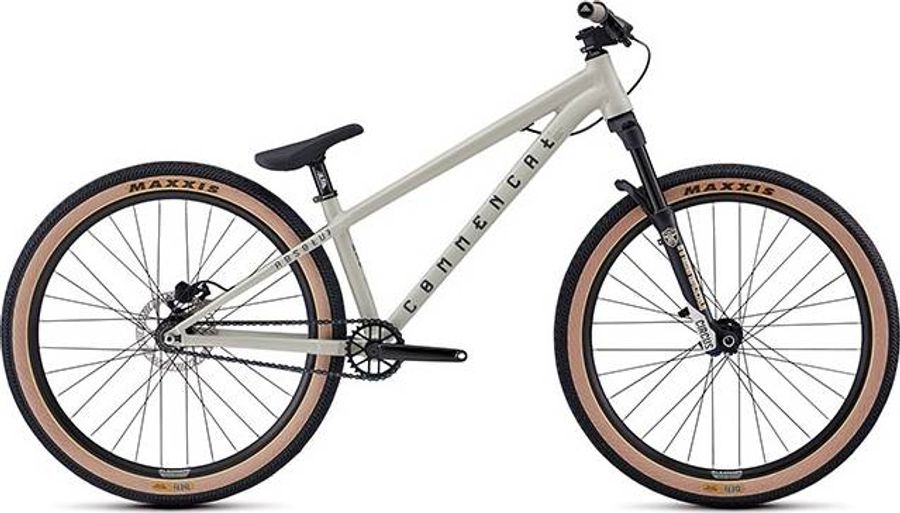

About the Commençal ABSOLUT 2020
The Commençal ABSOLUT 2020 is a Hardtail Mountain Bike with a alloy frame. Its features include hydraulic disc brakes e tapered head tube. The bike weighs approximately 11 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
RIDE ALPHA, DH Grips, grey, Ultra soft compound, single clamp
|
|---|
|
Steam
|
RIDE ALPHA Freeride, 50mm, 31,8mm, 0° angle, 2014 alloy
|
|---|---|
|
Saddle
|
COMMENCAL DJ, soft padding, Pivotal system, additional grip on the sides
|
|
Headset
|
ACROS Fiber cups ZS44/ZS56, ZS44/ZS56, sealed bearings
|
|
Seatpost
|
RIDE ALPHA DJ, alloy 31,6 mm, 300 mm, Pivotal system
|
|
Handlebar
|
RIDE ALPHA, 35mm rise, 760mm, 31,8mm, 7050 alloy, double butted
|
|
Brakes
|
Tektro HD-M275
|
|
Crankset
|
BMX type Crmo, 170mm, 28t, 3 pieces, 19mm spindle
|
|---|---|
|
Cassette
|
13t crmo sprocket
|
|
Bottom bracket
|
Threaded Euro BB, 4 sealed bearings, for 19mm spindle
|
|
Chain
|
KMC Z1
|
|
Frame
|
ABSOLUT 2020, 26'', Alloy 6061, triple butted (T4, T6), with adjustable horizontal chainstays
|
|---|---|
|
Front suspension
|
Manitou Circus Expert
|
|
Rims
|
ALEXRIMS MD25, 32 holes
|
|---|---|
|
Tires
|
MAXXIS DTH, 26x2.3 front / MAXXIS DTH, 26x2.3 rear, 60 TPI, skinwall
|
|
Rear hub
|
NOVATEC DH61SB-HL front / NOVATEC D256SBT rear, 32 holes, 6 holes, singlespeed specific rear hub
|
|
Front hub
|
NOVATEC DH61SB-HL front / NOVATEC D256SBT rear, 32 holes, 6 holes, singlespeed specific rear hub
|
Geometry
| Size | SM | MD | LG |
|---|---|---|---|
|
a
Seat tube length
|
310,0
|
310,0
|
310,0
|
|
b
Seat tube angle
|
72,0º
|
72,0º
|
72,0º
|
|
c
Top tube length
|
572,0
|
592,0
|
617,0
|
|
d
Head tube length
|
120,0
|
120,0
|
120,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
87,0
|
87,0
|
87,0
|
|
h
Wheelbase
|
1032,0
|
1052,0
|
1077,0
|
|
i
Chainstay length
|
385,0
|
385,0
|
385,0
|
|
j
Bottom bracket drop
|
25,0
|
25,0
|
25,0
|
|
k
Stack height
|
561,0
|
561,0
|
561,0
|
|
l
Reach
|
390,0
|
410,0
|
435,0
|
|
m
Standover height
|
667,0
|
667,0
|
667,0
|
|
x
Bottom bracket height
|
318,0
|
318,0
|
318,0
|
|
y
Front center
|
648,0
|
668,0
|
693,0
|
