Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,8 kg
Front travel
180mm
Rear travel
165mm

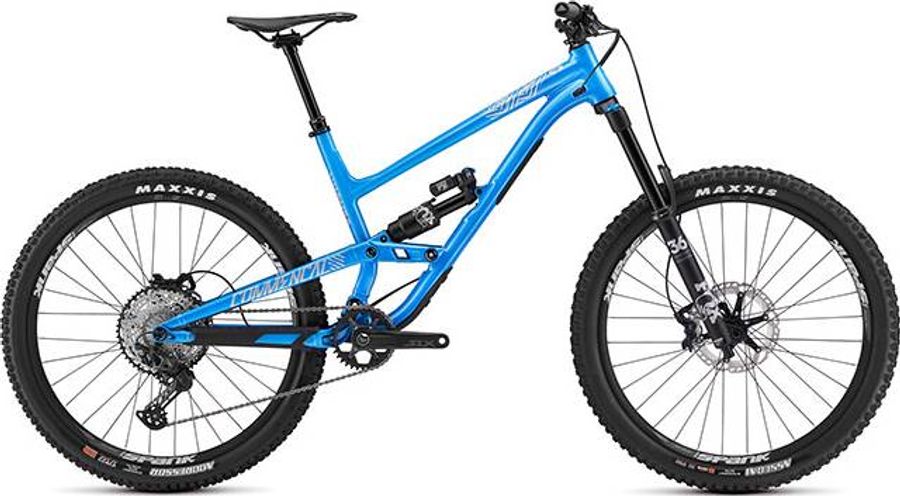

About the Commençal CLASH ESSENTIAL FOX 2020
The Commençal CLASH ESSENTIAL FOX 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 15,8 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
RIDE ALPHA, DH Grips, black, Ultra soft compound, single clamp
|
|---|
|
Steam
|
RIDE ALPHA Freeride, 40 mm, 31,8 mm, 0° angle, 2014 alloy
|
|---|---|
|
Saddle
|
FABRIC Scoop Flat Elite, Crmo rails
|
|
Headset
|
ACROS Alloy cups ZS44/ZS56, ZS44/ZS56, sealed bearings, IPS Technonolgy
|
|
Seatpost
|
KINDSHOCK Ragei, 31.6 mm, Southpaw alloy lever, 125 mm on S, 150 mm on M, L and XL
|
|
Handlebar
|
RIDE ALPHA, 27 mm rise, 780 mm, 31,8 mm, 7050 alloy, double butted
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Crankset
|
SHIMANO SLX, 170 mm, 34t chainring, Hollowtech 2
|
|---|---|
|
Shifter
|
SHIMANO SLX, 12 sp, Rapidefire Plus Technology
|
|
Bottom bracket
|
SHIMANO Pressfit, SMBB71
|
|
Cassette
|
Shimano SLX CS-M7100-12
HYPERGLIDE+
|
|
10-51T 10-51T: 534g |
|
|
Rear derailleur
|
Shimano SLX RD-M7100
313 g
SGS
12s
|
|
|
|
|
Chain
|
Shimano CN-M7100
252 g
|
|
|
|
|
Frame
|
2020 CLASH, 165 mm travel, 27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
|
|---|---|
|
Front suspension
|
Fox 36 Float Performance
|
|
Rear suspension
|
Fox Float X2 Performance
|
|
Rims
|
SPANK Oozy 359, 32 holes, 30.5 mm inner width, tubeless ready
|
|---|---|
|
Tires
|
MAXXIS Assegai, 27.5 x 2.5, front / MAXXIS Aggressor, 27.5 x 2.5, rear, 3C MaxxTerra, EXO, TR, front / EXO, TR, rear
|
|
Rear hub
|
SHIMANO SLX, 32 holes, Centerlock, 15 x 110 mm front, 12 x 148 mm rear, Microspline freehub body
|
|
Front hub
|
SHIMANO SLX, 32 holes, Centerlock, 15 x 110 mm front, 12 x 148 mm rear, Microspline freehub body
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
395,0
|
440,0
|
455,0
|
485,0
|
|
b
Seat tube angle
|
75,5º
|
75,5º
|
75,5º
|
75,5º
|
|
c
Top tube length
|
576,0
|
598,0
|
626,0
|
658,0
|
|
d
Head tube length
|
110,0
|
115,0
|
125,0
|
125,0
|
|
e
Head tube angle
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
|
f
Rake
|
48,0
|
47,0
|
49,0
|
49,0
|
|
g
Trail
|
113,0
|
114,0
|
112,0
|
112,0
|
|
h
Wheelbase
|
1179,0
|
1201,0
|
1230,0
|
1262,0
|
|
i
Chainstay length
|
429,0
|
429,0
|
429,0
|
429,0
|
|
j
Bottom bracket drop
|
12,0
|
12,0
|
12,0
|
12,0
|
|
k
Stack height
|
597,0
|
603,0
|
607,0
|
611,0
|
|
l
Reach
|
417,0
|
437,0
|
462,0
|
492,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
343,0
|
343,0
|
343,0
|
343,0
|
|
y
Front center
|
750,0
|
772,0
|
801,0
|
833,0
|
