BikeWise

Commençal CLASH ORIGIN 2020

MTB Enduro
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,6 kg
Front travel
180mm
Rear travel
165mm

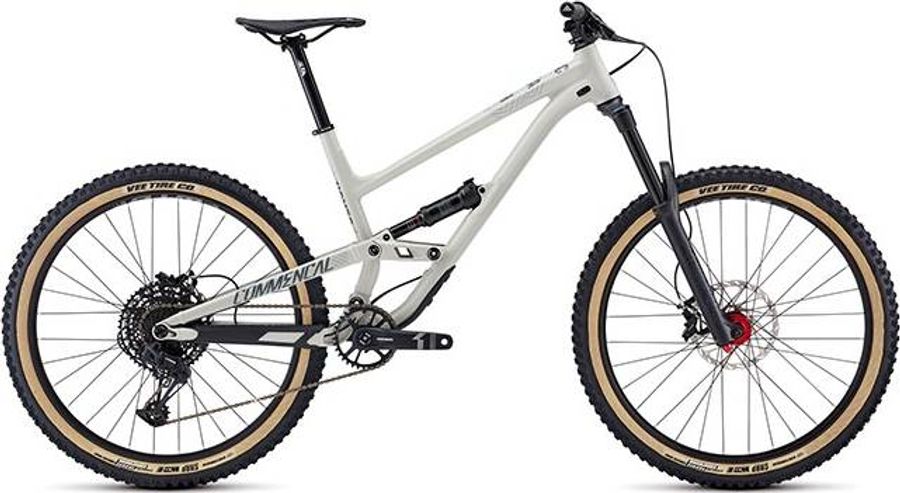

Commençal CLASH ORIGIN 2020

About the Commençal CLASH ORIGIN 2020

The Commençal CLASH ORIGIN 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 15,6 kg.

Features

The Commençal CLASH ORIGIN 2020 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
RIDE ALPHA, DH Grips, black, Ultra soft compound, single clamp
Components
Steam
RIDE ALPHA Freeride, 40 mm, 31,8 mm, 0° angle, 2014 alloy
Saddle
FABRIC Scoop Flat Sport, Steel rails
Headset
ACROS Fiber cups ZS44/ZS56, ZS44/ZS56, sealed bearings, IPS Technology
Seatpost
RIDE ALPHA, 31.6 mm, 400 mm, alloy 6061
Handlebar
RIDE ALPHA, 27 mm rise, 780 mm, 31,8 mm, 6061 alloy, double butted
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
SRAM X1 1000 Eagle, 170 mm, 34t chainring, Boost, DUB
Shifter
SRAM SX Eagle, 12 sp
Bottom bracket
SRAM DUB Pressfit, 92 mm
Cassette
SRAM SX Eagle
Chain
SRAM SX Eagle
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
2020 CLASH, 165 mm travel, 27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Deluxe Select 313 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-SEL-B2
Name
Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
313
Wheels
Rims
WTB ST i30, 32 holes, 30 mm inner width, tubeless ready
Tires
VEE TIRE CO. Snap WCE 27.5 x 2.35 front / VEE TIRE CO. Snap WCE 27.5 x 2.35 rear, Tubeless ready, Tackee Compound, skinwall front / Tubeless ready, Tackee Compound, skinwall rear
Rear hub
FORMULA, sealed bearing rear / loose ball front, 32 holes, 6 bolts, 15 x 110 mm front, 12 x 148 mm rear, standard freehub body, red anodised
Front hub
FORMULA, sealed bearing rear / loose ball front, 32 holes, 6 bolts, 15 x 110 mm front, 12 x 148 mm rear, standard freehub body, red anodised

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
440,0
455,0
485,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
576,0
598,0
626,0
658,0
d
Head tube length
110,0
115,0
125,0
125,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
48,0
47,0
49,0
49,0
g
Trail
113,0
114,0
112,0
112,0
h
Wheelbase
1179,0
1201,0
1230,0
1262,0
i
Chainstay length
429,0
429,0
429,0
429,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
k
Stack height
597,0
603,0
607,0
611,0
l
Reach
417,0
437,0
462,0
492,0
m
Standover height
-
-
-
-
x
Bottom bracket height
343,0
343,0
343,0
343,0
y
Front center
750,0
772,0
801,0
833,0
