Commençal CLASH ORIGIN GREY 2021

MTB Downhill
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,5 kg
Front travel
180mm
Rear travel
170mm

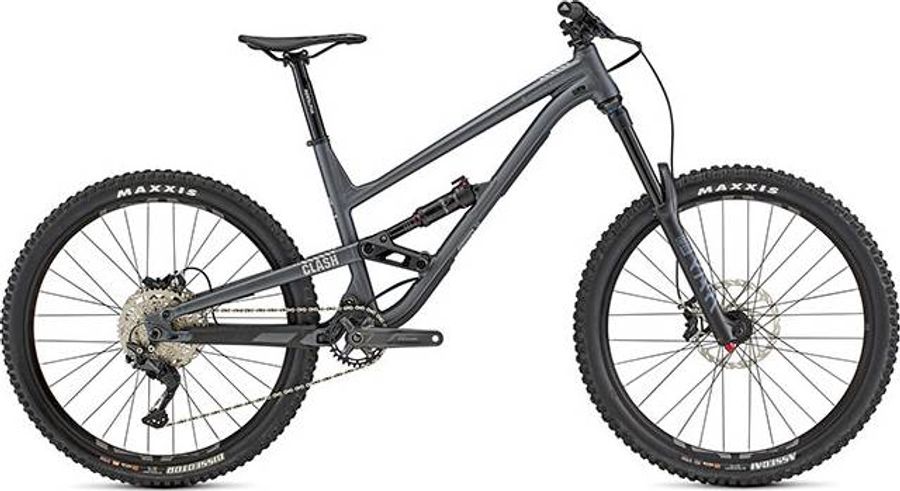

Commençal CLASH ORIGIN GREY 2021

About the Commençal CLASH ORIGIN GREY 2021

The Commençal CLASH ORIGIN GREY 2021 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 15,5 kg.

Features

The Commençal CLASH ORIGIN GREY 2021 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
RIDE ALPHA DH, Ultra-soft compound, single clamp, black
Components
Steam
RIDE ALPHA Freeride 40, 40 mm extension, 31.8 mm
Saddle
FABRIC Scoop Flat Sport, Steel rails
Headset
ACROS ZS44/ZS56, Alloy cups, sealed bearings
Seatpost
RIDE ALPHA, 34.9 mm, 400 mm on S/M, 450 mm on L/X
Handlebar
RIDE ALPHA R27, 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
SHIMANO Deore, 170 mm crank arms, Boost, Chainring: SHIMANO Deore, 34t
Shifter
SHIMANO Deore, 10 sp
Bottom bracket
SHIMANO MT500, Pressfit
Chain
KMC X10
Rear derailleur
Shimano Deore RD-M5120 SGS 11/10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Lower pulley max
46T (1x11/1x10-speed)
42T (2x11/2x10-speed)
Lower pulley min
42T
Model
RD-M5120-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
11/10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Cassette
Shimano Deore CS-M4100-10 HG
Combination names
11-42T
11-46T
Compatible chain
HG-X 10-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M4100-10
Steel gear finish
Plated
Steel gear pieces
10
Type
HG
Frameset
Frame
2021 CLASH, 170 mm travel, 27.5'', Alloy 6069, triple butted tubes, T4, T6. Enduro bearings
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
E13 LG1 DH Base, 27.5'', 32h, 30 mm inner width
Tires
Rear: MAXXIS DISSECTOR 27 EXO+ - Front: MAXXIS ASSEGAI 27 EXO, Rear: 27.5x2.50. 60 TPI. Foldable. 3CMaxxTerra/EXO/TR - Front: 27.5x2.40WT 120TPI. Foldable. 3CMaxxTerra/EXO+/TR
Rear hub
Rear: FORMULA 348A - Front: FORMULA DC-711, Rear: 32h, sealed bearings - Front: 32h, sealed bearings
Front hub
Rear: FORMULA 348A - Front: FORMULA DC-711, Rear: 32h, sealed bearings - Front: 32h, sealed bearings

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
418,0
440,0
465,0
b
Seat tube angle
77,2º
77,2º
77,2º
77,2º
c
Top tube length
583,0
604,0
630,0
663,0
d
Head tube length
110,0
115,0
120,0
125,0
e
Head tube angle
64,0º
64,0º
64,0º
64,5º
f
Rake
37,0
37,0
37,0
37,0
g
Trail
132,0
132,0
132,0
129,0
h
Wheelbase
1213,0
1235,0
1262,0
1289,0
i
Chainstay length
431,0
431,0
431,0
431,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
k
Stack height
616,0
621,0
625,0
632,0
l
Reach
442,0
462,0
487,0
517,0
m
Standover height
725,0
730,0
727,0
732,0
x
Bottom bracket height
343,0
343,0
343,0
343,0
y
Front center
782,0
804,0
831,0
858,0
