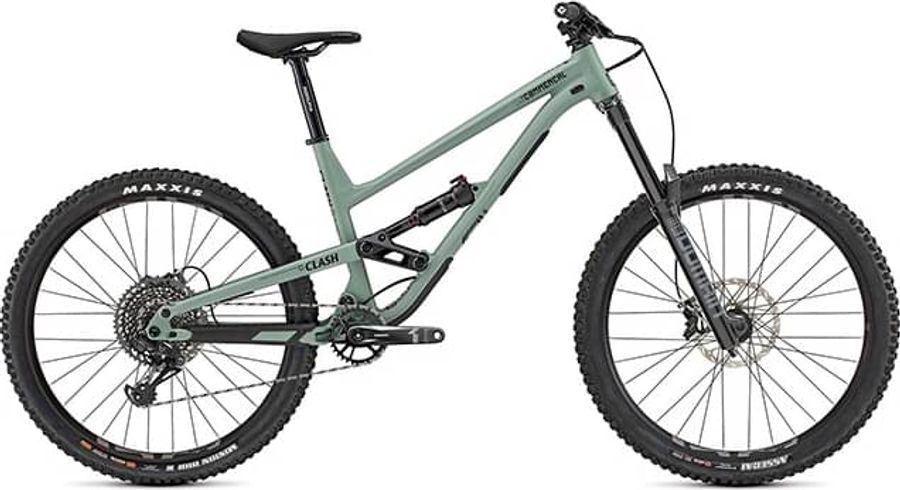

Commençal CLASH ORIGIN HERITAGE 2022

MTB Downhill
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,5 kg
Front travel
180mm
Rear travel
170mm
Commençal CLASH ORIGIN HERITAGE 2022

About the Commençal CLASH ORIGIN HERITAGE 2022

The Commençal CLASH ORIGIN HERITAGE 2022 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , hydraulic disc brakes, and tubeless ready. The bike weighs approximately 15,5 kg.

Features

The Commençal CLASH ORIGIN HERITAGE 2022 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
RIDE ALPHA DH, Ultra-soft compound, single clamp, black
Components
Steam
RIDE ALPHA Freeride 40, 40 mm extension, 31.8 mm
Saddle
SDG Bel Air V3, Steel Rails
Headset
ACROS ZS44/ZS56, Alloy cups, sealed bearings
Seatpost
RIDE ALPHA, 34.9 mm, 400 mm on S/M, 450 mm on L/X
Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL, 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost, Chainring: SRAM X1 1000 Eagle, 34t, Narrow-Wide
Shifter
SRAM SX Eagle, 12s
Bottom bracket
SRAM DUB, Pressfit
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
2022 CLASH, 170 mm travel, 27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Front suspension
RockShox Domain R
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
E13 LG1 DH Base, 27.5'', 32h, 30 mm inner width
Tires
Rear: MAXXIS DHR II - Front: MAXXIS Assegai, Rear: 27.5" x 2.4", WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 27.5" x 2.5", WT, 3C MaxxGrip, EXO+, Tubeless Ready
Rear hub
Rear: FORMULA DC-348A - Front: FORMULA DC-711, Rear: 32h, sealed bearings - Front: 32h, sealed bearings
Front hub
Rear: FORMULA DC-348A - Front: FORMULA DC-711, Rear: 32h, sealed bearings - Front: 32h, sealed bearings

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
418,0
440,0
465,0
b
Seat tube angle
77,2º
77,2º
77,2º
77,1º
c
Top tube length
583,0
604,0
630,0
663,0
d
Head tube length
110,0
115,0
120,0
125,0
e
Head tube angle
64,0º
64,0º
64,0º
64,5º
f
Rake
37,0
37,0
37,0
37,0
g
Trail
132,0
132,0
132,0
129,0
h
Wheelbase
1213,0
1235,0
1262,0
1289,0
i
Chainstay length
431,0
431,0
431,0
431,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
k
Stack height
616,0
621,0
625,0
632,0
l
Reach
442,0
462,0
487,0
517,0
m
Standover height
725,0
730,0
727,0
732,0
x
Bottom bracket height
343,0
343,0
343,0
343,0
y
Front center
782,0
804,0
831,0
858,0
