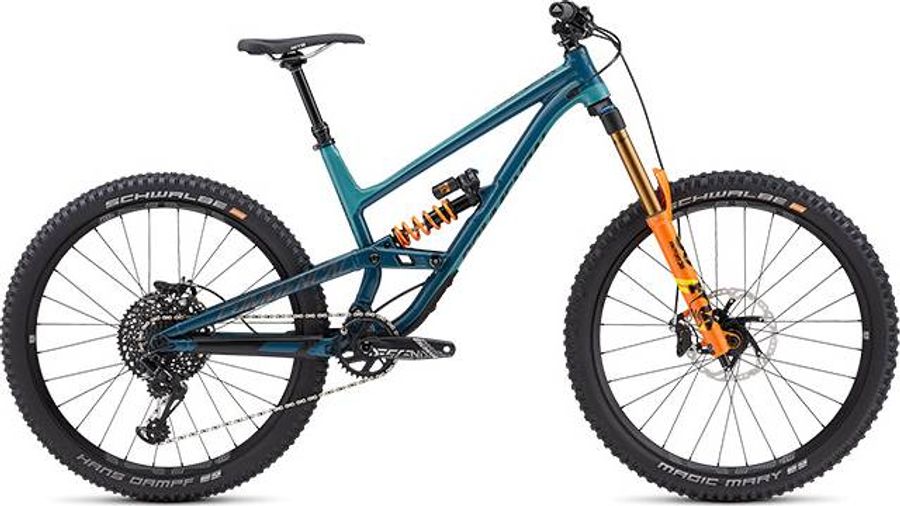

Commençal CLASH SIGNATURE 2019

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
15 kg
Front travel
180mm
Rear travel
165mm
Commençal CLASH SIGNATURE 2019

About the Commençal CLASH SIGNATURE 2019

The Commençal CLASH SIGNATURE 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 15 kg.

Features

The Commençal CLASH SIGNATURE 2019 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
RIDE ALPHA, DH Grips, ultra soft compound, single clamp
Components
Steam
RIDE ALPHA FREERIDE, 40 mm, 31.8 mm, 0° angle
Saddle
WTB SL8 RACE, 142 mm width, cromo rails
Headset
ACROS Alloy ZS44/ZS56, sealed bearings
Seatpost
KINDSHOCK LEV INTEGRA, 31,6 mm, Southpaw alloy lever, 100 mm on S, 125 mm on M, 150 mm on L, 175 mm on XL
Handlebar
RIDE ALPHA, Alloy 7075, 780 mm, 31.8 mm, 30 mm rise
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
SRAM DESCENDANT EAGLE 7K X-Sync, 34T, boost 170 mm on S/M, 175 mm on L/XL
Shifter
SRAM GX EAGLE, 1 x 12 sp
Bottom bracket
SRAM DUB, Press Fit BB 92
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
2019 CLASH, 650b, 165 mm travel
Rear suspension
Fox DHX2 Factory
Front suspension
Fox 36 Factory
Wheels
Rims
E13 TRS wheelset, 28 holes, tubeless ready, 30 mm inner width
Tires
SCHWALBE MAGIC MARY, 27.5 x 2.35, TLE, Addix soft, front, SCHWALBE NEW HANS DAMPF, 27.5 x 2.35, TLE, Addix soft, rear

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
440,0
455,0
485,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
576,0
598,0
626,0
658,0
d
Head tube length
110,0
115,0
125,0
125,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
48,0
47,0
49,0
49,0
g
Trail
113,0
114,0
112,0
112,0
h
Wheelbase
1179,0
1201,0
1230,0
1262,0
i
Chainstay length
429,0
429,0
429,0
429,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
k
Stack height
597,0
603,0
607,0
611,0
l
Reach
417,0
437,0
462,0
492,0
m
Standover height
735,0
740,0
740,0
745,0
x
Bottom bracket height
343,0
343,0
343,0
343,0
y
Front center
750,0
772,0
801,0
833,0
