Groupset
SRAM X01 Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,1 kg
Front travel
180mm
Rear travel
165mm

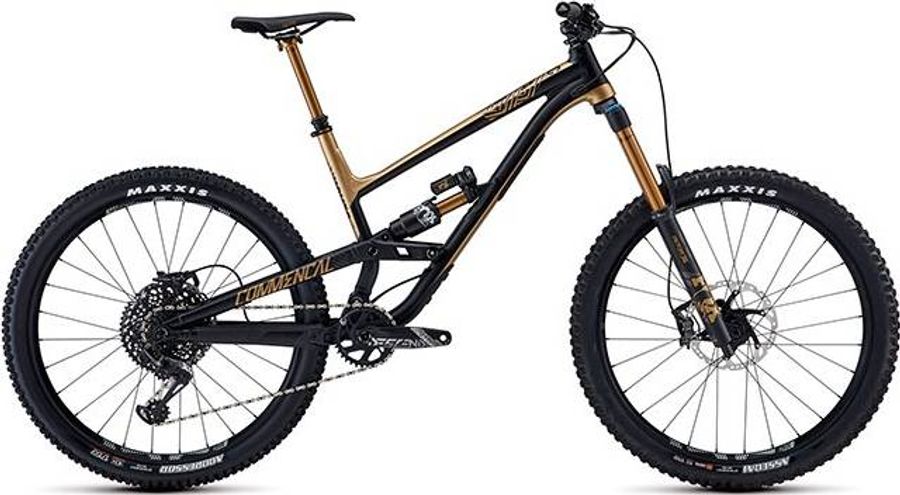

About the Commençal CLASH SIGNATURE 2020
The Commençal CLASH SIGNATURE 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 15,1 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
RIDE ALPHA, DH Grips, black, Ultra soft compound, single clamp
|
|---|
|
Steam
|
RIDE ALPHA Freeride, 40 mm, 31,8 mm, 0° angle, 2014 alloy
|
|---|---|
|
Saddle
|
WTB SL8 Race, 142 mm width, Cromoly rails
|
|
Headset
|
ACROS Alloy cups ZS44/ZS56, ZS44/ZS56, sealed bearings, IPS Technology
|
|
Seatpost
|
FOX Transfer Factory, 31.6 mm, RFE lever, 100 mm on S, 125 mm on M, 150 mm on L, 175 mm on XL
|
|
Handlebar
|
RIDE ALPHA, 27 mm rise, 780 mm, 31,8 mm, 7050 alloy, double butted
|
|
Brakes
|
Shimano Deore XT BR-M8000
403 (BL-M8000) g
Hydraulic disc brake
2 piston
|
|
G03A Resin J03A Resin BL-T8000 SM-RT86 |
|
|
Crankset
|
SRAM Descendant 7K Eagle, 170 mm, 34t chainring, Boost, DUB
|
|---|---|
|
Shifter
|
SRAM GX Eagle, 12 sp
|
|
Bottom bracket
|
SRAM DUB Pressfit, 92 mm
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM GX Eagle
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
2020 CLASH, 165 mm travel, 27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
|
|---|---|
|
Rear suspension
|
Fox Float X2 Factory
|
|
Front suspension
|
Fox 36 Float Factory
|
|
Rims
|
E13 LG1 EN Plus, 28 holes, 30 mm inner width, tubeless ready
|
|---|---|
|
Tires
|
MAXXIS Assegai, 27.5 x 2.5 front / MAXXIS Aggressor, 27.5 x 2.5 rear, 3C MaxxTerra, EXO, TR front / EXO, TR rear
|
|
Rear hub
|
E13 LG1 EN Plus, 28 holes, 6 bolts, 15 x 110 mm front, 12 x 148 mm rear, XD freehub body
|
|
Front hub
|
E13 LG1 EN Plus, 28 holes, 6 bolts, 15 x 110 mm front, 12 x 148 mm rear, XD freehub body
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
395,0
|
440,0
|
455,0
|
485,0
|
|
b
Seat tube angle
|
75,5º
|
75,5º
|
75,5º
|
75,5º
|
|
c
Top tube length
|
576,0
|
598,0
|
626,0
|
658,0
|
|
d
Head tube length
|
110,0
|
115,0
|
125,0
|
125,0
|
|
e
Head tube angle
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
|
f
Rake
|
48,0
|
47,0
|
49,0
|
49,0
|
|
g
Trail
|
113,0
|
114,0
|
112,0
|
112,0
|
|
h
Wheelbase
|
1179,0
|
1201,0
|
1230,0
|
1262,0
|
|
i
Chainstay length
|
429,0
|
429,0
|
429,0
|
429,0
|
|
j
Bottom bracket drop
|
12,0
|
12,0
|
12,0
|
12,0
|
|
k
Stack height
|
597,0
|
603,0
|
607,0
|
611,0
|
|
l
Reach
|
417,0
|
437,0
|
462,0
|
492,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
343,0
|
343,0
|
343,0
|
343,0
|
|
y
Front center
|
750,0
|
772,0
|
801,0
|
833,0
|
