Commençal FURIOUS ORIGIN 2018

MTB Downhill
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
17,3 kg
Front travel
200mm
Rear travel
200mm

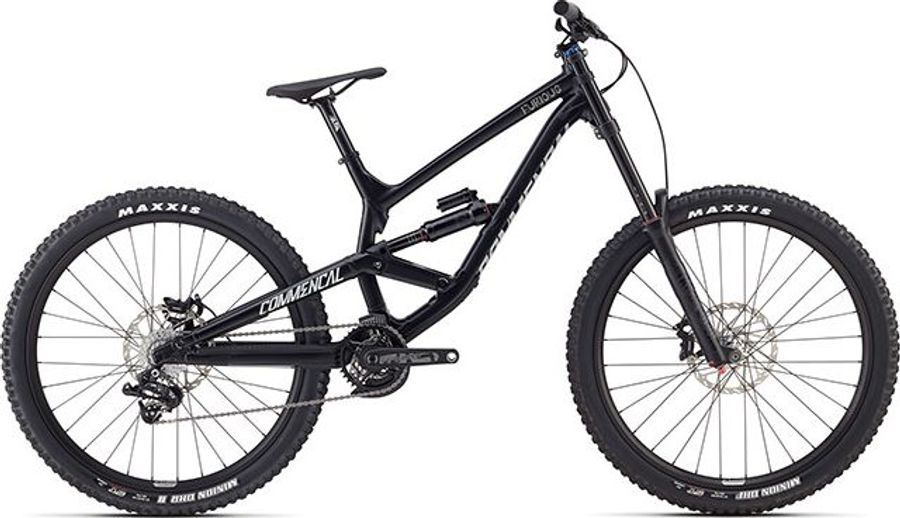

Commençal FURIOUS ORIGIN 2018

About the Commençal FURIOUS ORIGIN 2018

The Commençal FURIOUS ORIGIN 2018 is a Full suspension Downhill Mountain Bike with a alloy frame. Its features include hydraulic disc brakes. The bike weighs approximately 17,3 kg.

Features

The Commençal FURIOUS ORIGIN 2018 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
RIDE ALPHA, ergonomic grips, plastic one lock, super soft compound
Components
Steam
RIDE ALPHA DH Direct Mount, 50 mm, 31,8 mm
Saddle
RIDE ALPHA 245 mm saddle, CrMo rails
Headset
RIDE ALPHA ZS44 / ZS56
Seatpost
NEW RIDE ALPHA DH, 31,6 mm, no offset, 300 mm
Handlebar
RIDE ALPHA, Alloy 7075, double butted, 30 mm rise, 780 mm, 31,8 mm
Brake lever
SRAM Guide RE
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Chain
YABAN S9
Crankset
E13 LG1, 36T
Shifter
SRAM X5, 9 speed
Chain guide
E13 TRS, steel
Bottom bracket
E13 Pressfit BB 92
Cassette
SRAM PG-950 9s
Cog finish cassete
Silver
Cog sizes
11-26t:11,13,14,15,17,19,21,23,26
11-28t:11,12,13,14,16,18,21,24,28
11-32t:11,12,14,16,18,21,24,28,32
11-34t:11,13,15,17,20,23,26,30,34
12-23t:12,13,14,15,16,17,19,21,23
12-26t:12,13,14,15,17,18,21,23,26
Gearing
11-26t
11-28t
11-32t
11-34t
12-23t
12-26t
Model
CS-PG-950-A1
Name
PG-950 Cassette
Speed
9s
Technology cassete
PG
Rear derailleur
SRAM X7 Rear Derailleur 10s, 9s
Cable pull ratio
1:1, Exact actuation
Cage
Long, Medium, Short
Cage material
Aluminum, Carbon
Color
Black, Grey, Silver, Storm Grey
Max tooth
36
Model
RD-X7-A1
Name
X7 Rear Derailleur
Pulley bearings material
Standard, Steel
Speed
10s, 9s
Frameset
Frame
2018 FURIOUS 650B Travel 200 mm
Front suspension
RockShox Boxxer RC Coil
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm, 48mm
Maximum rotor size
210mm
Minimum rotor size
160mm, 200mm
Model
FS-BXR-RC-B2
Name
BoXXer RC
Spring
Coil
Travel (mm)
200mm
Upper tube type
35mm tapered aluminum
Wheel size
26", 27.5"
Rear suspension
RockShox Super Deluxe R
Body eyelet
Bearing, Standard
Compression tune
L, L1, M
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-R-B1
Name
Super Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
ALEXRIMS FR 37, 32 holes, 30 mm inner width
Tires
MAXXIS MINION DHF 27.5" x 2.5" WT, 2 compound, DH Casing front and MAXXIS MINION DHRII 27.5" x 2.4" WT 2 compound DH Casing rear
Spokes
Pillar, stainless steel, 2mm, black, Nylock, 32 count front and rear
Rear hub
FORMULA DH, 32 holes, sealed bearings
Front hub
FORMULA DH, 32 holes, sealed bearings

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
400,0
400,0
400,0
b
Seat tube angle
63,0º
63,0º
63,0º
63,0º
c
Top tube length
550,0
570,0
595,0
625,0
d
Head tube length
125,0
125,0
125,0
125,0
e
Head tube angle
63,5º
63,5º
63,5º
63,5º
f
Rake
51,0
46,0
47,0
47,0
g
Trail
120,0
126,0
125,0
125,0
h
Wheelbase
1199,0
1214,0
1240,0
1270,0
i
Chainstay length
440,0
440,0
440,0
440,0
j
Bottom bracket drop
7,0
7,0
7,0
7,0
k
Stack height
623,0
623,0
623,0
623,0
l
Reach
395,0
415,0
440,0
470,0
m
Standover height
740,0
740,0
740,0
740,0
x
Bottom bracket height
348,0
348,0
348,0
348,0
y
Front center
759,0
774,0
800,0
830,0
