Commençal FURIOUS SIGNATURE 2020

MTB Downhill
Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
16,6 kg
Front travel
200mm
Rear travel
200mm

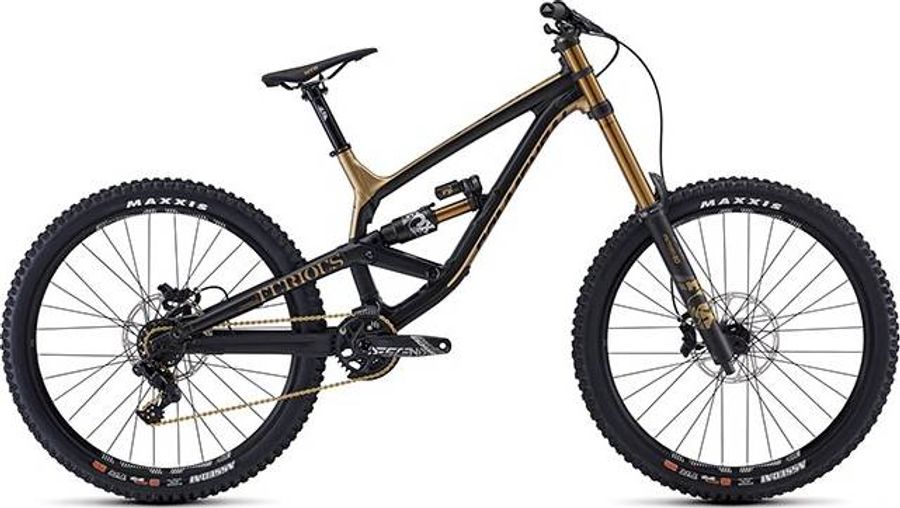

Commençal FURIOUS SIGNATURE 2020

About the Commençal FURIOUS SIGNATURE 2020

The Commençal FURIOUS SIGNATURE 2020 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 7 gears (1x7). Its features include boost 110 , hydraulic disc brakes, and tubeless ready. The bike weighs approximately 16,6 kg.

Features

The Commençal FURIOUS SIGNATURE 2020 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
RIDE ALPHA, DH Grips, black, Ultra soft compound, single clamp
Components
Steam
RIDE ALPHA DH, 40 mm, 31,8 mm, direct mount, 0° angle, 6061 alloy
Saddle
WTB High Tail, 128 mm width, Cromoly rails
Headset
ACROS Alloy cups ZS44 / ZS56, ZS44 / ZS56, sealed bearings
Seatpost
RIDE ALPHA Super Light, 31.6 mm, 300 mm, alloy 7075
Handlebar
RIDE ALPHA, 27 mm rise, 780 mm, 31,8 mm, 7050 alloy, double butted
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM Descendant DH, 165 mm, 34t chainring, Boost, DUB
Shifter
SRAM GX DH, 7 sp
Chain guide
E13 TRS Plus, ISCG05, 32-34t
Bottom bracket
SRAM DUB Pressfit, 107 mm
Rear derailleur
SRAM GX DH 7s
Cable pull ratio
Exact actuation
Cage
Medium
Cage material
Aluminum
Color
Black
Max tooth
28
Model
RD-GX-1DH-A3
Name
GX DH 1x X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
7s
Cassette
SRAM GX DH
Chain
KMC X11
Frameset
Frame
2020 FURIOUS, 200 mm travel, 27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Front suspension
Fox 40 Float Factory
Rear suspension
Fox Float X2 Factory
Wheels
Rims
E13 LG1 DH Plus, 32 holes, 30 mm inner width, tubeless ready
Tires
MAXXIS Assegai, 27.5 x 2.5 WT, front / MAXXIS Assegai, 27.5 x 2.5 WT, rear, Double Down casing, 3C MaxxTerra coumpound, TR, front / Double Down casing, 3C MaxxTerra coumpound, TR, rear
Rear hub
NOVATEC sealed bearings, 32 holes, 6 bolts, 20 x 110 mm front, 12 x 150 mm rear, standard freehub body
Front hub
NOVATEC sealed bearings, 32 holes, 6 bolts, 20 x 110 mm front, 12 x 150 mm rear, standard freehub body

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
400,0
400,0
400,0
b
Seat tube angle
63,0º
63,0º
63,0º
63,0º
c
Top tube length
565,0
585,0
610,0
640,0
d
Head tube length
125,0
125,0
125,0
125,0
e
Head tube angle
63,5º
63,5º
63,5º
63,5º
f
Rake
47,0
46,0
47,0
47,0
g
Trail
125,0
126,0
125,0
125,0
h
Wheelbase
1210,0
1229,0
1255,0
1285,0
i
Chainstay length
440,0
440,0
440,0
440,0
j
Bottom bracket drop
7,0
7,0
7,0
7,0
k
Stack height
623,0
623,0
623,0
623,0
l
Reach
410,0
430,0
455,0
485,0
m
Standover height
740,0
740,0
740,0
740,0
x
Bottom bracket height
348,0
348,0
348,0
348,0
y
Front center
770,0
789,0
815,0
845,0
