Commençal META AM 29 SRAM EDITION 2019

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
14,8 kg
Front travel
170mm
Rear travel
160mm

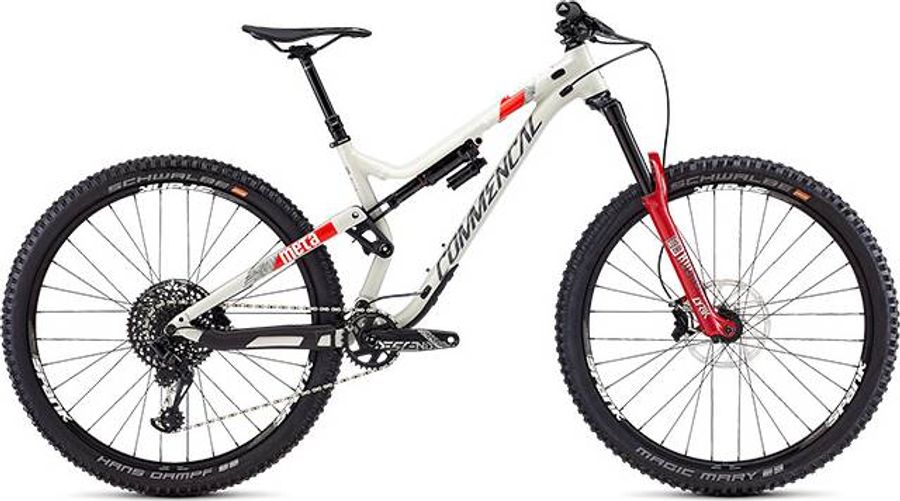

Commençal META AM 29 SRAM EDITION 2019

About the Commençal META AM 29 SRAM EDITION 2019

The Commençal META AM 29 SRAM EDITION 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 14,8 kg.

Features

The Commençal META AM 29 SRAM EDITION 2019 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
RIDE ALPHA, DH Grips, ultra soft compound, single clamp
Components
Steam
RIDE ALPHA, Aluminium 2014, 40 mm, 31.8 mm, 0° Angle
Saddle
FABRIC SCOOP FLAT ELITE, 142 mm width, vaccum, cromo rails, black
Headset
ACROS Alloy ZS44/ZS56, sealed bearings
Seatpost
ROCKSHOX REVERB STEALTH, 31.6 mm, with new 1x remote Travel: 100 mm on S, 125 mm on M, 150 mm on L and 170 mm on XL
Handlebar
RIDE ALPHA, Alloy 7075, double butted, 20 mm rise, 780 mm, 31.8 mm
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM DESCENDANT EAGLE 7K X-Sync, 32 t, boost 170 mm on S/M/L/XL
Shifter
SRAM GX EAGLE, 1 x 12 speed
Bottom bracket
SRAM DUB Pressfit
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
2019 META AM 29 160 mm travel
Front suspension
RockShox Lyrik RC2 DebonAir
Color
BoXXer Red, Diffusion Black, Gloss Black
Damper type
Charger 2 RC2
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-RC2-C1
Name
Lyrik RC2
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe RCT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, M
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-RCT-B1
Name
Super Deluxe RCT
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
SPANK OOZY 350, 32 holes, 30 mm inner width, tubeless ready
Tires
SCHWALBE MAGIC MARY, 29 x 2.35, TLE, Addix soft, front, SCHWALBE NEW HANS DAMPF, 29 x 2.35, TLE, Addix soft, rear
Rear hub
FORMULA, high engagement, 32 holes, sealed bearings
Front hub
FORMULA, high engagement, 32 holes, sealed bearings

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
465,0
495,0
b
Seat tube angle
76,5º
76,5º
76,5º
76,5º
c
Top tube length
563,0
586,0
619,0
644,0
d
Head tube length
105,0
110,0
115,0
120,0
e
Head tube angle
65,5º
65,5º
65,5º
66,0º
f
Rake
51,0
51,0
51,0
56,0
g
Trail
115,0
115,0
115,0
105,0
h
Wheelbase
1183,0
1208,0
1233,0
1257,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
k
Stack height
624,0
629,0
633,5
638,0
l
Reach
423,0
445,0
468,0
491,0
m
Standover height
740,0
750,0
750,0
750,0
x
Bottom bracket height
349,0
349,0
349,0
349,0
y
Front center
752,0
777,0
802,0
826,0
