Commençal META AM 29 WORLDS EDITION 2020

MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
15,3 kg
Front travel
170mm
Rear travel
160mm

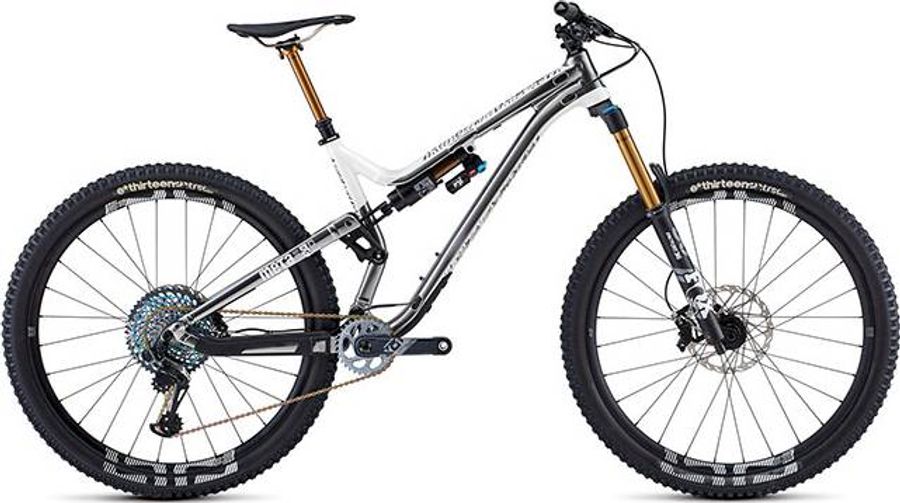

Commençal META AM 29 WORLDS EDITION 2020

About the Commençal META AM 29 WORLDS EDITION 2020

The Commençal META AM 29 WORLDS EDITION 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 15,3 kg.

Features

The Commençal META AM 29 WORLDS EDITION 2020 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
RIDE ALPHA, DH Grips, black, Ultra soft compound, single clamp
Components
Steam
TRUVATIV Descendant, 40 mm, 35 mm, 0° angle, 7075 alloy
Saddle
FABRIC Scoop Flat Race, Ti/alloy rails
Headset
ACROS Alloy cups ZS44/ZS56, ZS44/ZS56, sealed bearings, IPS Technonolgy
Seatpost
FOX Transfer Factory, 31.6 mm, RFE lever, 100 mm on S, 125 mm on M, 150 mm on L, 175 mm on XL
Handlebar
TRUVATIV Descendant DH, 25 mm rise, 800 mm, 35 mm, 7050 alloy, double butted
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM XO1 Eagle, 170 mm, 32t chainring, Boost, DUB, grey
Shifter
SRAM XO1 Eagle, 12 sp
Bottom bracket
SRAM DUB Pressfit, 92 mm
Chain
SRAM Eagle XX1 Rainbow
Cassette
SRAM XX1
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
2020 META AM 29, 160 mm travel, 29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Rear suspension
Fox Float X2 Factory
Front suspension
Fox 36 Float Factory
Wheels
Rims
E13 LG1 EN Race Carbon, 28 holes, 30 mm inner width, tubeless ready
Tires
E13 TRS All-Terrain Race front / E13 TRS All-Terrain Race rear, 29x2.35, single ply, Mopo compound, front / 29x2.35, single ply, Mopo compound, rear
Rear hub
E13 LG1 EN Race Carbon, 28 holes, 6 bolts, 15 x 110 mm front, 12 x 148 mm rear, XD freehub body
Front hub
E13 LG1 EN Race Carbon, 28 holes, 6 bolts, 15 x 110 mm front, 12 x 148 mm rear, XD freehub body

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
465,0
495,0
b
Seat tube angle
76,5º
76,5º
76,5º
76,5º
c
Top tube length
573,0
596,0
620,0
644,0
d
Head tube length
105,0
110,0
115,0
120,0
e
Head tube angle
65,5º
65,5º
65,5º
66,0º
f
Rake
51,0
51,0
51,0
56,0
g
Trail
115,0
115,0
115,0
105,0
h
Wheelbase
1183,0
1208,0
1233,0
1257,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
k
Stack height
624,5
629,0
633,5
638,0
l
Reach
423,0
445,0
468,0
491,0
m
Standover height
-
-
-
-
x
Bottom bracket height
349,0
349,0
349,0
349,0
y
Front center
752,0
777,0
802,0
826,0
