Commençal META AM V4.2 BRITISH COLUMBIA 2018

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,2 kg
Front travel
170mm
Rear travel
160mm

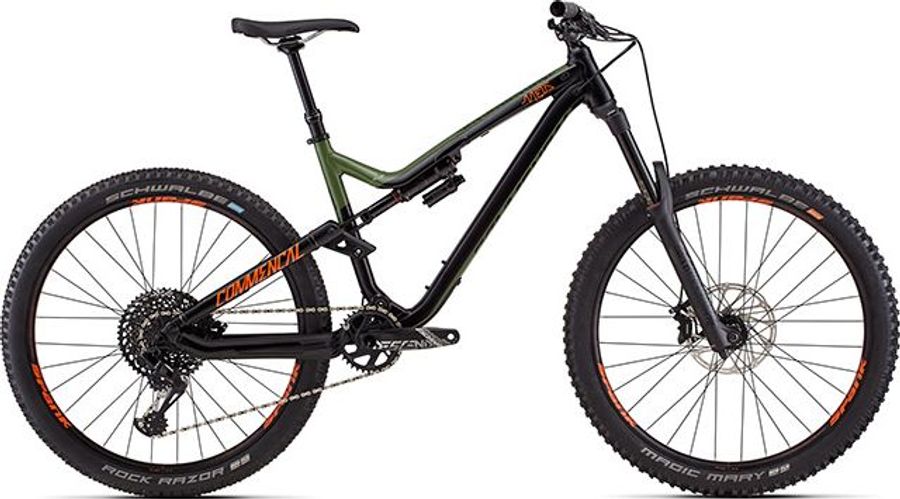

Commençal META AM V4.2 BRITISH COLUMBIA 2018

About the Commençal META AM V4.2 BRITISH COLUMBIA 2018

The Commençal META AM V4.2 BRITISH COLUMBIA 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain. Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 14,2 kg.

Features

The Commençal META AM V4.2 BRITISH COLUMBIA 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
CHROMAG SQUAREWAVE, Black
Components
Steam
CHROMAG HIFI V2, 40 mm length, Ø31.8 mm, black
Saddle
WTB VOLT RACE
Headset
RIDE ALPHA ZS44 / ZS56
Seatpost
KS LEV INTEGRA, 31,6 mm, 125 mm travel on S/M and 150 mm on L/XL, southpaw alloy lever
Handlebar
CHROMAG FUBAR OSX, double butted, 25 mm rise, 780 mm, Ø31.8 mm, black
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Crankset
SRAM DESCENDANT EAGLE 7K X-Sync, 34T, boost 170 mm on S/M, 175 mm on L/XL
Shifter
SRAM GX EAGLE 1 x 12 speed
Bottom bracket
SRAM GXP Press Fit BB92
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
2018 META AM V4.2 650B Travel 160 mm
Front suspension
RockShox Lyrik RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Charger 2
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-RC-C2
Name
Lyrik RC
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe RCT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, M
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-RCT-B1
Name
Super Deluxe RCT
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
SPANK OOZY 350 WHEELSET, 30 mm inner width, 32 holes, orange team logos
Tires
SCHWALBE MAGIC MARY 650 x 2.35, Addix Soft, SnakeSkin Front, SCHWALBE ROCK RAZOR 650 x 2.35, Addix SpeedGrip, SnakeSkin Rear

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
490,0
520,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
580,0
603,0
628,0
653,0
d
Head tube length
110,0
115,0
120,0
125,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
f
Rake
43,0
42,0
43,0
43,0
g
Trail
115,0
116,0
115,0
115,0
h
Wheelbase
1166,0
1190,0
1215,0
1241,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
k
Stack height
602,0
608,0
612,0
616,0
l
Reach
413,0
435,0
458,0
482,0
m
Standover height
705,0
715,0
743,0
750,0
x
Bottom bracket height
343,0
343,0
343,0
343,0
y
Front center
729,0
753,0
778,0
804,0
