Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,3 kg
Front travel
170mm
Rear travel
160mm

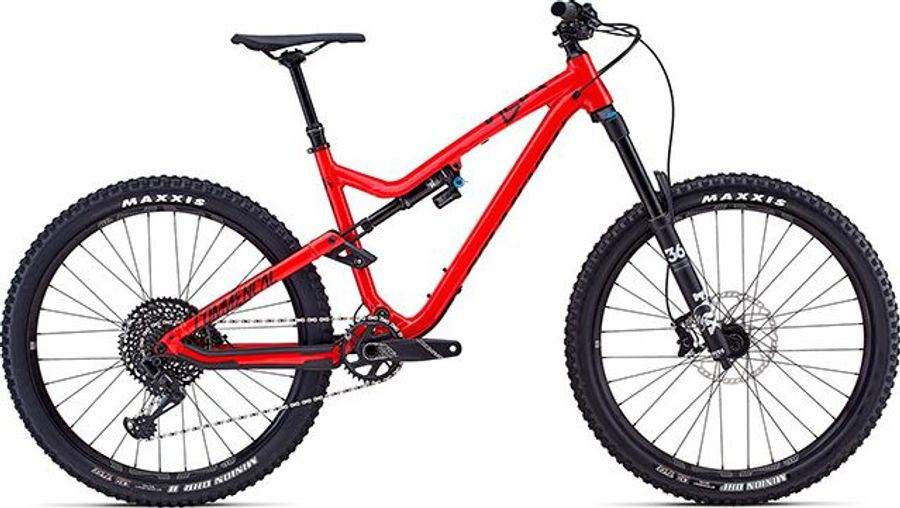

About the Commençal META AM V4.2 ESSENTIAL 2018
The Commençal META AM V4.2 ESSENTIAL 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain. Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 14,3 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
RIDE ALPHA, ergonomic grips, plastic one lock, super soft compound
|
|---|
|
Steam
|
NEW RIDE ALPHA, aluminium 6061, 40 mm, 31.8 mm, 0° angle
|
|---|---|
|
Saddle
|
RIDE ALPHA 278 mm, CrMo rails
|
|
Headset
|
RIDE ALPHA ZS44 / ZS56
|
|
Seatpost
|
KS LEV INTEGRA, 31.6 mm, 100 mm on S, 125 mm travel on M and 150 mm on L/XL, southpaw alloy lever
|
|
Handlebar
|
RIDE ALPHA, Alloy 7075, double butted, 30 mm rise, 780 mm, 31.8 mm
|
|
Brake lever
|
Shimano SLX
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Crankset
|
SRAM DESCENDANT EAGLE 6K X-Sync, 34T, boost 170 mm on S/M, 175 mm on L/XL
|
|---|---|
|
Shifter
|
SRAM GX EAGLE 1 x 12 speed
|
|
Bottom bracket
|
SRAM GXP Press Fit BB92
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
2018 META AM V4.2 650B travel 160 mm
|
|---|---|
|
Rear suspension
|
Fox Float DPX2 Performance
|
|
Front suspension
|
Fox 36 Float Performance
|
|
Rims
|
E13 TRS, 32 holes, tubeless ready, 30 mm inner width
|
|---|---|
|
Tires
|
MAXXIS MINION DHF 27.5" x 2.5" WT EXO / TR / 2C front and MAXXIS DHRII 27.5" x 2.4" WT EXO / TR / 2C rear
|
|
Spokes
|
Pillar, stainless steel, 2mm, black, Nylock, 32 count front and rear
|
|
Rear hub
|
FORMULA, 32 holes, sealed bearings
|
|
Front hub
|
FORMULA, 32 holes, sealed bearings
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
440,0
|
490,0
|
520,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
580,0
|
603,0
|
628,0
|
653,0
|
|
d
Head tube length
|
110,0
|
115,0
|
120,0
|
125,0
|
|
e
Head tube angle
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
|
f
Rake
|
43,0
|
42,0
|
43,0
|
43,0
|
|
g
Trail
|
115,0
|
116,0
|
115,0
|
115,0
|
|
h
Wheelbase
|
1166,0
|
1190,0
|
1215,0
|
1241,0
|
|
i
Chainstay length
|
437,0
|
437,0
|
437,0
|
437,0
|
|
j
Bottom bracket drop
|
12,0
|
12,0
|
12,0
|
12,0
|
|
k
Stack height
|
602,0
|
608,0
|
612,0
|
616,0
|
|
l
Reach
|
413,0
|
435,0
|
458,0
|
482,0
|
|
m
Standover height
|
705,0
|
715,0
|
743,0
|
750,0
|
|
x
Bottom bracket height
|
343,0
|
343,0
|
343,0
|
343,0
|
|
y
Front center
|
729,0
|
753,0
|
778,0
|
804,0
|
