Commençal META HT AM ESSENTIAL 2019

MTB Enduro
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,7 kg
Front travel
160mm

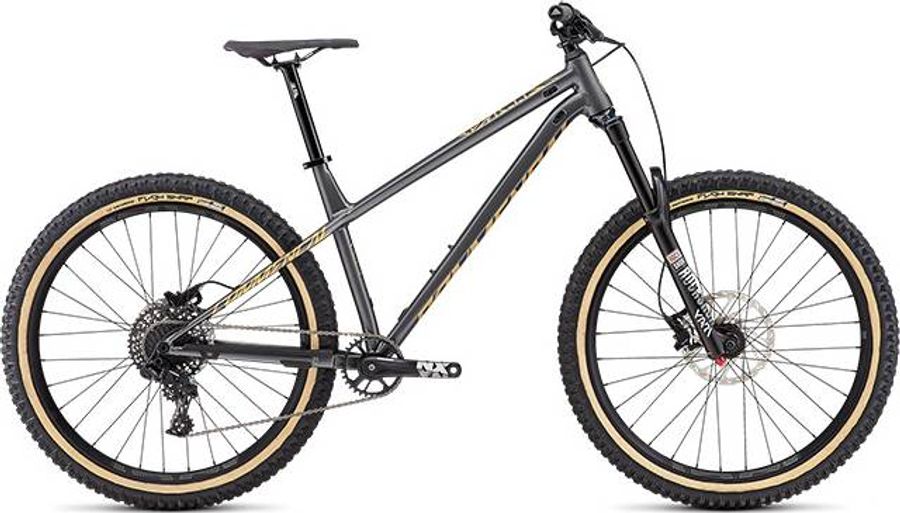

Commençal META HT AM ESSENTIAL 2019

About the Commençal META HT AM ESSENTIAL 2019

The Commençal META HT AM ESSENTIAL 2019 is a Hardtail Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include internal routing, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 13,7 kg.

Features

The Commençal META HT AM ESSENTIAL 2019 has 3 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
RIDE ALPHA, DH Grips, ultra soft compound, single clamp
Components
Steam
RIDE ALPHA FREERIDE, 40 mm, 31.8 mm, 0° angle
Saddle
RIDE ALPHA 278 mm, CrMo rails
Headset
ACROS Fiber ZS44/ZS56, sealed bearings
Seatpost
RIDE ALPHA, 31.6 mm, no offset, 400 mm
Handlebar
RIDE ALPHA, Alloy 7075, 780 mm, 31.8 mm, 30 mm rise
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Crankset
SRAM NX, 32 t, 170 mm on S/M, 175 mm on L/XL
Shifter
SRAM NX, 1 x 11 sp
Bottom bracket
SRAM Power Spline
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
2019 META HT AM, internal cable routing, 27.5’
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Wheels
Rims
E13 TRS, 32 holes, 35 mm inner width, tubeless ready
Tires
VEETIRECO FLOW SNAPP, 27,5 x 2,6, Skinwall, 72 TPI front and rear (No Tubeless Ready)
Rear hub
FORMULA, 32 holes, sealed bearings
Front hub
FORMULA, 32 holes, sealed bearings

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
490,0
520,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
581,0
602,0
628,0
655,0
d
Head tube length
115,0
120,0
125,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
115,0
115,0
115,0
115,0
h
Wheelbase
1152,0
1174,0
1201,0
1228,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
630,0
634,0
639,0
643,0
l
Reach
400,0
420,0
445,0
470,0
m
Standover height
725,0
735,0
747,0
796,0
x
Bottom bracket height
315,0
315,0
315,0
315,0
y
Front center
727,0
749,0
776,0
803,0
