Commençal META HT AM ESSENTIAL 2021

MTB Enduro
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,8 kg
Front travel
160mm
Commençal META HT AM ESSENTIAL 2021

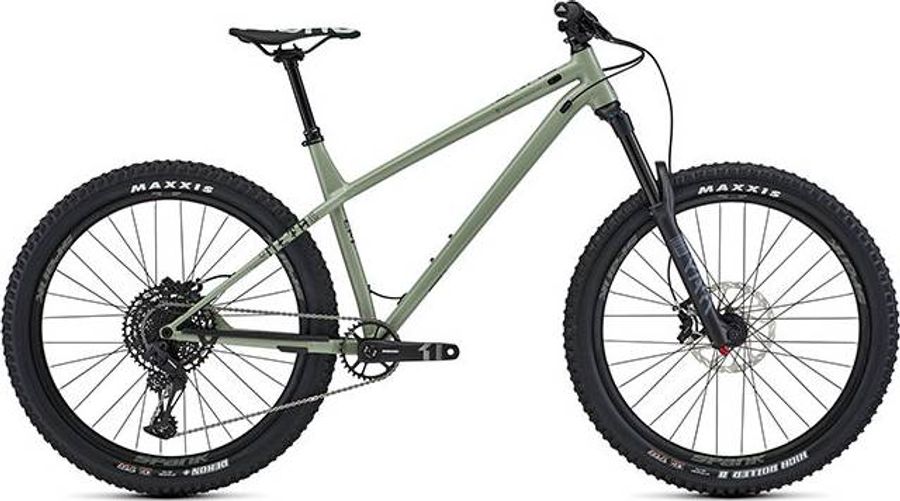

About the Commençal META HT AM ESSENTIAL 2021

The Commençal META HT AM ESSENTIAL 2021 is a Hardtail Enduro Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 13,8 kg.

Features

The Commençal META HT AM ESSENTIAL 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
RIDE ALPHA DH, Ultra-soft compound, single clamp, black
Components
Steam
RIDE ALPHA Freeride 40, 40 mm extension, 31,8 mm
Saddle
FABRIC Scoop Flat Sport, Steel rails
Headset
ACROS ZS44 / ZS56, Alloy cups, sealed bearings
Seatpost
KS Rage-I, 31,6 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remote
Handlebar
RIDE ALPHA R27, 31,8 mm, 780 mm width, 27 mm rise, Alloy 6061
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost, Chainring: SRAM X1 1000 Eagle, 32t, Narrow-Wide
Shifter
SRAM SX Eagle, 12 sp
Bottom bracket
SRAM DUB, Threaded
Chain
SRAM NX
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
2021 Meta HT AM, Alloy 6061, triple butted tubes, T4, T6.
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Wheels
Rims
SPANK Oozy 395+, 27.5'', 32h, 35 mm inner width
Tires
Rear: MAXXIS RekonFront: MAXXIS High Roller II, Rear: 27,5 x 2.8, EXO, Tubeless Ready - Front: 27,5 x 2.8, EXO, Tubeless Ready
Rear hub
Rear: FORMULA DC-348AFront: FORMULA DC-711, Rear: 32h, sealed bearings - Front: 32h, sealed bearings
Front hub
Rear: FORMULA DC-348AFront: FORMULA DC-711, Rear: 32h, sealed bearings - Front: 32h, sealed bearings

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
465,0
490,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
578,0
599,0
625,0
652,0
d
Head tube length
115,0
120,0
125,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
115,0
115,0
115,0
115,0
h
Wheelbase
1153,0
1175,0
1202,0
1229,0
i
Chainstay length
429,0
429,0
429,0
429,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
627,0
631,0
636,0
640,0
l
Reach
397,0
417,0
442,0
467,0
m
Standover height
722,0
732,0
744,0
793,0
x
Bottom bracket height
315,0
315,0
315,0
315,0
y
Front center
727,0
749,0
776,0
803,0
