Commençal META HT AM ORIGIN 2018

MTB Enduro
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,5 kg
Front travel
150mm

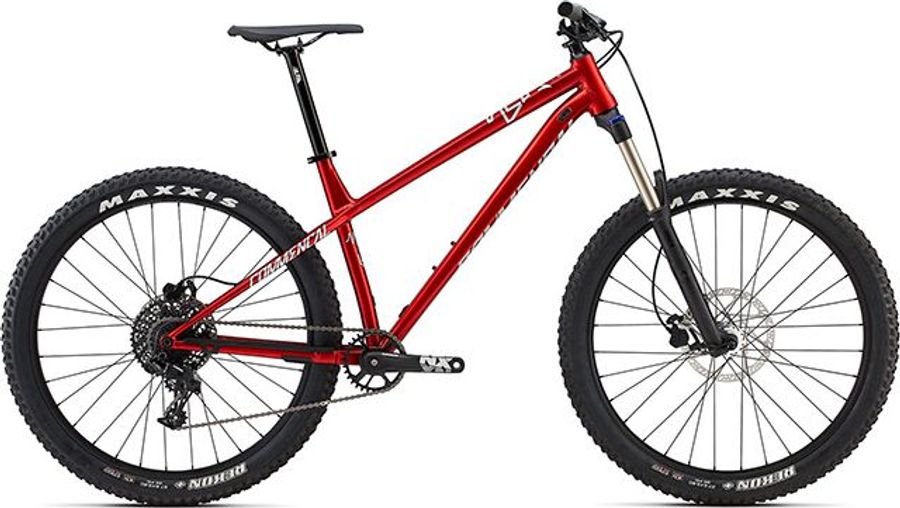

Commençal META HT AM ORIGIN 2018

About the Commençal META HT AM ORIGIN 2018

The Commençal META HT AM ORIGIN 2018 is a Hardtail Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain. Its features include hydraulic disc brakes e tubeless ready. The bike weighs approximately 13,5 kg.

Features

The Commençal META HT AM ORIGIN 2018 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
RIDE ALPHA, ergonomic grips, plastic one lock, super soft compound
Components
Steam
NEW RIDE ALPHA, aluminium 6061, 40 mm, 31.8 mm, 0° angle
Saddle
RIDE ALPHA 278 mm, CrMo rails
Headset
RIDE ALPHA ZS44 / ZS56
Seatpost
NEW RIDE ALPHA, 31.6 mm, no offset, 400 mm
Handlebar
RIDE ALPHA, Alloy 7075, double butted, 30 mm rise, 780 mm, 31.8 mm
Brake lever
Tektro HD-M285
Brakes
Tektro HD-M285
Drivetrain
Crankset
SRAM NX X-Sync steel, 32T, boost 170 mm on S/M, 175 mm on L/XL
Shifter
SRAM NX, 1 x 11 speed
Bottom bracket
SRAM Powerspline
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
2018 NEW META HT AM FRAME 650B, AL 6061 triple butted
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
WTB SCRAPER i35, 32 holes, tubeless ready, 35 mm inner width
Tires
MAXXIS REKON+ 27.5" x 2.8" EXO TR/EXO Maxx Terra front & MAXXIS REKON+ 27.5" x 2.8" EXO TR/EXO Maxx Terra rear
Spokes
32 count front and rear
Rear hub
FORMULA, 32 holes, sealed bearings
Front hub
FORMULA, 32 holes, sealed bearings

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
490,0
520,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
581,0
602,0
628,0
655,0
d
Head tube length
115,0
120,0
125,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
115,0
115,0
115,0
115,0
h
Wheelbase
1152,0
1174,0
1201,0
1228,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
630,0
634,0
639,0
643,0
l
Reach
400,0
420,0
445,0
470,0
m
Standover height
725,0
735,0
747,0
796,0
x
Bottom bracket height
315,0
315,0
315,0
315,0
y
Front center
727,0
749,0
776,0
803,0
