Commençal META HT AM ORIGIN 2019

MTB Enduro
Groupset
SRAM X5
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,5 kg
Front travel
150mm

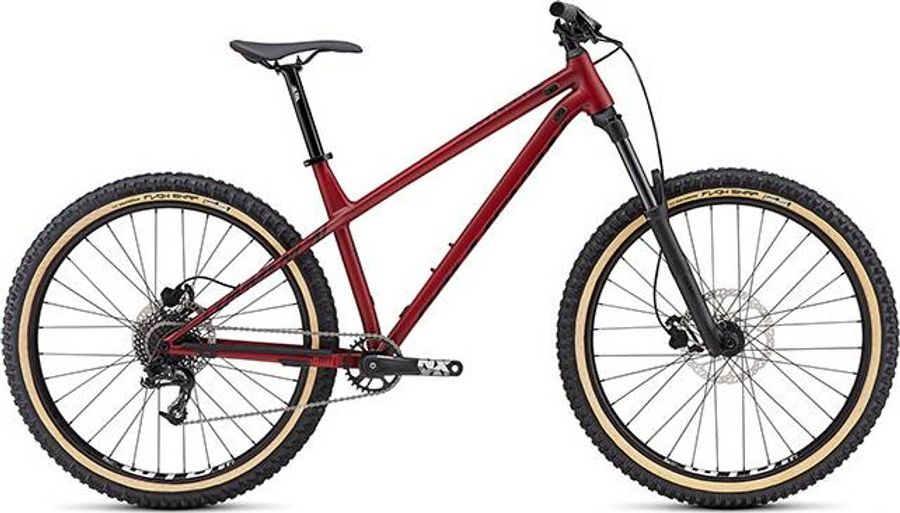

Commençal META HT AM ORIGIN 2019

About the Commençal META HT AM ORIGIN 2019

The Commençal META HT AM ORIGIN 2019 is a Hardtail Enduro Mountain Bike with a alloy frame. Equipped with a SRAM X5 drivetrain of 10 gears (1x10). Its features include internal routing, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 13,5 kg.

Features

The Commençal META HT AM ORIGIN 2019 has 3 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
RIDE ALPHA, Ergonomic grips, plastic one lock, super soft compound
Components
Steam
COMMENCAL, 40 mm, 31.8 mm, 0° angle
Saddle
RIDE ALPHA 278 mm, CrMo rails
Headset
ACROS Fiber ZS44/ZS56, sealed bearings
Seatpost
RIDE ALPHA, 31.6 mm, no offset, 400 mm
Handlebar
COMMENCAL, 760 mm, 31.8 mm, 25 mm rise
Brakes
Tektro HD-M275
Drivetrain
Chain
YABAN S10
Crankset
SRAM NX, 30T, 170 mm on S/M, 175 mm on L/XL
Shifter
SRAM X5, 1 x 10 sp
Bottom bracket
SRAM Power Spline
Rear derailleur
SRAM X5 Rear Derailleur 10s, 9/8/7s, 9s
Cable pull ratio
1:1, Exact actuation
Cage
Long, Medium
Cage material
Aluminum, Aluminum/Steel
Color
Black, Silver
Max tooth
34, 36
Model
RD-X5-A1
Name
X5 Rear Derailleur
Pulley bearings material
Standard, Steel
Speed
10s, 9/8/7s, 9s
Cassette
SRAM PG-1020 10s
Cog finish cassete
Black
Cog sizes
11-36t:11,13,15,17,19,22,25,28,32,36
Gearing
11-36t
Model
CS-PG-1020-A1
Name
PG-1020 Cassette
Speed
10s
Technology cassete
PG
Frameset
Frame
2019 META HT AM, internal cable routing, 27.5"
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
WTB ST i35, 32 holes, 35 mm inner width
Tires
VEETIRECO FLOW SNAPP, 27.5 x 2.6, skinwall, 72 TPI front and rear (No Tubeless Ready)
Rear hub
FORMULA, 32 holes, sealed bearings
Front hub
FORMULA, 32 holes, sealed bearings

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
490,0
520,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
581,0
602,0
628,0
655,0
d
Head tube length
115,0
120,0
125,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
115,0
115,0
115,0
115,0
h
Wheelbase
1152,0
1174,0
1201,0
1228,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
630,0
634,0
639,0
643,0
l
Reach
400,0
420,0
445,0
470,0
m
Standover height
725,0
735,0
747,0
796,0
x
Bottom bracket height
315,0
315,0
315,0
315,0
y
Front center
727,0
749,0
776,0
803,0
