Commençal META HT AM ORIGIN 2020

MTB Enduro
Groupset
SRAM X5
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,6 kg
Front travel
150mm

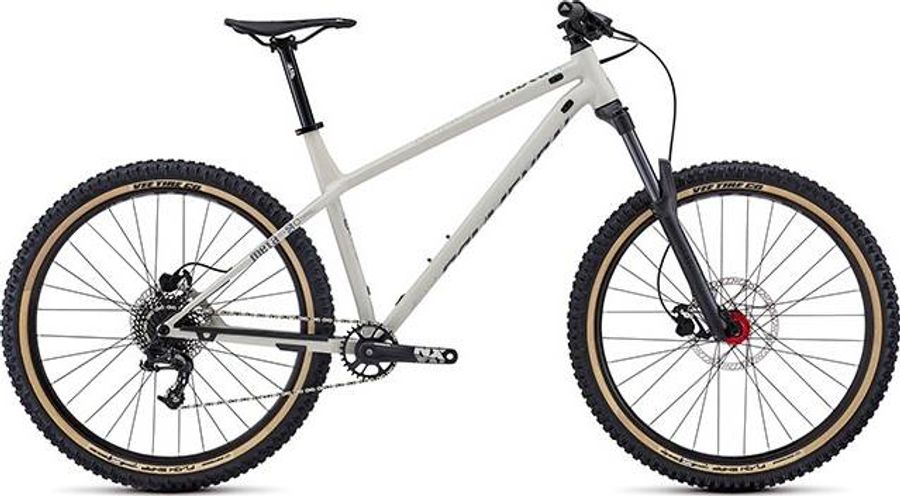

Commençal META HT AM ORIGIN 2020

About the Commençal META HT AM ORIGIN 2020

The Commençal META HT AM ORIGIN 2020 is a Hardtail Enduro Mountain Bike with a alloy frame. Equipped with a SRAM X5 drivetrain of 10 gears (1x10). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 13,6 kg.

Features

The Commençal META HT AM ORIGIN 2020 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
RIDE ALPHA, DH Grips, black, Ultra soft compound, single clamp
Components
Steam
RIDE ALPHA Freeride, 40 mm, 31,8 mm, 0° angle, 2014 alloy
Saddle
FABRIC Scoop Flat Sport, Steel rails
Headset
ACROS Fiber cups ZS44/ZS56, ZS44/ZS56, sealed bearings, IPS Technology
Seatpost
RIDE ALPHA, 31.6 mm, 400 mm, alloy 6061
Handlebar
RIDE ALPHA, 15 mm rise, 760 mm, 31,8 mm, 6061 alloy, double butted
Brakes
Tektro HD-M275
Drivetrain
Crankset
SRAM NX, 170 mm, 30t chainring, Power Spline, Boost
Shifter
SRAM X5, 10 sp
Bottom bracket
SRAM Power Spline, 118 mm
Chain
KMC X10
Rear derailleur
SRAM X5 Rear Derailleur 10s, 9/8/7s, 9s
Cable pull ratio
1:1, Exact actuation
Cage
Long, Medium
Cage material
Aluminum, Aluminum/Steel
Color
Black, Silver
Max tooth
34, 36
Model
RD-X5-A1
Name
X5 Rear Derailleur
Pulley bearings material
Standard, Steel
Speed
10s, 9/8/7s, 9s
Cassette
SRAM PG-1020 10s
Cog finish cassete
Black
Cog sizes
11-36t:11,13,15,17,19,22,25,28,32,36
Gearing
11-36t
Model
CS-PG-1020-A1
Name
PG-1020 Cassette
Speed
10s
Technology cassete
PG
Frameset
Frame
2020 META HT AM, Alloy 6061, triple butted tubes, T4, T6.
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
WTB ST i35, 32 holes, 35 mm inner width
Tires
VEE TIRE CO. FlowSnap 27.5 x 2.6 / VEE TIRE CO. FlowSnap 27.5 x 2.6, Tubeless ready, MPS Compound, skinwall / Tubeless ready, MPS Compound, skinwall
Rear hub
FORMULA, sealed bearing rear / loose ball front, 32 holes, 6 bolts, 15x110 mm front, 12x148 mm rear, standard freehub body, red anodised
Front hub
FORMULA, sealed bearing rear / loose ball front, 32 holes, 6 bolts, 15x110 mm front, 12x148 mm rear, standard freehub body, red anodised

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
490,0
520,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
581,0
602,0
628,0
655,0
d
Head tube length
115,0
120,0
125,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
115,0
115,0
115,0
115,0
h
Wheelbase
1156,0
1178,0
1205,0
1232,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
630,0
634,0
639,0
643,0
l
Reach
400,0
420,0
445,0
470,0
m
Standover height
725,0
735,0
747,0
796,0
x
Bottom bracket height
315,0
315,0
315,0
315,0
y
Front center
727,0
749,0
776,0
803,0
