BikeWise

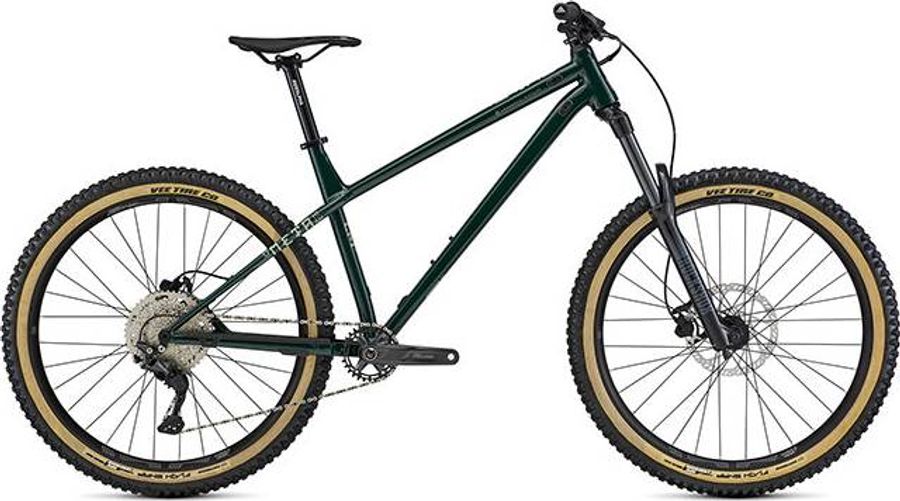

Commençal META HT AM ORIGIN 2021

MTB Enduro
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,2 kg
Front travel
160mm
Commençal META HT AM ORIGIN 2021

About the Commençal META HT AM ORIGIN 2021

The Commençal META HT AM ORIGIN 2021 is a Hardtail Enduro Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , hydraulic disc brakes, and tubeless ready. The bike weighs approximately 14,2 kg.

Features

The Commençal META HT AM ORIGIN 2021 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
RIDE ALPHA DH, Ultra-soft compound, single clamp, black
Components
Steam
RIDE ALPHA Freeride 40, 40 mm extension, 31,8 mm
Saddle
FABRIC Scoop Flat Sport, Steel rails
Headset
ACROS ZS44 / ZS56, Alloy cups, sealed bearings
Seatpost
RIDE ALPHA, 31,6 mm, 400 mm on S/M, 450 mm on L/X
Handlebar
RIDE ALPHA R27, 31,8 mm, 780 mm width, 27 mm rise, Alloy 6061
Brakes
Tektro HD-M275
Drivetrain
Crankset
SHIMANO Deore, 170 mm crank arms, Boost, Chainring: SHIMANO Deore, 30t
Shifter
SHIMANO Deore, 10 sp
Bottom bracket
SHIMANO Deore, BSA, threaded
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-M4100-10 HG
Combination names
11-42T
11-46T
Compatible chain
HG-X 10-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M4100-10
Steel gear finish
Plated
Steel gear pieces
10
Type
HG
Frameset
Frame
2021 Meta HT AM, Alloy 6061, triple butted tubes, T4, T6.
Front suspension
RockShox 35 Silver R Coil
Color
Diffusion Black, Gloss Black
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35S-R-A1
Name
35 Silver R
Spring
Coil
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
E13 LG1 EN Base, 27,5, 32h, 35 mm inner width
Tires
Rear: VEE TIRE CO. FlowSnapFront: VEE TIRE CO. FlowSnap, Rear: 27,5 x 2.6, MPC Compound, Synthesis, Tubeless Ready - Front: 27,5 x 2.6, MPC Compound, Synthesis, Tubeless Ready
Rear hub
Rear: FORMULA DC-348AFront: FORMULA DC-711, Rear: 32h, sealed bearings - Front: 32h, sealed bearings
Front hub
Rear: FORMULA DC-348AFront: FORMULA DC-711, Rear: 32h, sealed bearings - Front: 32h, sealed bearings

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
465,0
490,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
578,0
599,0
625,0
652,0
d
Head tube length
115,0
120,0
125,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
115,0
115,0
115,0
115,0
h
Wheelbase
1153,0
1175,0
1202,0
1229,0
i
Chainstay length
429,0
429,0
429,0
429,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
627,0
631,0
636,0
640,0
l
Reach
397,0
417,0
442,0
467,0
m
Standover height
722,0
732,0
744,0
793,0
x
Bottom bracket height
315,0
315,0
315,0
315,0
y
Front center
727,0
749,0
776,0
803,0
