Commençal META HT AM ORIGIN SRAM BRG 2021

MTB Enduro
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,2 kg
Front travel
160mm

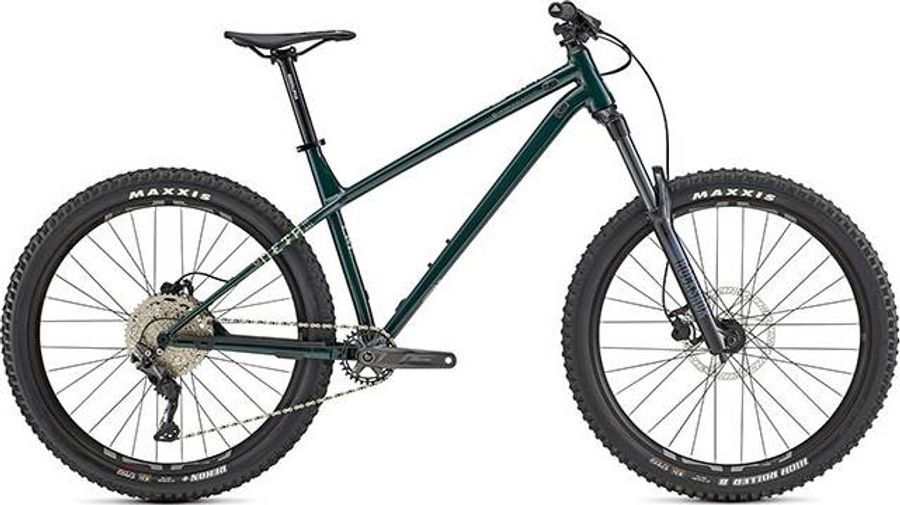

Commençal META HT AM ORIGIN SRAM BRG 2021

About the Commençal META HT AM ORIGIN SRAM BRG 2021

The Commençal META HT AM ORIGIN SRAM BRG 2021 is a Hardtail Enduro Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , hydraulic disc brakes, and tubeless ready. The bike weighs approximately 14,2 kg.

Features

The Commençal META HT AM ORIGIN SRAM BRG 2021 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
RIDE ALPHA DH, Ultra-soft compound, single clamp, black
Components
Steam
RIDE ALPHA Freeride 40, 40 mm extension, 31,8 mm
Saddle
FIZIK Terra Alpaca X5, Wingflex rails
Headset
ACROS ZS44 / ZS56, Alloy cups, sealed bearings
Seatpost
RIDE ALPHA, 31,6 mm, 400 mm on S/M, 450 mm on L/X
Handlebar
RIDE ALPHA R27, 31,8 mm, 780 mm width, 27 mm rise, Alloy 6061
Brakes
Tektro HD-M275
Drivetrain
Crankset
SRAM SX Eagle, 170 mm, Chainring: SRAM SX Eagle, 32t
Shifter
SRAM SX Eagle, 12 sp
Bottom bracket
SRAM SX Eagle, BSA, threaded
Cassette
SRAM SX Eagle
Chain
SRAM SX Eagle
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
2021 Meta HT AM, Alloy 6061, triple butted tubes, T4, T6.
Front suspension
RockShox 35 Silver R Coil
Color
Diffusion Black, Gloss Black
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35S-R-A1
Name
35 Silver R
Spring
Coil
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
E13 LG1 EN Base, 27,5, 32h, 35 mm inner width
Tires
Rear: VEE TIRE CO. FlowSnap Front: VEE TIRE CO. FlowSnap, Rear: 27,5 x 2.6, MPC Compound, Synthesis, Tubeless Ready - Front: 27,5 x 2.6, MPC Compound, Synthesis, Tubeless Ready
Rear hub
Rear: FORMULA DC-348A Front: FORMULA DC-711, Rear: 32h, sealed bearings - Front: 32h, sealed bearings
Front hub
Rear: FORMULA DC-348A Front: FORMULA DC-711, Rear: 32h, sealed bearings - Front: 32h, sealed bearings

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
465,0
490,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
578,0
599,0
625,0
652,0
d
Head tube length
115,0
120,0
125,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
115,0
115,0
115,0
115,0
h
Wheelbase
1153,0
1175,0
1202,0
1229,0
i
Chainstay length
429,0
429,0
429,0
429,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
627,0
631,0
636,0
640,0
l
Reach
397,0
417,0
442,0
467,0
m
Standover height
722,0
732,0
744,0
793,0
x
Bottom bracket height
315,0
315,0
315,0
315,0
y
Front center
727,0
749,0
776,0
803,0
