Commençal META HT AM RACE 2022

MTB Enduro
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,2 kg
Front travel
150mm

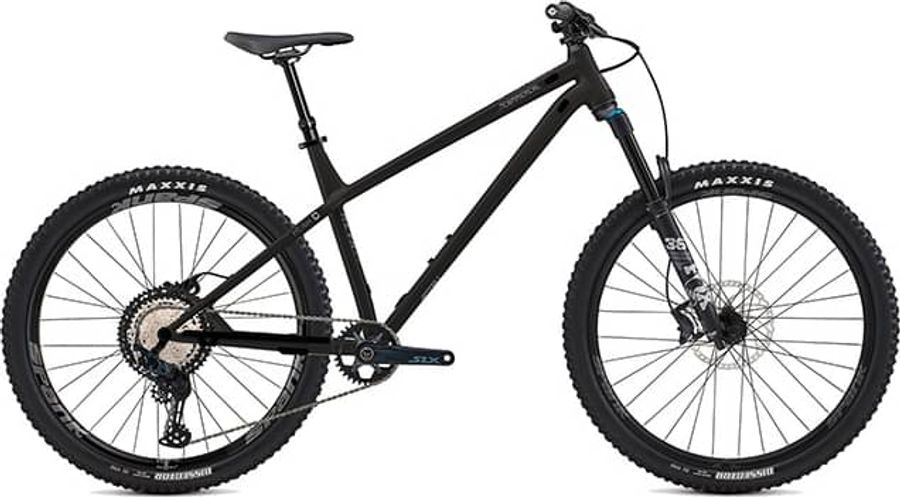

Commençal META HT AM RACE 2022

About the Commençal META HT AM RACE 2022

The Commençal META HT AM RACE 2022 is a Hardtail Enduro Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,2 kg.

Features

The Commençal META HT AM RACE 2022 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ODI Elite Motion, Soft pro compound, single clamp, black
Components
Steam
RIDE ALPHA Freeride 40, 40 mm extension, 31,8 mm
Saddle
FIZIK Terra Alpaca X5, 145 mm width, S-alloy rails
Headset
ACROS ZS44 / ZS56, Alloy cups, sealed bearings
Seatpost
KS Rage-I, 31.6 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remote
Handlebar
RIDE ALPHA R20 on S - RIDE ALPHA R27 on M / L / XL, 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Brakes
Shimano SLX BR-M7000
Drivetrain
Crankset
SHIMANO SLX, 170 mm crank arms, Boost, Chainring: SHIMANO SLX, 32t
Shifter
SHIMANO SLX, 12s, RapidFire Plus
Bottom bracket
SHIMANO SLX, BSA, threaded
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Chain
KMC X12
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
2022 Meta HT AM - 29''/27'' on S / M & 29''/29'' on L / XL, Alloy 6061, triple butted tubes, T4, T6.
Front suspension
Fox 36 Performance
Wheels
Rims
SPANK Spike Race 33, REAR: 27.5'', 32h, 30 mm inner width on S / M - 29'', 32h, 30 mm inner width rear on L / XL - FRONT: 29'', 32h, 30 mm inner width on S / M / L / XL
Tires
Rear: MAXXIS Dissector - Front: MAXXIS Dissector, REAR: 27.5'' x 2.6'', 3C MaxxTerra, New EXO+, Tubeless Ready on S / M - 29'' x 2.6'', 3C MaxxTerra, New EXO+, Tubeless Ready on L / XL - FRONT: 29" x 2.6", 3C MaxxTerra, New EXO+, Tubeless Ready on S / M / L / XL
Rear hub
Rear: FORMULA MSL-148A Front: FORMULA DC-711, Rear: 32h, sealed bearings - Front: 32h, sealed bearings
Front hub
Rear: FORMULA MSL-148A Front: FORMULA DC-711, Rear: 32h, sealed bearings - Front: 32h, sealed bearings

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
465,0
490,0
b
Seat tube angle
74,0º
74,5º
74,5º
74,5º
c
Top tube length
579,0
601,0
627,0
652,0
d
Head tube length
115,0
120,0
125,0
130,0
e
Head tube angle
64,0º
64,0º
64,5º
64,5º
f
Rake
43,0
42,0
54,0
35,0
g
Trail
126,0
127,0
110,0
131,0
h
Wheelbase
1177,0
1199,0
1226,0
1229,0
i
Chainstay length
429,0
429,0
429,0
429,0
j
Bottom bracket drop
30,0
30,0
40,0
40,0
k
Stack height
635,0
640,0
644,0
640,0
l
Reach
402,0
422,0
447,0
472,0
m
Standover height
727,0
737,0
749,0
793,0
x
Bottom bracket height
325,0
325,0
315,0
315,0
y
Front center
750,0
772,0
800,0
803,0
