Commençal META HT AM RACE 29 2020

MTB Enduro
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
13,6 kg
Front travel
150mm
Commençal META HT AM RACE 29 2020

About the Commençal META HT AM RACE 29 2020

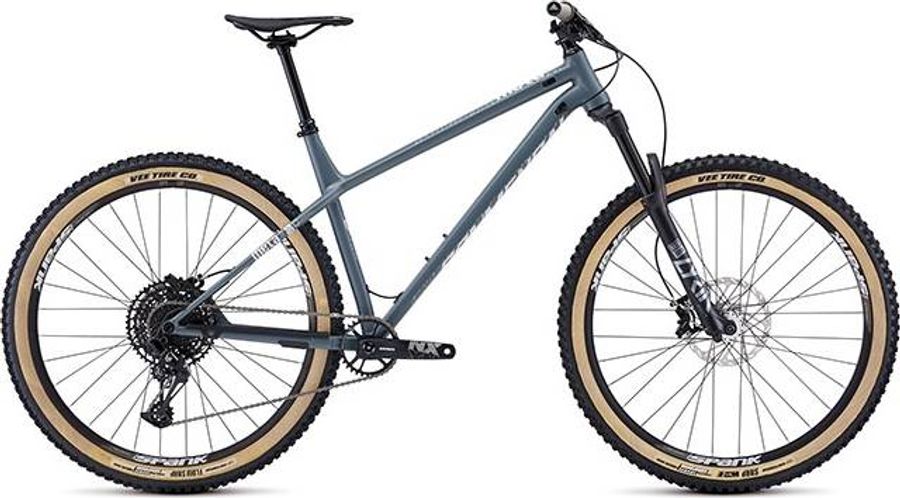

The Commençal META HT AM RACE 29 2020 is a Hardtail Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,6 kg.

Features

The Commençal META HT AM RACE 29 2020 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
RIDE ALPHA, DH Grips, grey, Ultra soft compound, single clamp
Components
Steam
RIDE ALPHA Freeride, 40 mm, 31,8 mm, 0° angle, 2014 alloy
Saddle
FABRIC Scoop Flat Elite, Crmo rails
Headset
ACROS Alloy cups ZS44/ZS56, ZS44/ZS56, sealed bearings, IPS Technonolgy
Seatpost
KINDSHOCK RAGE-I, 31.6 mm, 125 mm on S, 150 mm on M, L and XL
Handlebar
RIDE ALPHA, 27 mm rise, 780 mm, 31,8 mm, 7050 alloy, double butted
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
SRAM NX Eagle, 170 mm, 32t chainring, Boost, DUB
Shifter
SRAM NX Eagle, 12 sp
Bottom bracket
SRAM DUB BSA
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM NX Eagle
Frameset
Frame
2020 META HT AM, Alloy 6061, triple butted tubes, T4, T6.
Front suspension
RockShox Lyrik Select+ DebonAir 2003 g
Color
Diffusion Black, Gloss Black
Damper type
Charger 2.1 RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-SELP-C2
Name
Lyrik Select+
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, Maxle Stealth
Weight
2003
Wheel size
27.5", 29"
Wheels
Rims
SPANK Oozy 359, 32 holes, 30.5 mm inner width, tubeless ready
Tires
VEE TIRE CO. Snap WCE 29 x 2.35 / VEE TIRE CO. FlowSnap 29 x 2.35, Tubeless ready, Tackee Compound, skinwall / Tubeless ready, Tackee Compound, skinwall
Rear hub
FORMULA, sealed bearings, 32 holes, 6 bolts, 15x110 mm front, 12x148 mm rear, standard freehub body, silver anodised
Front hub
FORMULA, sealed bearings, 32 holes, 6 bolts, 15x110 mm front, 12x148 mm rear, standard freehub body, silver anodised

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
490,0
520,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
581,0
602,0
628,0
655,0
d
Head tube length
115,0
120,0
125,0
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
124,0
124,0
124,0
124,0
h
Wheelbase
1152,0
1174,0
1201,0
1228,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
630,0
634,0
639,0
643,0
l
Reach
400,0
420,0
445,0
470,0
m
Standover height
725,0
735,0
747,0
796,0
x
Bottom bracket height
334,0
334,0
334,0
334,0
y
Front center
727,0
749,0
776,0
803,0
