Commençal META POWER SX AXS ALC 2020

E-Bike
MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
23,9 kg
Front travel
180mm
Rear travel
170mm

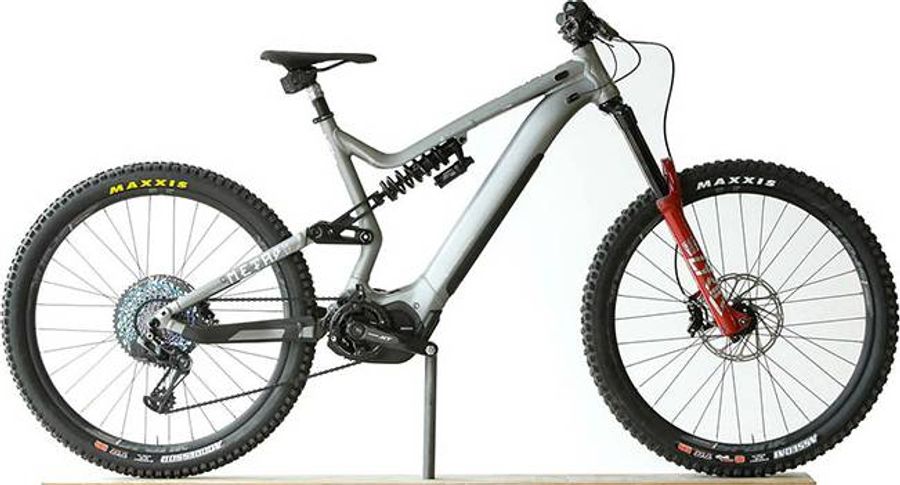

Commençal META POWER SX AXS ALC 2020

About the Commençal META POWER SX AXS ALC 2020

The Commençal META POWER SX AXS ALC 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM X01 Eagle drivetrain. Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 23,9 kg.

Features

The Commençal META POWER SX AXS ALC 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
RIDE ALPHA, DH Grips, black, Ultra soft compound, single clamp
Remote
SHIMANO E8000
Components
Steam
RIDE ALPHA Freeride, 40 mm, 31,8 mm, 0° angle, 2014 alloy
Saddle
RIDE ALPHA SADDLE CRMO, 278 rails
Battery
SHIMANO E8035, 504 Wh
Headset
ACROS Alloy cups ZS44/ZS56, ZS44/ZS56, sealed bearings
Seatpost
ROCKSHOX REVERB AXS SEATPOST 170MM, 31.6 mm
Handlebar
RIDE ALPHA, 20 mm rise, 780 mm, 31,8 mm, 7050 alloy, double butted
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SHIMANO XT E8050, 165 mm, Hollowtech
Motor
SHIMANO E8000, 250 W, 70 Nm
Shifter
SRAM AXS EAGLE, 12 sp
Chain guide
RIDE ALPHA 34t, Shimano Steps specific
Bottom bracket
SHIMANO
Rear derailleur
SRAM X01 Eagle AXS 12s
Cage material
Aluminum
Color
Black, Grey, Lunar, Red
Max tooth
52
Model
RD-X0-1E-A1
Name
X01 Eagle AXS Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
2020 META Power SX (integrated battery), 170 mm travel, 27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Rear suspension
RockShox Super Deluxe Coil Ultimate 406 g
Body eyelet
Bearing, No Bushing, Standard, Trunnion
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55, 185x55(TR), 205x57.5, 205x57.5(TR), 205x60, 205x60(TR), 205x62.5(TR), 205x65, 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLC-ULT-A2
Name
Super Deluxe Coil Ultimate
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard
Weight based on
W/O coil spring, 210x50, MM tune, standard/standard
Weight
406
Front suspension
RockShox Lyrik Ultimate RC2
Wheels
Rims
SPANK OOZY 359 27.5
Tires
MAXXIS Assegai front / MAXXIS Aggressor rear

Geometry

Size SM MD LG XL
a
Seat tube length
415,0
440,0
465,0
495,0
b
Seat tube angle
77,0º
77,0º
77,0º
77,0º
c
Top tube length
579,0
602,0
628,0
655,0
d
Head tube length
120,0
125,0
130,0
135,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
127,0
127,0
127,0
127,0
h
Wheelbase
1227,0
1249,0
1276,0
1303,0
i
Chainstay length
443,0
443,0
443,0
443,0
j
Bottom bracket drop
9,0
9,0
9,0
9,0
k
Stack height
616,0
620,0
625,0
629,0
l
Reach
438,0
458,0
483,0
508,0
m
Standover height
745,0
758,0
765,0
769,5
x
Bottom bracket height
346,0
346,0
346,0
346,0
y
Front center
784,0
806,0
833,0
860,0
