Commençal META SX TEAM 2022

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,1 kg
Front travel
170mm
Rear travel
160mm

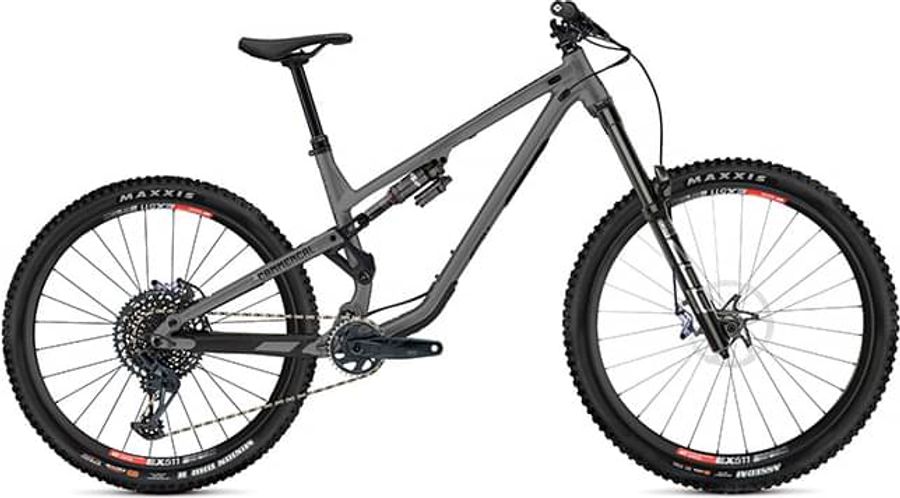

Commençal META SX TEAM 2022

About the Commençal META SX TEAM 2022

The Commençal META SX TEAM 2022 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 15,1 kg.

Features

The Commençal META SX TEAM 2022 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ODI Elite Motion, Soft pro compound, single clamp, black
Components
Steam
RIDE ALPHA Freeride 40, 40 mm extension, 31,8 mm
Saddle
SDG Bel Air V3 Atmos, Lux-Alloy Rails
Headset
ACROS ZS44/ZS56, Alloy cups, sealed bearings
Seatpost
KS Lev Integra, 34.9 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L, 200 mm on XL, SouthPaw alloy remote
Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL, 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Brakes
TRP DH-R Evo
Drivetrain
Crankset
SRAM GX Eagle, 170 mm crank arms, DUB, Boost, Chainring: SRAM GX Eagle, 32t, Narrow-Wide
Shifter
SRAM GX Eagle, 12s
Bottom bracket
SRAM DUB, Pressfit
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM GX Eagle
Frameset
Frame
2022 Meta SX, 160 mm travel, 29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Front suspension
RockShox ZEB Ultimate DebonAir, Dual Position Air 2265 g
Color
Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Grey
Damper type
Charger 2.1 RC2
fork offset
38mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
200mm
Model
FS-ZEB-ULT-A1
Name
ZEB Ultimate
Spring
DebonAir, Dual Position Air
Travel (mm)
150mm, 160mm, 170mm, 180mm, 190mm
Upper tube type
38mm aluminum
Weight based on
29" Maxle Stealth 190mm Travel 1.5" Taper Steerer
Weight
2265
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe Ultimate 453 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55, 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5, 205x57.5(TR), 205x60, 205x60(TR), 205x62.5(TR), 205x65, 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
268, 320, 380
Model
RS-SDLX-ULT-B2
Name
Super Deluxe Ultimate
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
453
Wheels
Rims
Rear: DT SWISS EX511 27.5'' - Front: DT SWISS EX511 29'', Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width
Tires
Rear: MAXXIS DHR II - Front: MAXXIS Assegai, Rear: 27.5" x 2.4", WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29" x 2.5", WT, 3C MaxxTerra, EXO, Tubeless Ready
Rear hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 28h, sealed bearings, 12 x 148 mm, XD driver, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black
Front hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 28h, sealed bearings, 12 x 148 mm, XD driver, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
380,0
380,0
420,0
420,0
440,0
440,0
460,0
460,0
b
Seat tube angle
78,5º
78,1º
78,5º
78,1º
78,5º
78,1º
78,5º
78,1º
c
Top tube length
566,0
567,0
587,0
588,0
613,0
614,0
640,0
641,0
d
Head tube length
115,0
115,0
120,0
120,0
125,0
125,0
130,0
130,0
e
Head tube angle
64,0º
63,6º
64,0º
63,6º
64,0º
63,6º
64,0º
63,6º
f
Rake
39,0
35,0
39,0
35,0
39,0
35,0
39,0
35,0
g
Trail
130,0
137,0
130,0
137,0
130,0
137,0
130,0
137,0
h
Wheelbase
1228,0
1229,0
1250,0
1251,0
1282,0
1283,0
1309,0
1310,0
i
Chainstay length
439,0
440,0
439,0
440,0
444,0
445,0
444,0
445,0
j
Bottom bracket drop
4,0
1,5
4,0
1,5
4,0
1,5
4,0
1,5
k
Stack height
627,0
630,0
631,0
634,0
636,0
639,0
640,0
644,0
l
Reach
437,0
433,0
457,0
453,0
482,0
478,0
507,0
503,0
m
Standover height
-
-
-
-
-
-
-
-
x
Bottom bracket height
351,0
354,0
351,0
354,0
351,0
354,0
351,0
354,0
y
Front center
789,0
789,0
811,0
811,0
838,0
838,0
865,0
865,0
