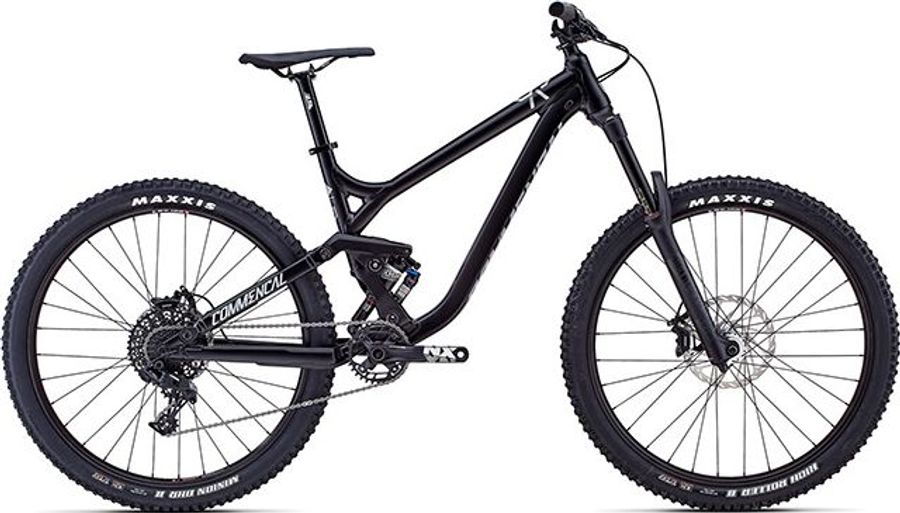

Commençal META SX V3 2018

MTB Enduro
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,4 kg
Front travel
170mm
Rear travel
160mm
Commençal META SX V3 2018

About the Commençal META SX V3 2018

The Commençal META SX V3 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain. Its features include hydraulic disc brakes e tubeless ready. The bike weighs approximately 14,4 kg.

Features

The Commençal META SX V3 2018 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
RIDE ALPHA, ergonomic grips, plastic one lock, super soft compound
Components
Steam
NEW RIDE ALPHA, aluminium 6061, 40 mm, 31.8 mm, 0° angle
Saddle
RIDE ALPHA 278 mm, CrMo rails
Headset
RIDE ALPHA ZS44 / ZS56
Seatpost
NEW RIDE ALPHA, 31.6 mm, no offset, 350 mm
Handlebar
RIDE ALPHA, Alloy 7075, double butted, 30 mm rise, 780 mm, 31.8 mm
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Crankset
SRAM NX X-Sync, 32T, 170 mm on S/M, 175 mm on L/XL
Shifter
SRAM NX 1 x 11 speed
Bottom bracket
SRAM GXP Press Fit BB92
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
2018 META SX V3 650B travel 160 mm
Rear suspension
RockShox Monarch Plus RC3
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, L3, M
Eye to eye stroke
190x51, 200x51, 200x57, 216x63
Model
RS-MNRP-RC3-B4
Name
Monarch Plus RC3
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Front suspension
RockShox Lyrik RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Charger 2
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-RC-C2
Name
Lyrik RC
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
WTB STP i25, 32 holes, double wall, tubeless ready, 25 mm inner
Tires
MAXXIS HRII 27.5" x 2.4" EXO/TR/2C front and MAXXIS DHRII 27.5" x 2.3" EXO/TR/2C rear
Rear hub
FORMULA, 32 holes, Sealed bearings
Front hub
FORMULA, 32 holes, Sealed bearings

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
490,0
520,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
560,0
580,0
605,0
630,0
d
Head tube length
105,0
110,0
120,0
130,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
f
Rake
56,0
53,0
53,0
53,0
g
Trail
100,0
104,0
104,0
104,0
h
Wheelbase
1141,0
1162,0
1188,0
1215,0
i
Chainstay length
439,0
439,0
439,0
439,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
k
Stack height
567,0
577,0
587,0
597,0
l
Reach
388,0
407,0
429,0
451,0
m
Standover height
710,0
720,0
743,0
750,0
x
Bottom bracket height
343,0
343,0
343,0
343,0
y
Front center
702,0
723,0
749,0
776,0
