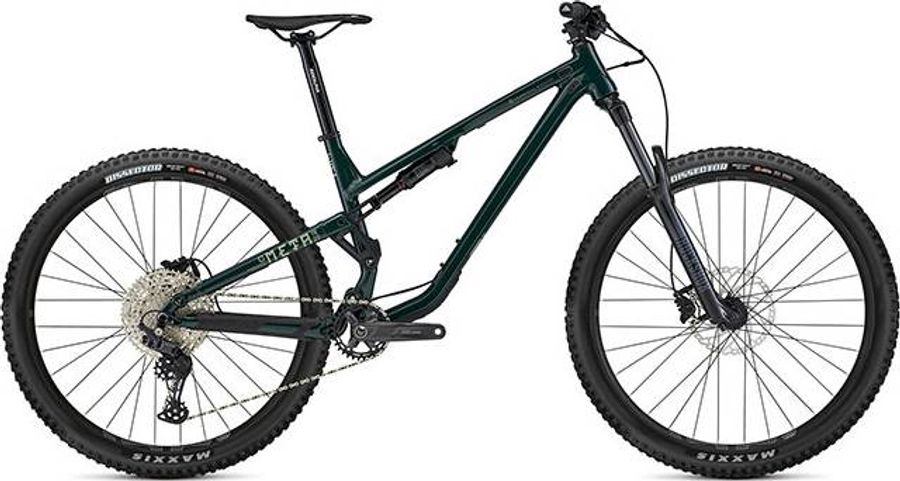

Commençal META TR 29 ORIGIN BRG 2021

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
15,8 kg
Front travel
150mm
Rear travel
140mm
Commençal META TR 29 ORIGIN BRG 2021

About the Commençal META TR 29 ORIGIN BRG 2021

The Commençal META TR 29 ORIGIN BRG 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 11 gears (1x11). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 15,8 kg.

Features

The Commençal META TR 29 ORIGIN BRG 2021 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
RIDE ALPHA DH, Ultra-soft compound, single clamp, black
Components
Steam
RIDE ALPHA Freeride 50, 50 mm extension, 31,8 mm
Saddle
FABRIC Scoop Flat Sport, Steel rails
Headset
ACROS ZS44 / ZS56, Alloy cups, sealed bearings
Seatpost
RIDE ALPHA, 34,9 mm, 400 mm on S/M, 450 mm on L/X
Handlebar
RIDE ALPHA R27, 31,8 mm, 780 mm width, 27 mm rise, Alloy 6061
Brakes
Shimano Deore BR-MT501
Drivetrain
Crankset
SHIMANO Deore, 170 mm crank arms, Boost, Chainring: SHIMANO Deore, 32t
Shifter
SHIMANO Deore, 11s, RapidFire Plus
Bottom bracket
SHIMANO MT500, Pressfit
Rear derailleur
Shimano Deore RD-M5120 SGS 11/10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Lower pulley max
46T (1x11/1x10-speed)
42T (2x11/2x10-speed)
Lower pulley min
42T
Model
RD-M5120-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
11/10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Cassette
Shimano Deore CS-M5100-11 HG
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
11-42T
11-51T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M5100-11
Steel gear finish
Plated
Steel gear pieces
11
Type
HG
Chain
KMC X11
Frameset
Frame
2021 Meta TR 29, 140 mm travel, 29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Front suspension
RockShox 35 Silver R Coil
Color
Diffusion Black, Gloss Black
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35S-R-A1
Name
35 Silver R
Spring
Coil
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select 313 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-SEL-B2
Name
Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
313
Wheels
Rims
E13 LG1 EN Base, 29'', 32h, 30 mm inner width
Tires
Rear: MAXXIS DISSECTOR 29 EXO - Front: MAXXIS DISSECTOR 29 EXO, Rear: 29 x 2.40 WT 120TPI. Foldable. 3C Maxx Terra /EXO+ / TR - Front: 29 x 2.50 WT 60TPI. Foldable. 3C Maxx Terra / EXO / TR
Rear hub
Rear: FORMULA DCL-348A - Front: FORMULA DC-711, Rear: 32h, sealed bearings - Front: 32h, sealed bearings
Front hub
Rear: FORMULA DCL-348A - Front: FORMULA DC-711, Rear: 32h, sealed bearings - Front: 32h, sealed bearings

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
440,0
460,0
b
Seat tube angle
78,6º
78,6º
78,6º
78,6º
c
Top tube length
563,0
589,0
615,0
641,0
d
Head tube length
110,0
115,0
120,0
125,0
e
Head tube angle
64,5º
64,5º
64,5º
64,5º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
132,0
132,0
132,0
132,0
h
Wheelbase
1,2e3
1227,0
1254,0
1281,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
33,0
33,0
33,0
33,0
k
Stack height
623,0
627,0
631,0
635,0
l
Reach
437,0
462,0
487,0
512,0
m
Standover height
-
-
-
-
x
Bottom bracket height
341,0
341,0
341,0
341,0
y
Front center
770,0
797,0
824,0
851,0
