Commençal META TR RACE 2022

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
15,8 kg
Front travel
160mm
Rear travel
140mm

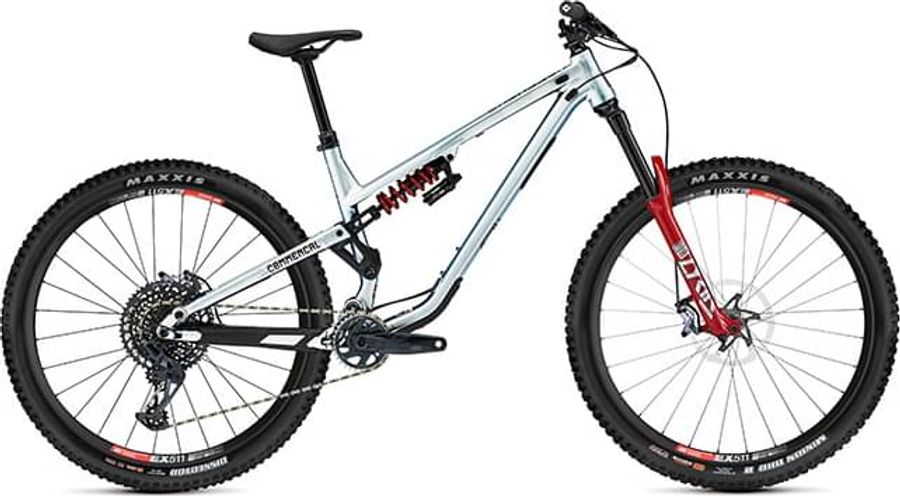

Commençal META TR RACE 2022

About the Commençal META TR RACE 2022

The Commençal META TR RACE 2022 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 15,8 kg.

Features

The Commençal META TR RACE 2022 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ODI Elite Motion, Soft pro compound, single clamp, black
Components
Steam
RIDE ALPHA Freeride 40, 40 mm extension, 31,8 mm
Saddle
SDG Bel Air V3 Atmos, Lux-Alloy Rails
Headset
ACROS ZS44 / ZS56, Alloy cups, sealed bearings
Seatpost
KS Lev Integra, 34.9 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L, 200 mm on XL, SouthPaw alloy remote
Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL, 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Brakes
TRP DH-R Evo
Drivetrain
Crankset
SRAM GX Eagle, 170 mm crank arms, DUB, Boost, Chainring: SRAM GX Eagle, 32t, Narrow-Wide
Shifter
SRAM GX Eagle, 12s
Bottom bracket
SRAM DUB, Pressfit
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM GX Eagle
Frameset
Frame
2022 Meta TR, 140 mm travel, 29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Rear suspension
RockShox Super Deluxe Coil Ultimate 406 g
Body eyelet
Bearing, No Bushing, Standard, Trunnion
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55, 185x55(TR), 205x57.5, 205x57.5(TR), 205x60, 205x60(TR), 205x62.5(TR), 205x65, 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLC-ULT-A2
Name
Super Deluxe Coil Ultimate
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard
Weight based on
W/O coil spring, 210x50, MM tune, standard/standard
Weight
406
Front suspension
RockShox Lyrik Ultimate DebonAir 2003 g
Color
BoXXer Red, Gloss Black
Damper type
Charger 2.1 RC2, Charger 2.1 RCT3
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-ULT-C2
Name
Lyrik Ultimate
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, RC2 damper, Maxle Stealth
Weight
2003
Wheel size
27.5", 29"
Wheels
Rims
DT SWISS EX511 29'', 29'', 28h, 30 mm inner width
Tires
Rear: MAXXIS Dissector - Front: MAXXIS DHR II, Rear: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready - Front: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready
Rear hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 28h, sealed bearings, 12 x 148 mm, XD driver, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black
Front hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 28h, sealed bearings, 12 x 148 mm, XD driver, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
380,0
380,0
420,0
420,0
440,0
440,0
460,0
460,0
b
Seat tube angle
79,0º
78,6º
79,0º
78,6º
79,0º
78,6º
79,0º
78,6º
c
Top tube length
562,0
563,0
588,0
589,0
614,0
615,0
640,0
641,0
d
Head tube length
110,0
110,0
115,0
115,0
120,0
120,0
125,0
125,0
e
Head tube angle
65,0º
64,5º
64,5º
64,5º
64,5º
64,5º
64,5º
64,5º
f
Rake
43,0
42,0
38,0
42,0
38,0
42,0
38,0
42,0
g
Trail
127,0
132,0
137,0
132,0
137,0
132,0
137,0
132,0
h
Wheelbase
1199,0
1,2e3
1226,0
1227,0
1253,0
1254,0
1280,0
1281,0
i
Chainstay length
431,0
432,0
431,0
432,0
431,0
432,0
431,0
432,0
j
Bottom bracket drop
29,0
33,0
29,0
33,0
29,0
33,0
29,0
33,0
k
Stack height
620,0
623,0
624,0
627,0
628,0
631,0
632,0
635,0
l
Reach
441,0
437,0
466,0
462,0
491,0
487,0
516,0
512,0
m
Standover height
-
-
-
-
-
-
-
-
x
Bottom bracket height
345,0
341,0
345,0
341,0
345,0
341,0
345,0
341,0
y
Front center
770,0
770,0
796,0
797,0
823,0
824,0
850,0
851,0
