Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
14,5 kg
Front travel
150mm
Rear travel
130mm

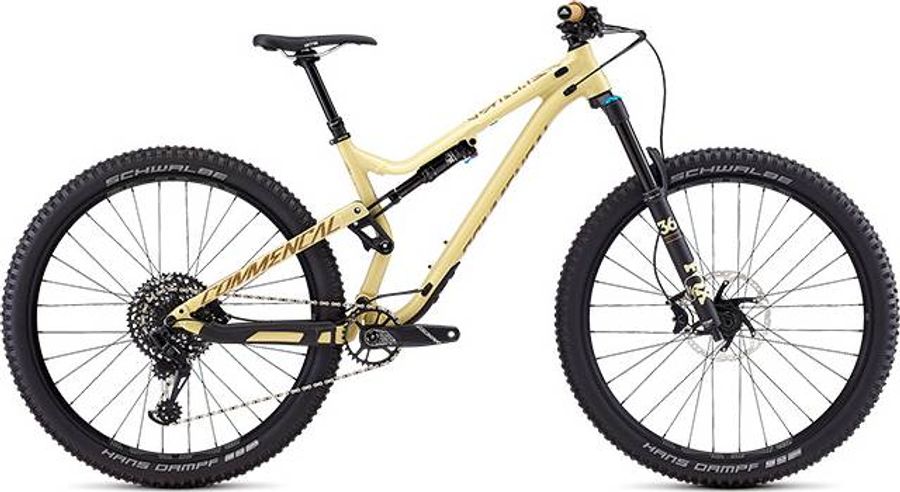

About the Commençal META TRAIL 29 ESSENTIAL FOX 2019
The Commençal META TRAIL 29 ESSENTIAL FOX 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 14,5 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
RIDE ALPHA, DH Grips, ultra soft compound, single clamp
|
|---|
|
Steam
|
RIDE ALPHA FREERIDE, 50 mm, 31,8 mm, 0° angle
|
|---|---|
|
Saddle
|
WTB SL8 RACE, 142 mm width, cromo rails
|
|
Headset
|
ACROS Fiber ZS44/ZS56, sealed bearings
|
|
Seatpost
|
KINDSHOCK LEV SI, 31.6 mm, Southpaw alloy lever, Travel: 100 mm on S, 125 mm on M, 150 mm on L and XL
|
|
Handlebar
|
RIDE ALPHA, Alloy 7075, 780 mm, 31,8 mm, 20 mm rise
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Crankset
|
SSRAM GX EAGLE 6K, 32t, 170 mm on S/M/L/XL
|
|---|---|
|
Shifter
|
SRAM GX EAGLE, 1 x 12 speed
|
|
Bottom bracket
|
SRAM DUB, Press Fit BB92
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
2019 META Trail 29 130 mm travel
|
|---|---|
|
Rear suspension
|
Fox Float DPS Performance
|
|
Front suspension
|
Fox 36 Float Performance
|
|
Rims
|
E13 TRS, 32 holes, 30 mm inner width, tubeless ready
|
|---|---|
|
Tires
|
SCHWALBE NEW HANS DAMPF, 29x2.35, TLE Addix Compound, front, SCHWALBE NEW HANS DAMPF, 29x2.35, TLE Addix Compound, rear
|
|
Spokes
|
SAPIM RACE spokes, stainless steel, 2.0 mm / 1.8 mm / 2.0 mm
|
|
Rear hub
|
FORMULA, high engagement, 32 holes, sealed bearings
|
|
Front hub
|
FORMULA, high engagement, 32 holes, sealed bearings
|
Geometry
| Size | MD | LG | XL | SM |
|---|---|---|---|---|
|
a
Seat tube length
|
440,0
|
465,0
|
495,0
|
400,0
|
|
b
Seat tube angle
|
76,5º
|
76,5º
|
76,5º
|
76,5º
|
|
c
Top tube length
|
604,0
|
625,0
|
651,0
|
582,0
|
|
d
Head tube length
|
110,0
|
115,0
|
120,0
|
105,0
|
|
e
Head tube angle
|
66,5º
|
66,5º
|
66,5º
|
66,5º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1196,0
|
1218,0
|
1245,0
|
1174,0
|
|
i
Chainstay length
|
434,0
|
434,0
|
434,0
|
434,0
|
|
j
Bottom bracket drop
|
38,0
|
38,0
|
38,0
|
38,0
|
|
k
Stack height
|
-
|
-
|
-
|
-
|
|
l
Reach
|
455,0
|
475,0
|
500,0
|
435,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
336,0
|
336,0
|
336,0
|
336,0
|
|
y
Front center
|
765,0
|
787,0
|
814,0
|
743,0
|
