Commençal META TRAIL V4.2 ORIGIN 2019

MTB Trail
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,5 kg
Front travel
140mm
Rear travel
130mm

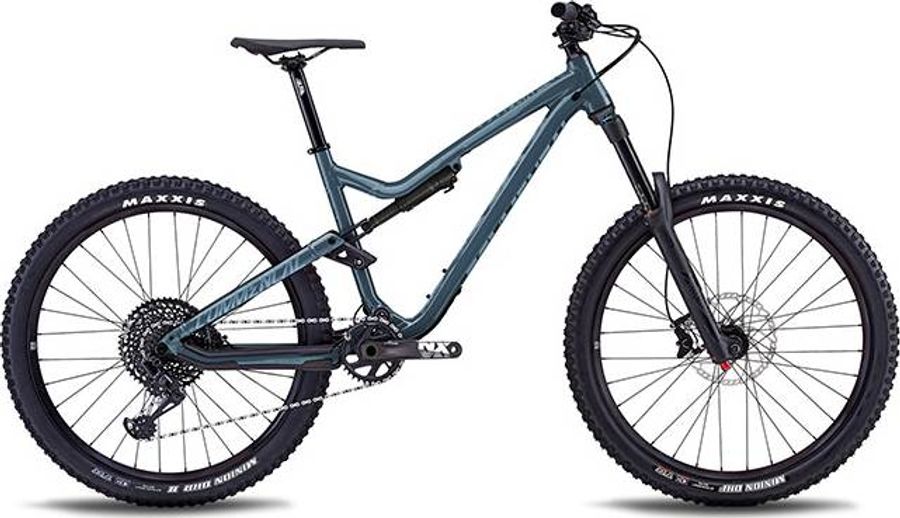

Commençal META TRAIL V4.2 ORIGIN 2019

About the Commençal META TRAIL V4.2 ORIGIN 2019

The Commençal META TRAIL V4.2 ORIGIN 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes e tubeless ready. The bike weighs approximately 14,5 kg.

Features

The Commençal META TRAIL V4.2 ORIGIN 2019 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
RIDE ALPHA, DH Grips, ultra soft compound, single clamp
Components
Steam
RIDE ALPHA, Aluminium 2014, 50 mm, 31.8 mm, 0° Angle
Saddle
RIDE ALPHA SuperLight foam, CrMo rails
Headset
ACROS Fiber ZS44/ZS56, sealed bearings
Seatpost
RIDE ALPHA, 31.6 mm, no offset, 350 mm
Handlebar
RIDE ALPHA, Alloy 7075, double butted, 30 mm rise, 780 mm, 31.8 mm
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Crankset
SRAM DESCENDANT 6K X-Sync, 32T, boost 170 mm on S/M, 175 mm on L/XL
Shifter
SRAM NX 1 x 11 speed
Bottom bracket
SRAM DUB Press Fit BB92
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
2019 META Trail 27.5 130 mm travel
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe RT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320
Model
RS-DLX-RT-B1
Name
Deluxe RT
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Wheels
Rims
WTB STP i25, 32 holes, tubeless ready, 25 mm inner width
Tires
MAXXIS DHF, 27.5" x 2.5" WT, EXO, front, MAXXIS Aggressor, 27.5" x 2.5" WT, EXO rear
Rear hub
FORMULA, 32 holes, Sealed bearings
Front hub
FORMULA, 32 holes, Sealed bearings

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
490,0
520,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
580,0
607,0
627,3
658,8
d
Head tube length
110,0
115,0
120,0
125,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
109,0
109,0
109,0
109,0
h
Wheelbase
1144,0
1166,0
1193,0
1225,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
k
Stack height
593,0
598,0
602,5
607,1
l
Reach
415,0
435,0
460,0
490,0
m
Standover height
680,0
690,0
700,0
735,0
x
Bottom bracket height
330,0
330,0
330,0
330,0
y
Front center
708,0
730,0
757,0
789,0
