Commençal META TRAIL V4.2 RACE 2018

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,4 kg
Front travel
140mm
Rear travel
130mm

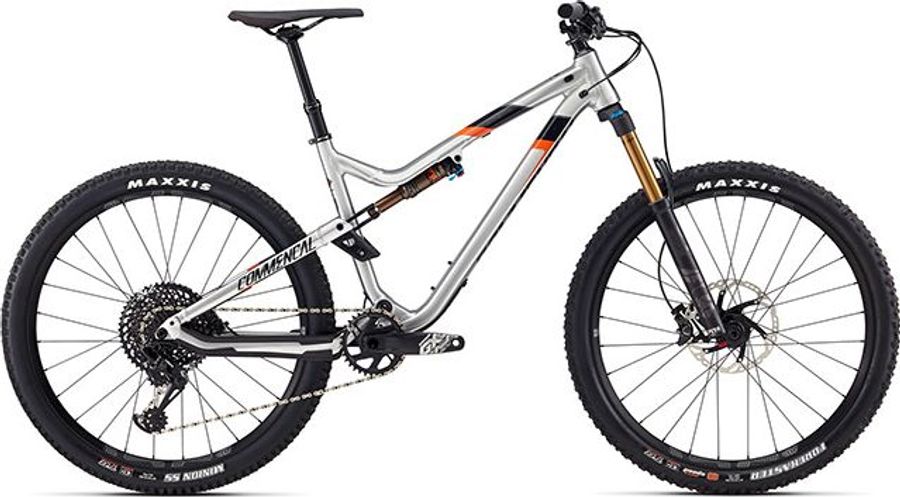

Commençal META TRAIL V4.2 RACE 2018

About the Commençal META TRAIL V4.2 RACE 2018

The Commençal META TRAIL V4.2 RACE 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain. Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,4 kg.

Features

The Commençal META TRAIL V4.2 RACE 2018 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
RIDE ALPHA, ergonomic grips, alloy one lock, super soft compound
Components
Steam
RIDE ALPHA, aluminium 2014, 50 mm, 31.8 mm, 0° angle
Saddle
RIDE ALPHA SuperLight foam, Ti-Alloy rails
Headset
RIDE ALPHA ZS44 / ZS56
Seatpost
KS LEV INTEGRA, 31,6 mm, 100 mm travel on S, 125 mm on M and 150 mm on L/XL, southpaw alloy lever
Handlebar
RIDE ALPHA, Alloy 7075, double butted, 30 mm rise, 780 mm, 31.8 mm
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
SRAM GX EAGLE X-Sync, 34T, boost 170 mm on S/M, 175 mm on L/XL
Shifter
SRAM GX EAGLE 1 x 12 speed
Bottom bracket
SRAM GXP Press Fit BB92
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
2018 META TR V4.2 650B 130 mm travel
Rear suspension
Fox Float Factory
Front suspension
Fox 34 Float Factory
Wheels
Rims
E13 TRS, 28 holes, tubeless ready, 30mm inner width, Boost 12 X 148 & 15 X 110, XD driver
Tires
MAXXIS FOREKASTER 650 x 2.35 EXO/TR front and MAXXIS MINION SS 650 x 2.3 EXO/TR rear

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
440,0
490,0
520,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
580,0
607,0
627,3
658,8
d
Head tube length
110,0
115,0
120,0
125,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
109,0
109,0
109,0
109,0
h
Wheelbase
1144,0
1166,0
1193,0
1225,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
k
Stack height
593,0
598,0
602,5
607,1
l
Reach
415,0
435,0
460,0
490,0
m
Standover height
680,0
690,0
700,0
735,0
x
Bottom bracket height
330,0
330,0
330,0
330,0
y
Front center
708,0
730,0
757,0
789,0
