Commençal SUPREME DH 27 TEAM 2020

MTB Downhill
Groupset
SRAM GX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
16,5 kg
Front travel
200mm
Rear travel
200mm

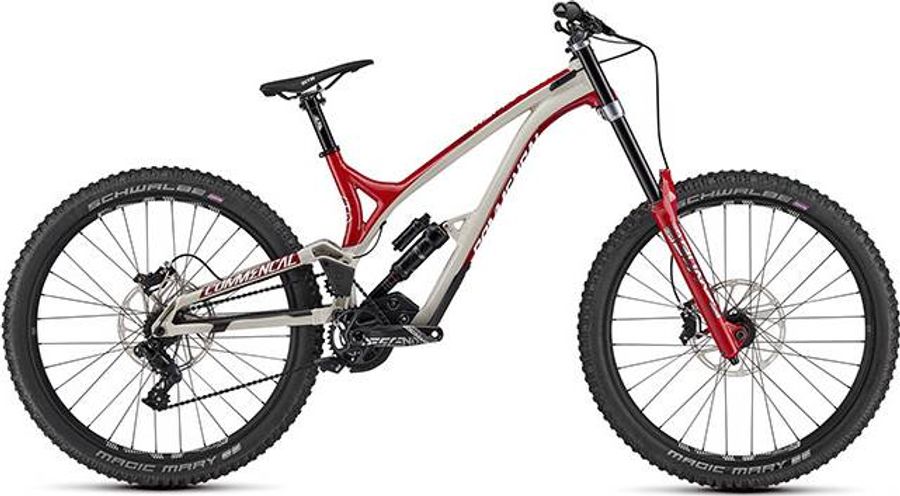

Commençal SUPREME DH 27 TEAM 2020

About the Commençal SUPREME DH 27 TEAM 2020

The Commençal SUPREME DH 27 TEAM 2020 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 7 gears (1x7). Its features include boost 110 , hydraulic disc brakes, and tubeless ready. The bike weighs approximately 16,5 kg.

Features

The Commençal SUPREME DH 27 TEAM 2020 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
RIDE ALPHA, DH Grips, black, Ultra soft compound, single clamp
Components
Steam
RIDE ALPHA DH, 40 mm, 31,8 mm, direct mount, 0° angle, 6061 alloy
Saddle
WTB High Tail Pro, 128 mm width, Cromoly rails
Headset
ACROS Alloy cups ZS56/ZS56, ZS56/ZS56, sealed bearings
Seatpost
RIDE ALPHA DH, 31.6 mm, no offset, ultra light, 300 mm
Handlebar
RIDE ALPHA, 27 mm rise, 780 mm, 31,8 mm, 7050 alloy, double butted
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM Descendant DH, 165 mm, 34t chainring, DUB
Shifter
SRAM GX DH, 7 sp
Chain guide
E13 LG1 Plus Wide Guide, ISCG05, 28-34t
Bottom bracket
SRAM DUB Pressfit, 107 mm
Rear derailleur
SRAM GX DH 7s
Cable pull ratio
Exact actuation
Cage
Medium
Cage material
Aluminum
Color
Black
Max tooth
28
Model
RD-GX-1DH-A3
Name
GX DH 1x X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
7s
Cassette
SRAM GX DH
Chain
KMC X11
Frameset
Frame
NEW 2020 SUPREME DH 27.5", 200 mm travel, 27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Rear suspension
RockShox Super Deluxe Ultimate DH
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RC
Eye to eye stroke
225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-ULDH-B2
Name
Super Deluxe Ultimate DH
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
485g (250x75, 2 tokens, MM tune, standard/standard)
Front suspension
RockShox Boxxer Ultimate DebonAir 2565 g
Color
BoXXer Red, Gloss Black
Damper type
Charger 2.1 RC2
fork offset
36mm (27.5"), 46mm (27.5"), 46mm (29"), 56mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
200mm
Model
FS-BXR-ULT-C2
Name
BoXXer Ultimate
Spring
DebonAir
Travel (mm)
180mm, 190mm, 200mm
Upper tube type
35mm straight wall aluminum
Weight based on
27.5" BOOST, 200mm, Maxle Stealth, Short Crown
Weight
2565
Wheel size
27.5", 29"
Wheels
Rims
E13 LG1 Plus DH Complete Wheelset, 32 holes, 30 mm inner width, tubeless ready
Tires
SCHWALBE Magic Mary, 27.5 x 2.35, front / SCHWALBE Magic Mary, 27.5 x 2.35, rear, DH casing, Addix Soft compound, front / DH casing, Addix Soft compound, rear
Rear hub
E13 LG1 Plus DH Complete Wheelset, 32 holes, 6 bolts, Boost 20 x 110 mm front, 12 x 150 mm rear
Front hub
E13 LG1 Plus DH Complete Wheelset, 32 holes, 6 bolts, Boost 20 x 110 mm front, 12 x 150 mm rear

Geometry

Size SM MD LG
a
Seat tube length
400,0
400,0
400,0
b
Seat tube angle
66,5º
66,5º
66,5º
c
Top tube length
594,0
614,0
629,0
d
Head tube length
112,0
112,0
112,0
e
Head tube angle
63,5º
63,5º
63,5º
f
Rake
49,0
49,0
49,0
g
Trail
132,0
132,0
132,0
h
Wheelbase
1225,0
1245,0
1270,0
i
Chainstay length
430,0
430,0
430,0
j
Bottom bracket drop
5,0
5,0
5,0
k
Stack height
617,2
617,2
617,2
l
Reach
435,0
455,0
480,0
m
Standover height
-
-
-
x
Bottom bracket height
369,0
369,0
369,0
y
Front center
795,0
815,0
840,0
