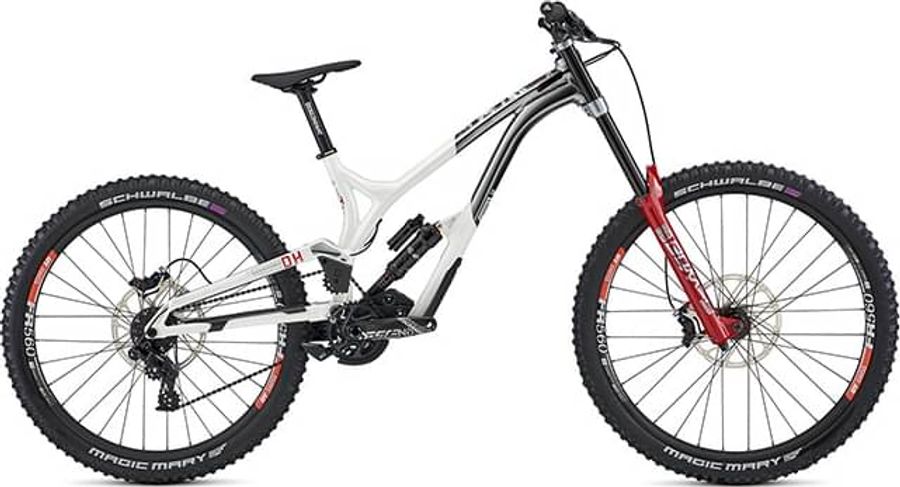

Commençal SUPREME DH 29 / 27 TEAM 2021

MTB Downhill
Groupset
SRAM GX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
16,7 kg
Front travel
200mm
Rear travel
200mm
Commençal SUPREME DH 29 / 27 TEAM 2021

About the Commençal SUPREME DH 29 / 27 TEAM 2021

The Commençal SUPREME DH 29 / 27 TEAM 2021 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 7 gears (1x7). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 16,7 kg.

Features

The Commençal SUPREME DH 29 / 27 TEAM 2021 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
RIDE ALPHA DH, Ultra-soft compound, single clamp, black
Components
Steam
TRUVATIV Descendant DH 35 mm, 50 mm extension, direct mount, 35mm, Boxxer Gray
Saddle
FIZIK Alpaca Gravita X5, MG rails, flexible "wings"
Headset
ACROS ZS56 / ZS56, Alloy cups, sealed bearings
Seatpost
TRUVATIV Descendant DH, 31.6 mm, 250 mm, Alloy 7050
Handlebar
TRUVATIV Descendant DH 35 mm, 35 mm, 800 mm width, 25 mm rise, Alloy 7050
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
TRUVATIV Descendant DH, 165 mm crank arms, DUB, Chainring: TRUVATIV Descendant DH X-Sync, 34t
Shifter
SRAM GX DH, 7 sp
Chain guide
E13 LG1 + Bottom Guide, 28-34t
Bottom bracket
SRAM DUB, Pressfit
Rear derailleur
SRAM GX DH 7s
Cable pull ratio
Exact actuation
Cage
Medium
Cage material
Aluminum
Color
Black
Max tooth
28
Model
RD-GX-1DH-A3
Name
GX DH 1x X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
7s
Cassette
SRAM GX DH
Chain
KMC X11
Frameset
Frame
2021 Supreme DH 27/29, 200 mm travel, 27/29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Rear suspension
RockShox Super Deluxe Ultimate DH
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RC
Eye to eye stroke
225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-ULDH-B2
Name
Super Deluxe Ultimate DH
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
485g (250x75, 2 tokens, MM tune, standard/standard)
Front suspension
RockShox Boxxer Ultimate DebonAir 2565 g
Color
BoXXer Red, Gloss Black
Damper type
Charger 2.1 RC2
fork offset
36mm (27.5"), 46mm (27.5"), 46mm (29"), 56mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
200mm
Model
FS-BXR-ULT-C2
Name
BoXXer Ultimate
Spring
DebonAir
Travel (mm)
180mm, 190mm, 200mm
Upper tube type
35mm straight wall aluminum
Weight based on
27.5" BOOST, 200mm, Maxle Stealth, Short Crown
Weight
2565
Wheel size
27.5", 29"
Wheels
Rims
DT SWISS FR560, 29''/27.5", 32h, 30 mm inner width
Tires
Rear: SCHWALBE Magic Mary - Front: SCHWALBE Magic Mary, Rear: 27.5"x2.4", Super DH, Addix Ultra Soft - Front: 29"x2.4", Super DH, Addix Ultra Soft
Rear hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear:32h, sealed bearings, 12 x 150 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
Front hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear:32h, sealed bearings, 12 x 150 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
400,0
400,0
400,0
b
Seat tube angle
67,0º
67,0º
67,0º
67,0º
c
Top tube length
593,0
612,0
638,0
660,0
d
Head tube length
112,0
112,0
112,0
112,0
e
Head tube angle
63,5º
63,0º
62,5º
62,5º
f
Rake
59,0
58,0
56,0
56,0
g
Trail
121,0
126,0
132,0
132,0
h
Wheelbase
1256,0
1290,0
1320,0
1345,0
i
Chainstay length
448,0
456,0
456,0
456,0
j
Bottom bracket drop
9,0
4,0
4,0
4,0
k
Stack height
624,0
620,0
620,0
620,0
l
Reach
435,0
455,0
480,0
505,0
m
Standover height
-
-
-
-
x
Bottom bracket height
365,0
370,0
370,0
370,0
y
Front center
808,0
834,0
864,0
889,0
