Commençal SUPREME DH 29 WORLDS EDITION 2020

MTB Downhill
Groupset
SRAM X01
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
17,2 kg
Front travel
200mm
Rear travel
200mm

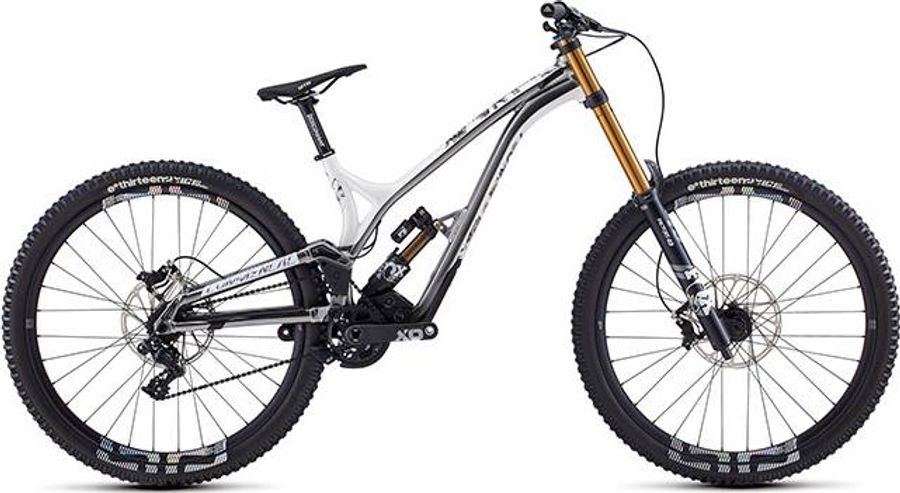

Commençal SUPREME DH 29 WORLDS EDITION 2020

About the Commençal SUPREME DH 29 WORLDS EDITION 2020

The Commençal SUPREME DH 29 WORLDS EDITION 2020 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM X01 drivetrain of 7 gears (1x7). Its features include boost 110 , hydraulic disc brakes, and tubeless ready. The bike weighs approximately 17,2 kg.

Features

The Commençal SUPREME DH 29 WORLDS EDITION 2020 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
RIDE ALPHA, DH Grips, black, Ultra soft compound, single clamp
Components
Steam
TRUVATIV Descendant DH, 50 mm, 35 mm, direct mount, 0° angle, Boxxer Gray, 7075 alloy
Saddle
WTB High Tail Pro, 128 mm width, Cromoly rails
Headset
ACROS Alloy cups ZS56/ZS56, ZS56/ZS56, sealed bearings
Seatpost
TRUVATIV Descendant DH, 31.6 mm, 350 mm, alloy 7050
Handlebar
TRUVATIV Descendant DH, 25 mm rise, 800 mm, 35 mm, 7050 alloy, double butted
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM XO1 DH, 165 mm, 34t chainring, DUB
Cassette
E13 LG1 DH Plus, 7 sp, 9-21t
Shifter
SRAM GX DH, 7 sp
Chain guide
E13 LG1 Plus Wide Guide, ISCG05, 28-34t
Bottom bracket
SRAM DUB Pressfit, 107 mm
Rear derailleur
SRAM X01 DH 10s, 7s
Cable pull ratio
Exact actuation
Cage
Medium, Short
Cage material
Aluminum
Color
Black, Red
Max tooth
26, 28
Model
RD-X0-1DH-A2
Name
X01 DH X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
10s, 7s
Chain
KMC X11
Frameset
Frame
NEW 2020 SUPREME DH 29", 200 mm travel, 29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Rear suspension
Fox Float X2 Factory
Front suspension
Fox 49 Factory
Wheels
Rims
E13 LG1 DH Race Carbon Complete Wheelset, 32 holes, 30 mm inner width, tubeless ready
Tires
E13 LG1 DH All Terrain Race, 29 x 2.35, front / E13 LG1 DH All Terrain Race, 29 x 2.35, rear, Dual Ply casing, 72 TPI, MoPo compound, TR, front / Dual Ply casing, 72 TPI, MoPo compound, TR, rear
Rear hub
E13 LG1 DH Race Carbon Complete Wheelset, 32 holes, 6 bolts, Boost 20 x 110 mm front, 12 x 150 mm rear
Front hub
E13 LG1 DH Race Carbon Complete Wheelset, 32 holes, 6 bolts, Boost 20 x 110 mm front, 12 x 150 mm rear

Geometry

Size MD LG XL
a
Seat tube length
400,0
400,0
400,0
b
Seat tube angle
66,5º
66,5º
66,5º
c
Top tube length
618,0
643,0
663,0
d
Head tube length
112,0
112,0
112,0
e
Head tube angle
63,8º
63,8º
63,5º
f
Rake
63,0
63,0
60,0
g
Trail
114,0
114,0
120,0
h
Wheelbase
1252,0
1277,0
1297,0
i
Chainstay length
430,0
430,0
430,0
j
Bottom bracket drop
11,5
11,5
11,5
k
Stack height
614,0
614,0
614,0
l
Reach
455,0
480,0
500,0
m
Standover height
-
-
-
x
Bottom bracket height
363,0
363,0
363,0
y
Front center
822,0
847,0
867,0
