Groupset
SRAM GX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
17,7 kg
Front travel
203mm
Rear travel
200mm

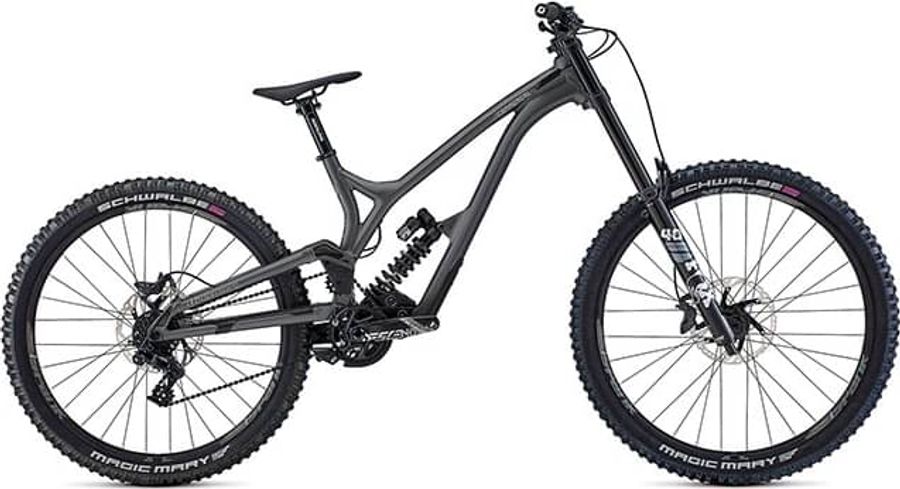

About the Commençal SUPREME DH 29/27 RACE 2022
The Commençal SUPREME DH 29/27 RACE 2022 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 7 gears (1x7). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 17,7 kg.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
Grip
|
ODI
|
---|
Steam
|
RIDE ALPHA DH 40, 40 mm extension, direct mount, 31.8 mm
|
---|---|
Saddle
|
FIZIK Alpaca Gravita X5, MG rails, flexible "wings"
|
Headset
|
ACROS ZS56 / ZS56, Alloy cups, sealed bearings
|
Seatpost
|
RIDE ALPHA Super Light, 31.6 mm, 250 mm, Alloy 7075
|
Handlebar
|
RIDE ALPHA R27, 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061
|
Brakes
|
Hayes Dominion A4
|
Crankset
|
TRUVATIV Descendant DH, 165 mm crank arms, DUB, Chainring: TRUVATIV Descendant DH X-Sync, 34t
|
---|---|
Shifter
|
SRAM GX DH, 7 sp
|
Chain guide
|
E13 LG1 + Bottom Guide, 28-34t
|
Bottom bracket
|
SRAM DUB, Pressfit
|
Rear derailleur
|
SRAM GX DH
7s
|
|
|
Cassette
|
SRAM GX DH
|
Chain
|
KMC X11
|
Frame
|
Supreme DH 29/27, 200 mm travel, 27/29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
|
---|---|
Rear suspension
|
Fox DHX2 Performance Elite
|
Front suspension
|
Fox 40 Performance
|
Rims
|
SPANK 359, 29'' / 27.5", 32h, 30 mm inner width
|
---|---|
Tires
|
Rear: SCHWALBE Magic Mary - Front: SCHWALBE Magic Mary, Rear: 27.5" x 2.4", Super DH, Addix Ultra Soft - Front: 29" x 2.4", Super DH, Addix Ultra Soft
|
Rear hub
|
Rear: FORMULA DHG-150 - Front: FORMULA DHL-93, Rear: 32h, sealed bearings - Front: 32h, sealed bearings
|
Front hub
|
Rear: FORMULA DHG-150 - Front: FORMULA DHL-93, Rear: 32h, sealed bearings - Front: 32h, sealed bearings
|
Geometry
Size | SM | MD | LG | XL |
---|---|---|---|---|
a
Seat tube length
|
400,0
|
400,0
|
400,0
|
400,0
|
b
Seat tube angle
|
65,5º
|
65,5º
|
65,5º
|
66,5º
|
c
Top tube length
|
596,0
|
614,0
|
645,0
|
665,0
|
d
Head tube length
|
112,0
|
112,0
|
112,0
|
112,0
|
e
Head tube angle
|
62,7º
|
62,2º
|
62,2º
|
63,8º
|
f
Rake
|
51,0
|
51,0
|
49,0
|
56,0
|
g
Trail
|
136,0
|
140,0
|
142,0
|
122,0
|
h
Wheelbase
|
1256,0
|
1290,0
|
1320,0
|
1301,0
|
i
Chainstay length
|
448,0
|
456,0
|
456,0
|
433,0
|
j
Bottom bracket drop
|
3,0
|
2,0
|
2,0
|
11,5
|
k
Stack height
|
634,0
|
631,0
|
631,0
|
632,0
|
l
Reach
|
425,0
|
445,0
|
477,0
|
500,0
|
m
Standover height
|
-
|
-
|
-
|
-
|
x
Bottom bracket height
|
371,0
|
372,0
|
372,0
|
363,0
|
y
Front center
|
808,0
|
834,0
|
864,0
|
868,0
|
